Power Seat Control System - Diagnosis
>>
Terminals Of Ecu
>>
Driver's Power Seat Control Switch
Driver's Power Seat Control Switch

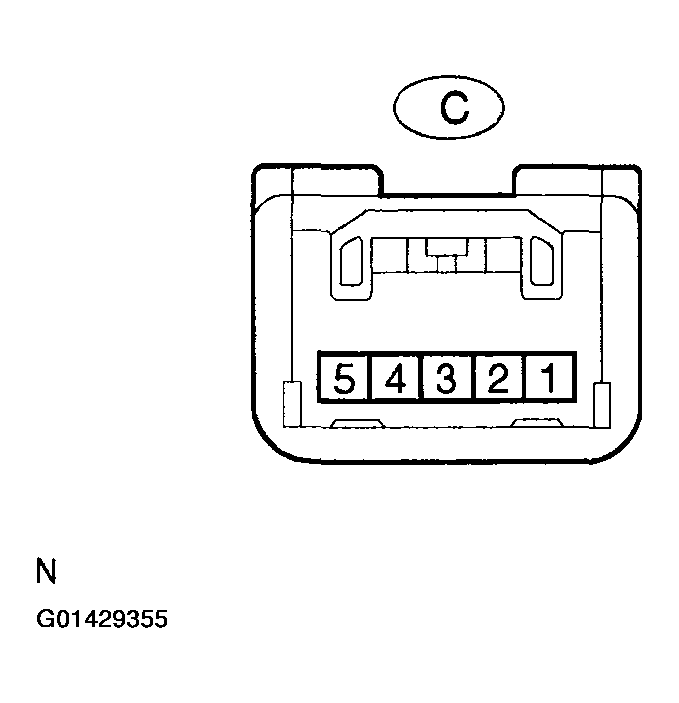

Fig 1: Identifying Driver'S Power Seat Control Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

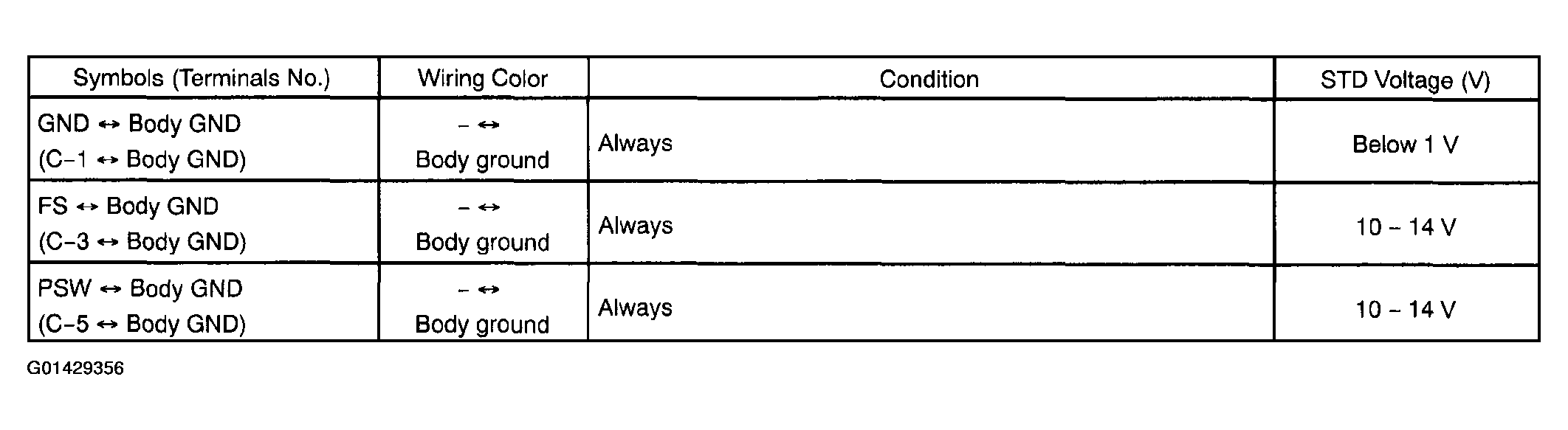

Fig 2: Driver'S Power Seat Control Switch Terminals Description
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
