Standard Bolt; How To Determine Bolt Strength: Notes

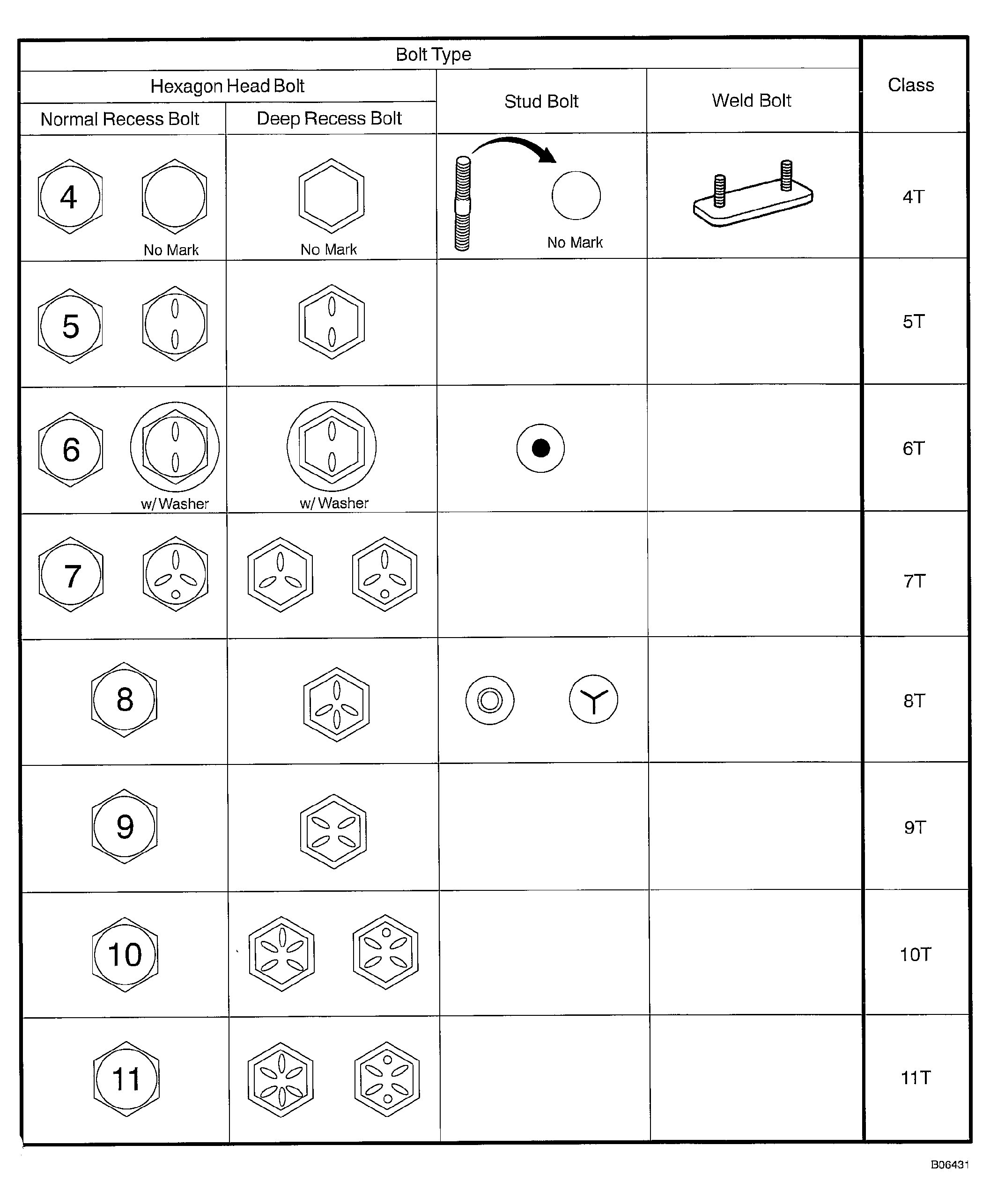

Fig 1: Standard Bolt - How To Determine Bolt Strength

G04072401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
