Home >> Lexus >> 2004 >> LS 430 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Seat Belt Warning System >> System Diagram

System Diagram

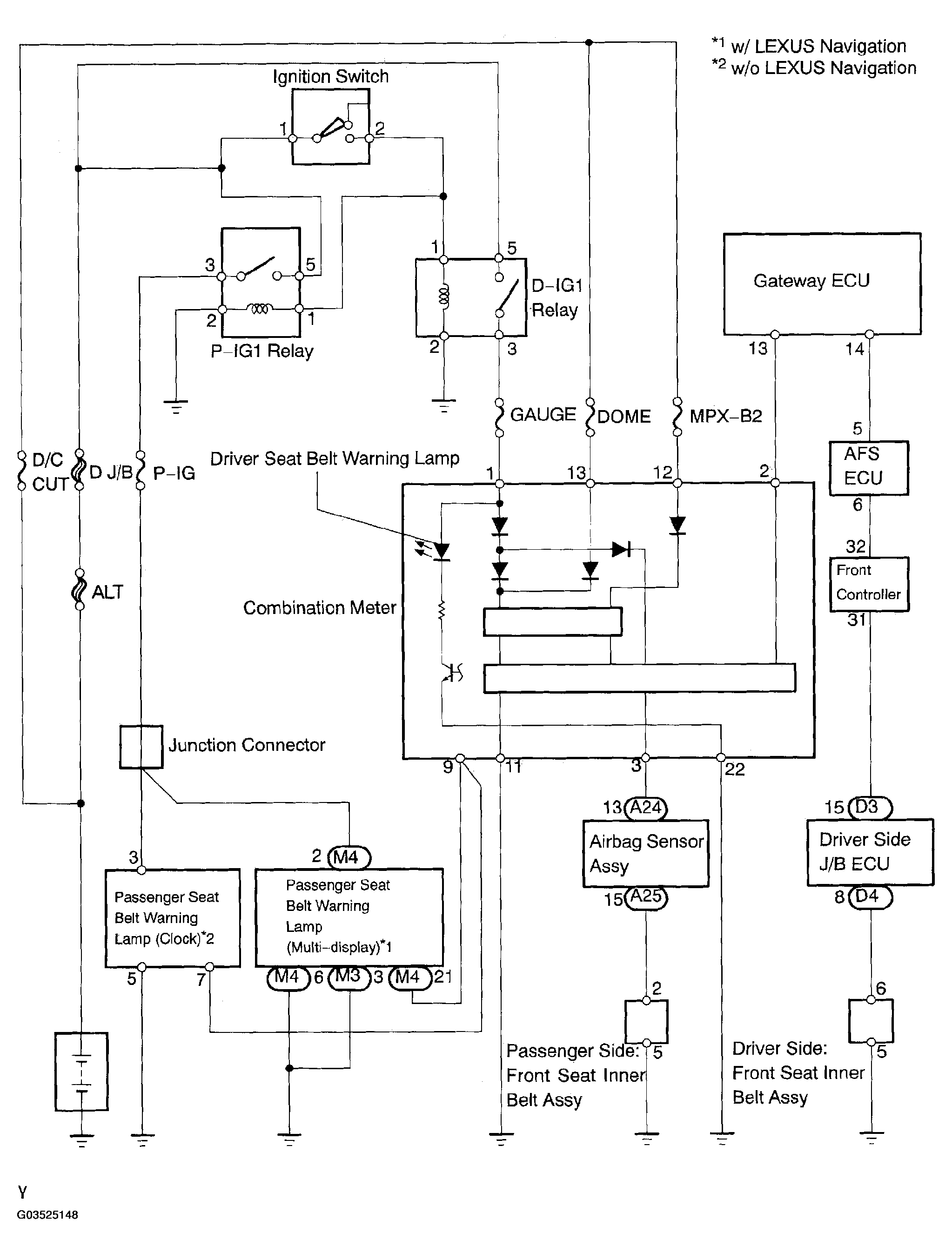

Fig 1: Seat Belt Warning System Circuit Diagram

G03525148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
