Seat Belt Warning System: Location

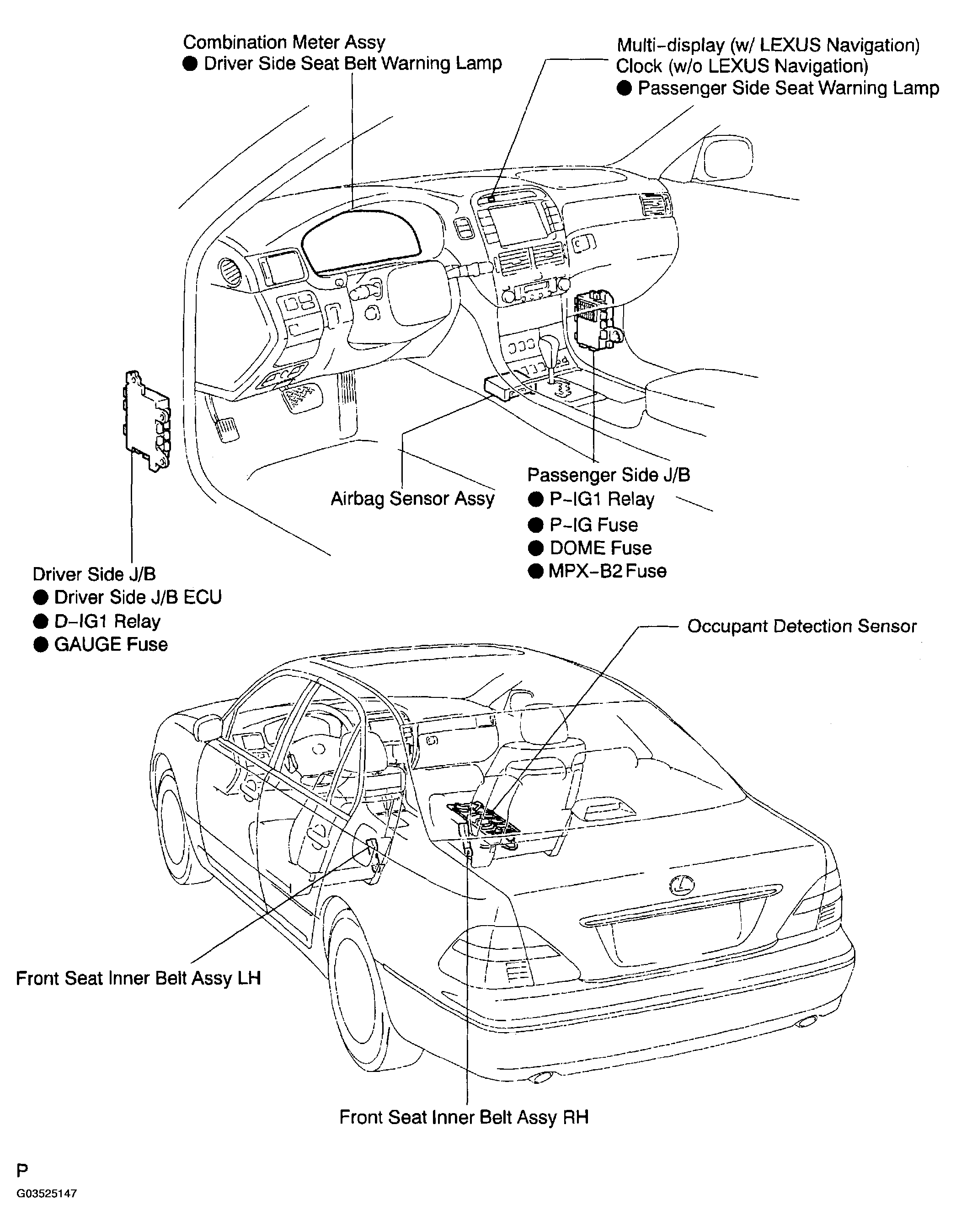

Fig 1: Locating Seat Belt Warning System Components Position

G03525147

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
