Power Window Regulator Switch Circuit On Rear LH: Wiring Diagram

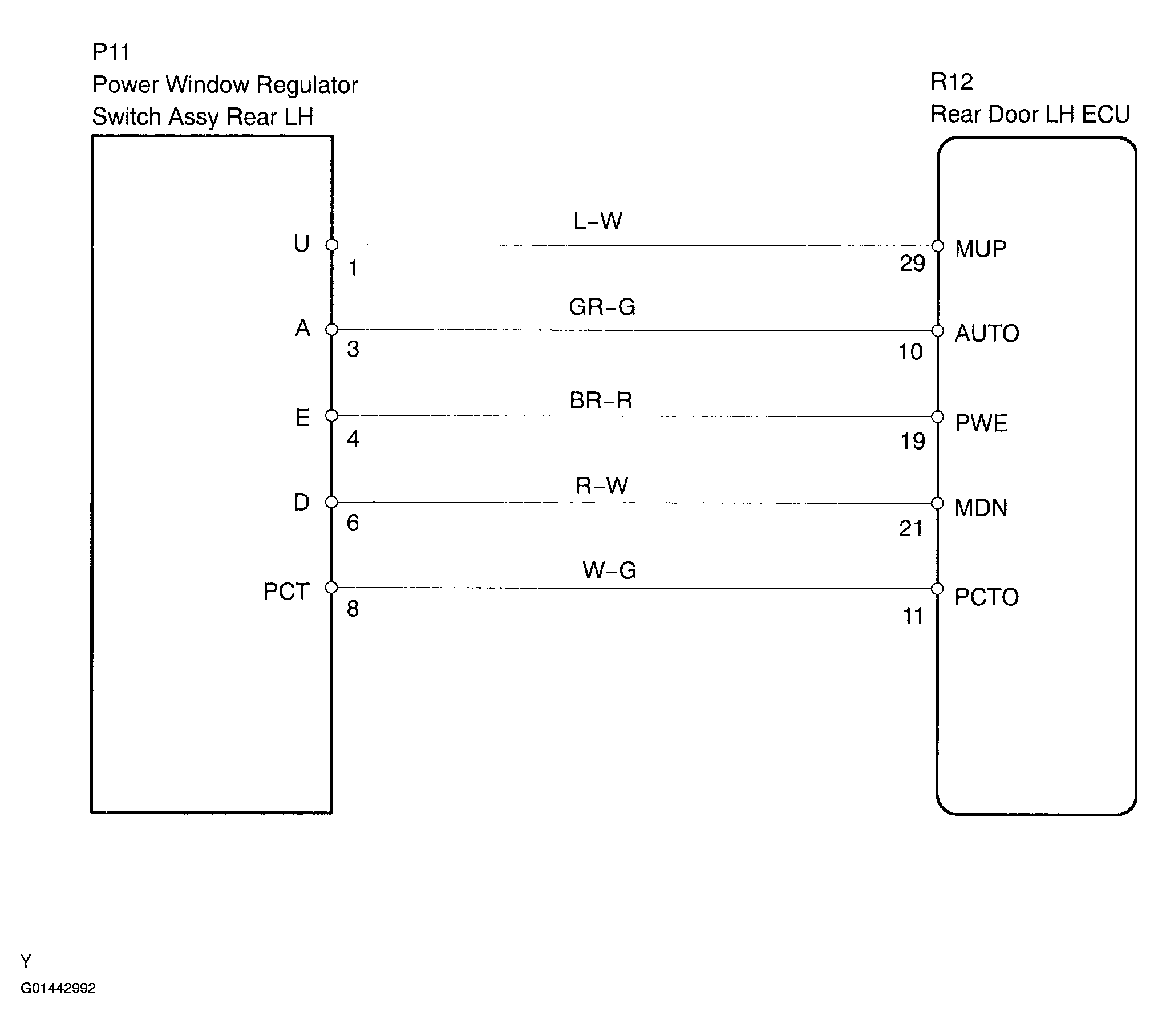

Fig 1: Power Window Regulator Switch Circuit On Rear LH - Wiring Diagram

G01442992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
