Home >> Lexus >> 2004 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System - Diagnosis >> Driver Door Ecu Power Source Circuit >> Wiring Diagram

Driver Door Ecu Power Source Circuit: Wiring Diagram

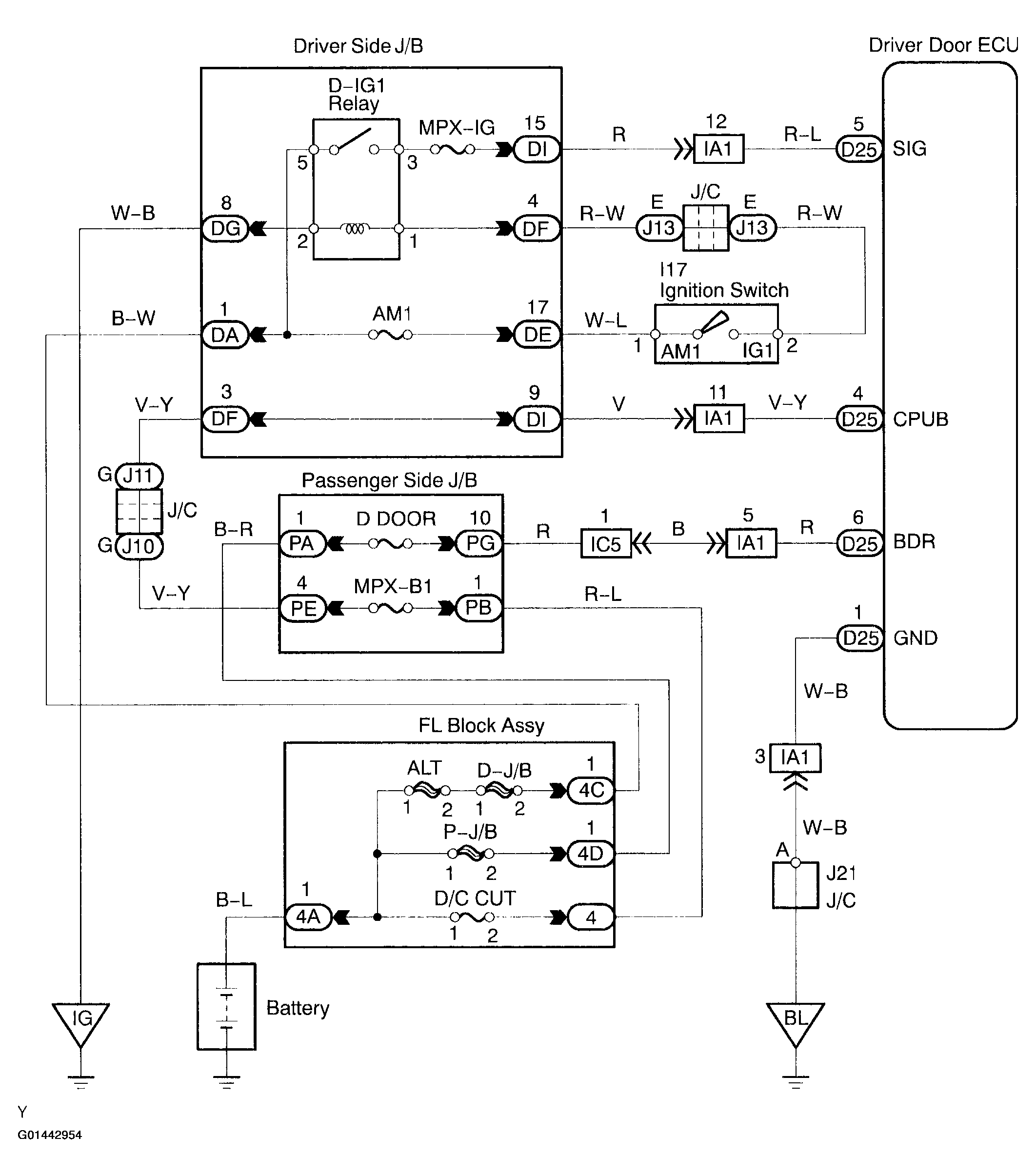

Fig 1: Driver Door ECU Power Source Circuit - Wiring Diagram

G01442954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
