Home >> Lexus >> 2004 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Power Seat Control System - Diagnosis >> Position Sensor Circuit >> Wiring Diagram

Position Sensor Circuit: Wiring Diagram

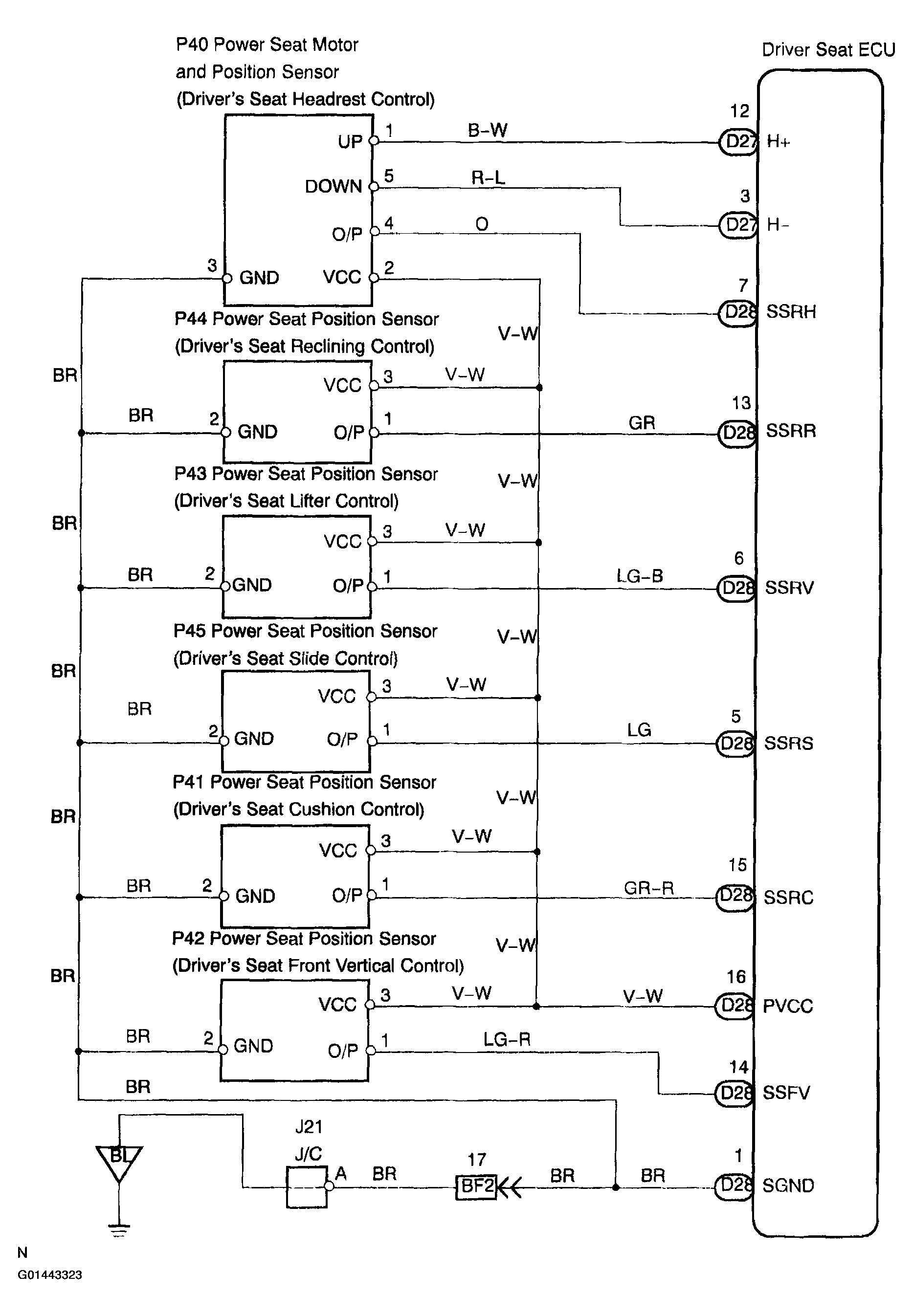

Fig 1: Position Sensor Circuit - Wiring Diagram

G01443323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
