Climate Control Does Not Operate (Blinking Pattern 4): Wiring Diagram

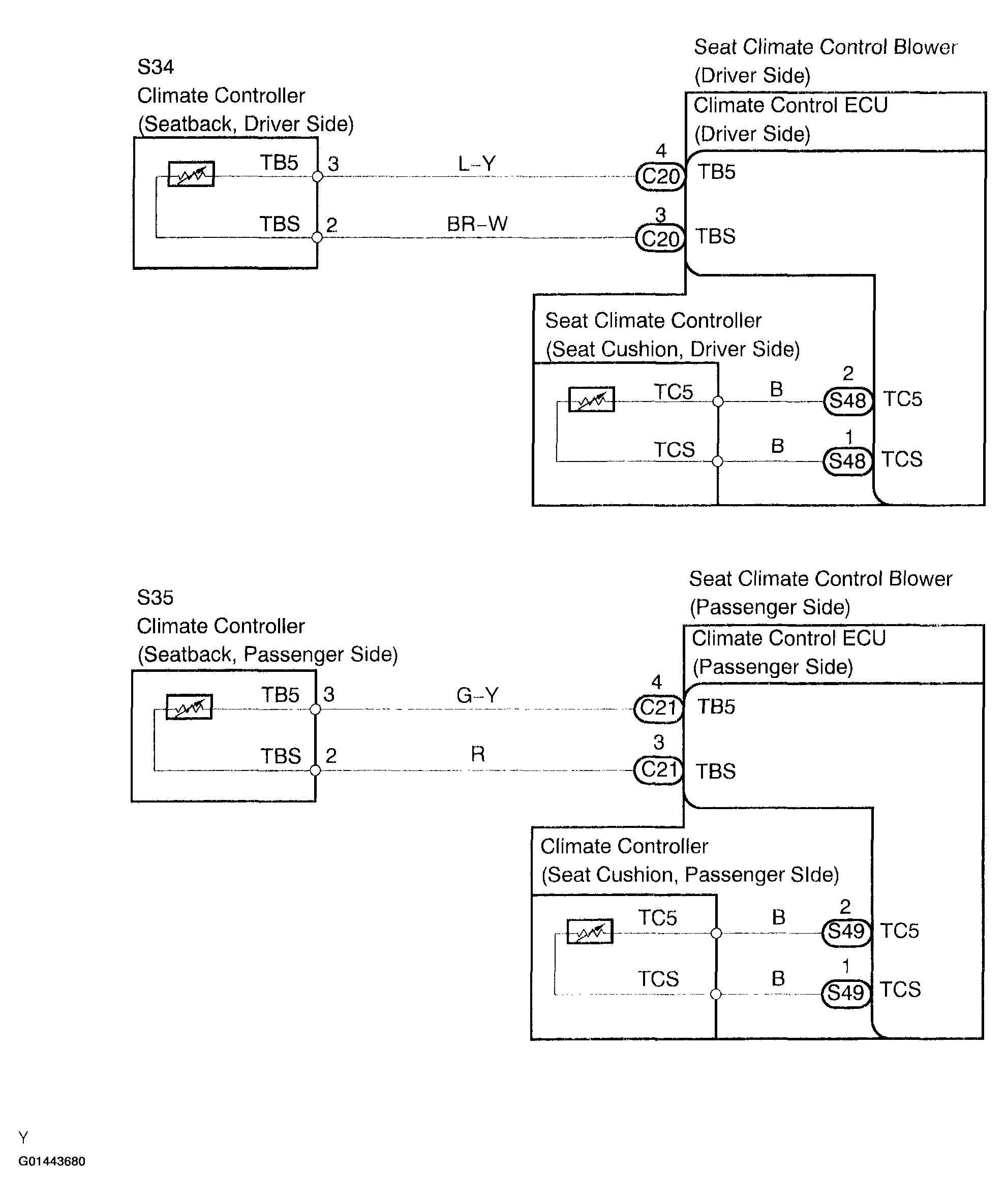

Fig 1: Climate Control Does Not Operate (Blinking Pattern 4) - Wiring Diagram (1 Of 2)
G01443680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

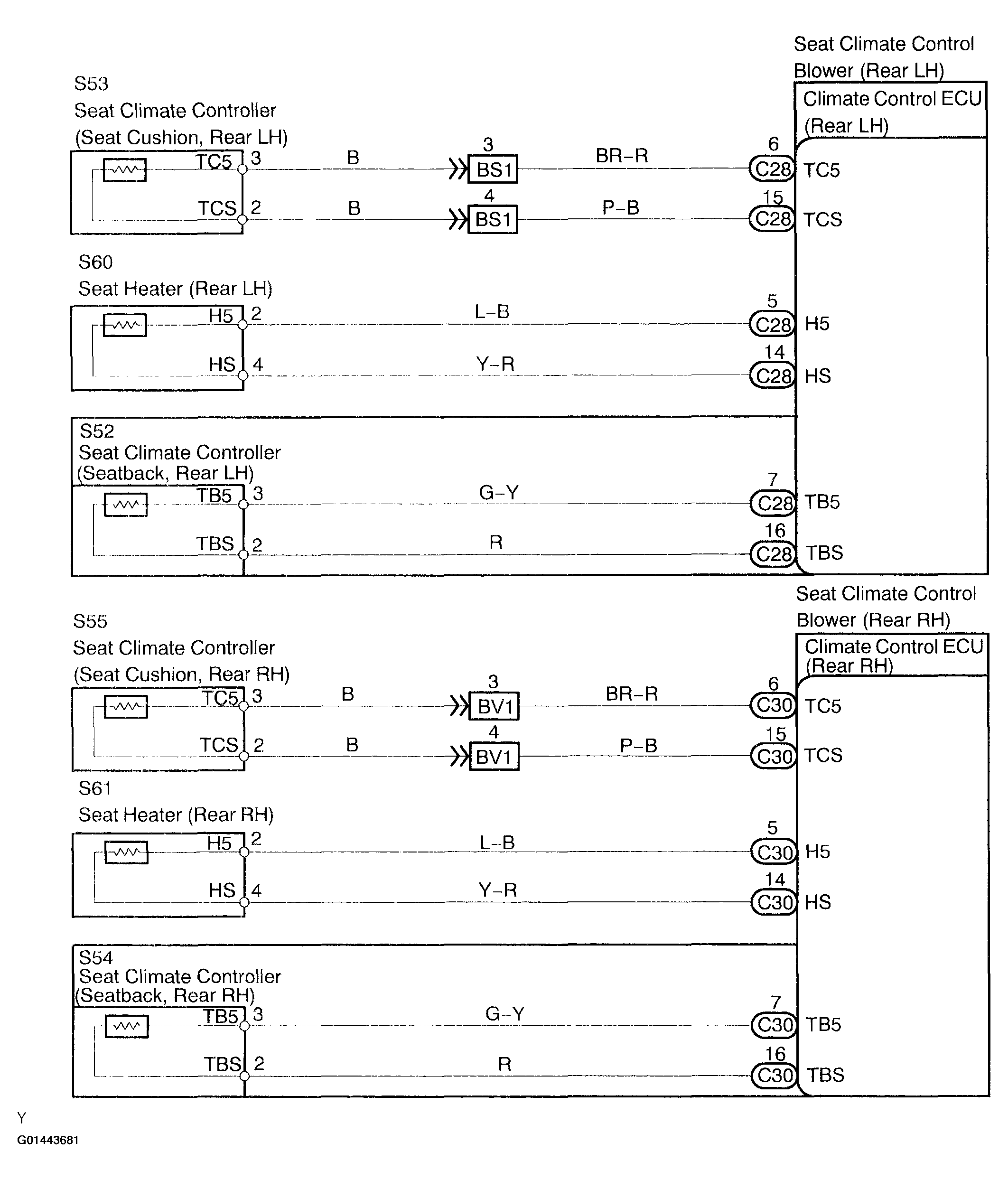

Fig 2: Climate Control Does Not Operate (Blinking Pattern 4) - Wiring Diagram (2 Of 2)
G01443681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
