Climate Control Does Not Operate (Blinking Pattern 1): Wiring Diagram

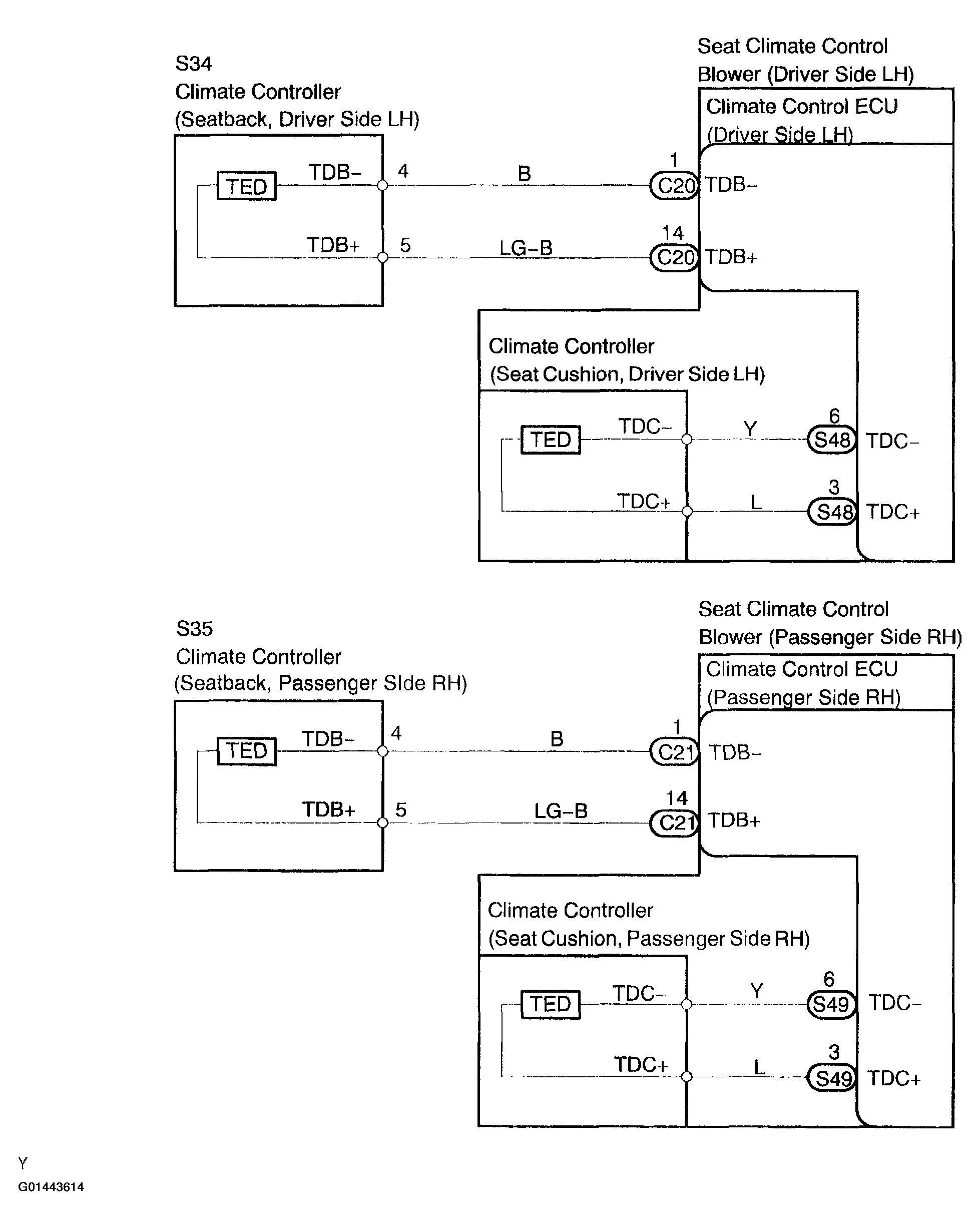

Fig 1: Climate Control Does Not Operate (Blinking Pattern 1) - Wiring Diagram (1 Of 3)
G01443614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

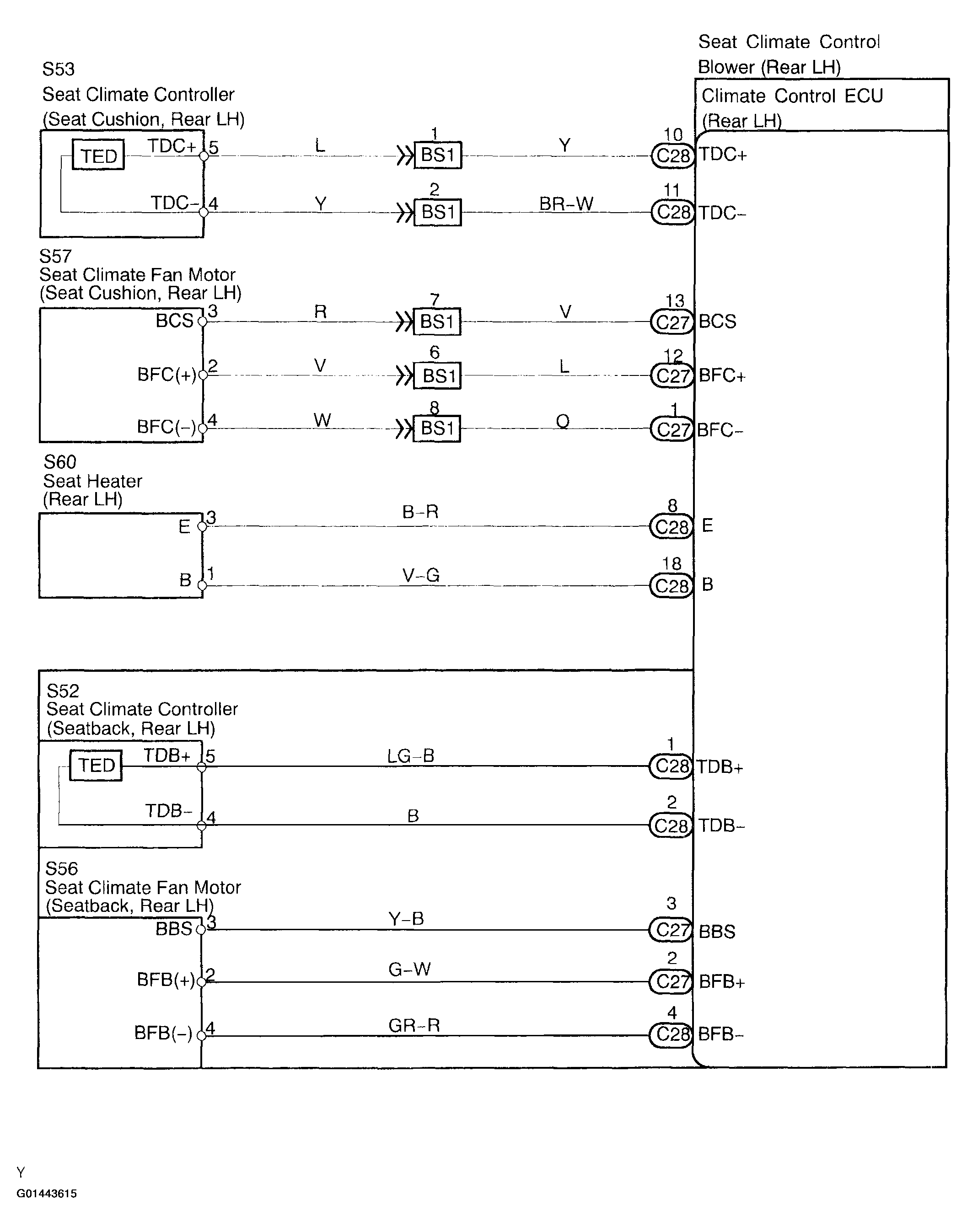

Fig 2: Climate Control Does Not Operate (Blinking Pattern 1) - Wiring Diagram (2 Of 3)
G01443615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

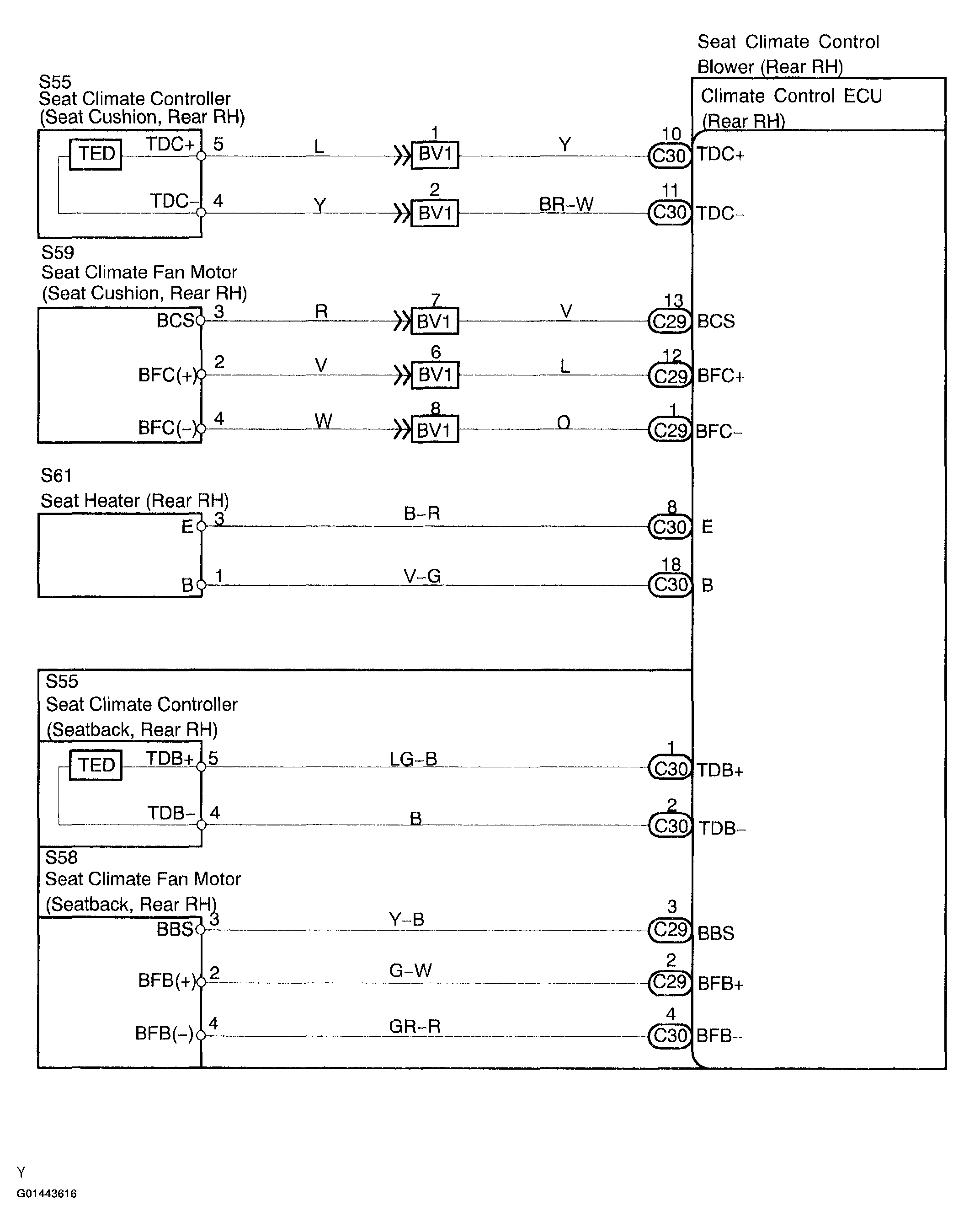

Fig 3: Climate Control Does Not Operate (Blinking Pattern 1) - Wiring Diagram (3 Of 3)
G01443616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
