Mirror Position Sensor Circuit (W/ Memory): Wiring Diagram

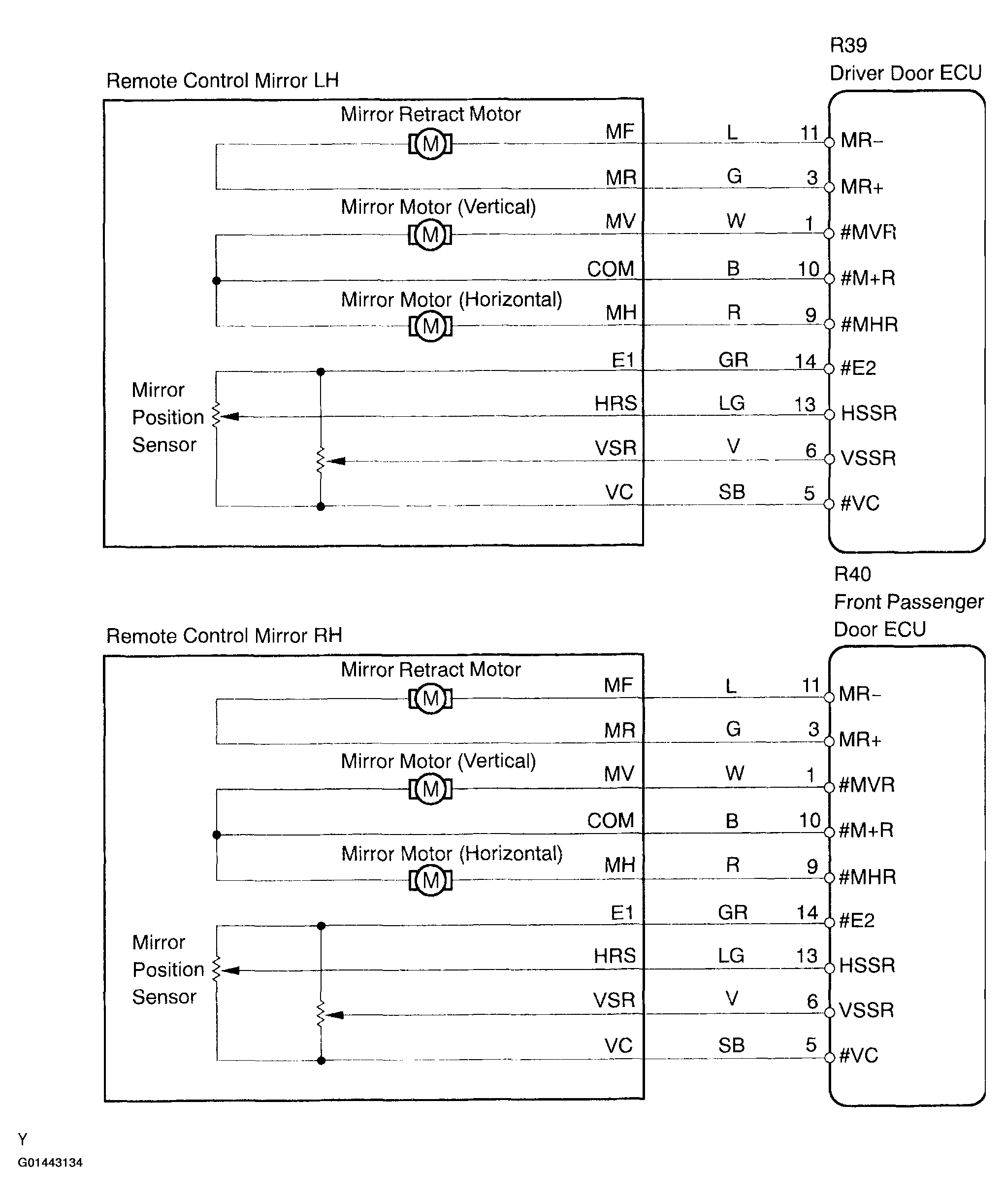

Fig 1: Mirror Position Sensor Circuit (W/ Memory) - Wiring Diagram

G01443134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
