Shift Lock Control Ecu Communication Circuit: Wiring Diagram

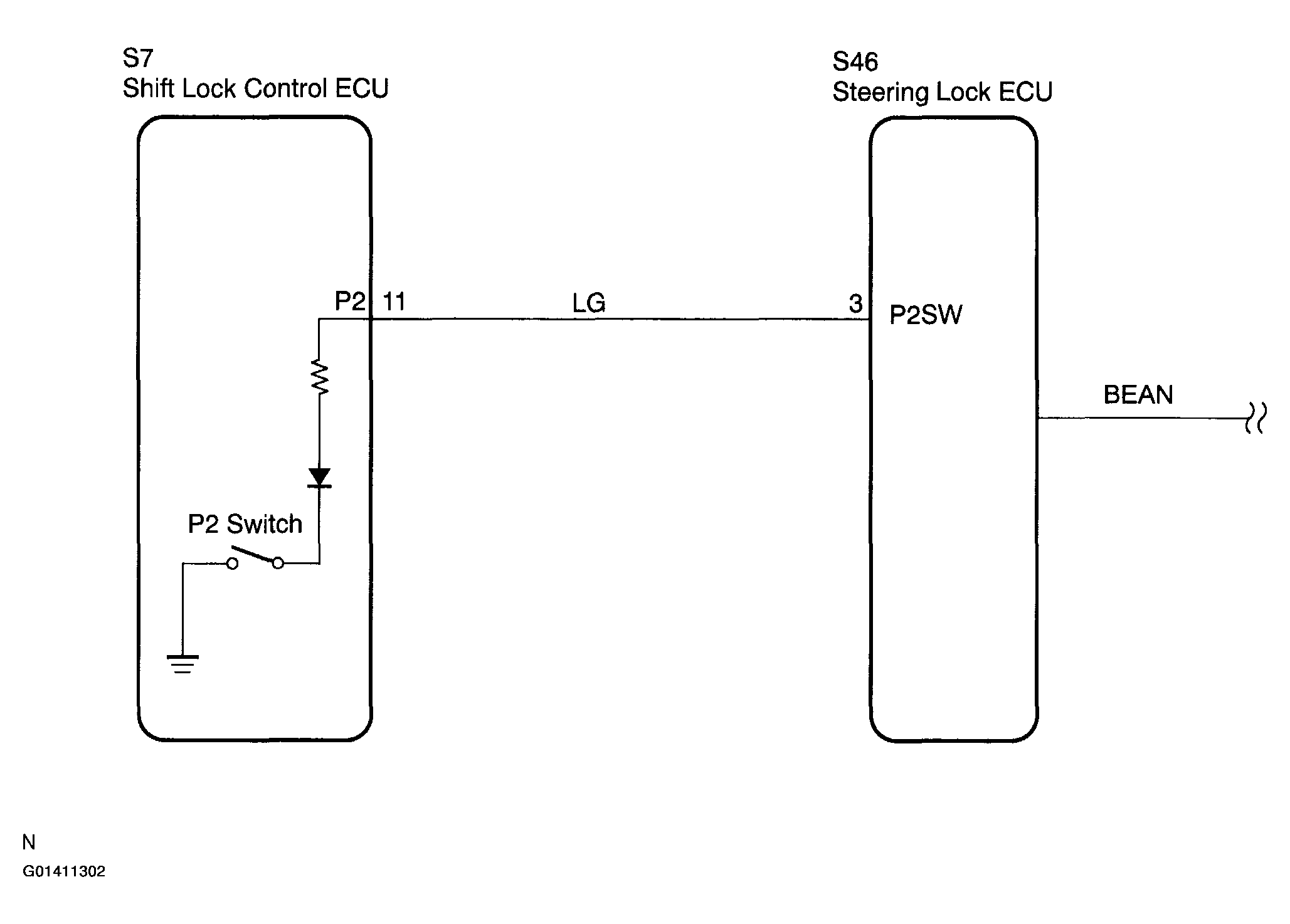

Fig 1: Shift Lock Control ECU Wiring Diagram

G01411302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
