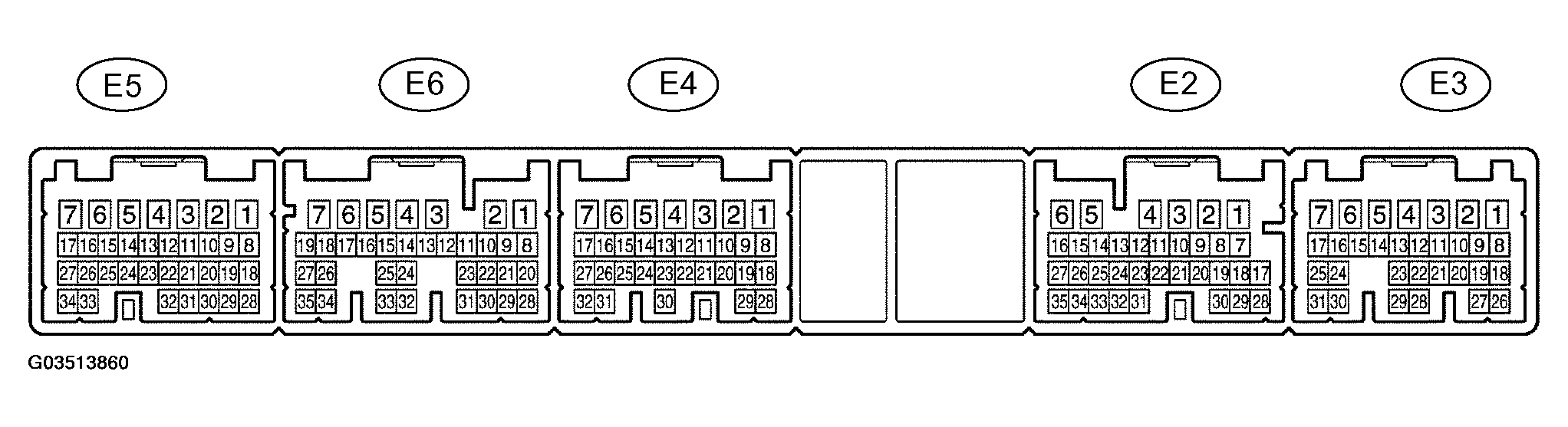

Terminals Of ECM
TERMINAL DESCRIPTION
| Symbols (Terminals No.) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| TC - E1 (E2-3 - E6-7) | P-B - BR | Ground | Ignition switch ON --> Connect terminals TC and CG of DLC3 |
10 to 14 V --> Below 1 V |
| STP - E1 (E2-4 - E6-7) | G-O - BR | Stop lamp signal | Ignition switch ON Depress brake pedal --> Release brake pedal |
10 to 14V --> Below 1 V |
| CCS - E1 (E2-31 - E6-7) | W-L - BR | Cruise control main switch circuit | Ignition switch ON CANCEL switch hold ON SET/COAST switch hold ON RES/ACC switch hold ON MAIN switch hold ON |
10 to 14 V 6.6 to 10.1 V 4.5 to 7.1 V 2.3 to 4.0 V Below 1 V |
| ST1- - E1 (E3-8 - E6-7) | V-Y - BR | Stop lamp signal | Ignition switch ON Depress brake pedal --> Release brake pedal |
Below 1 V --> 10 to 14 V |
