Compressor And Magnetic Clutch: Components

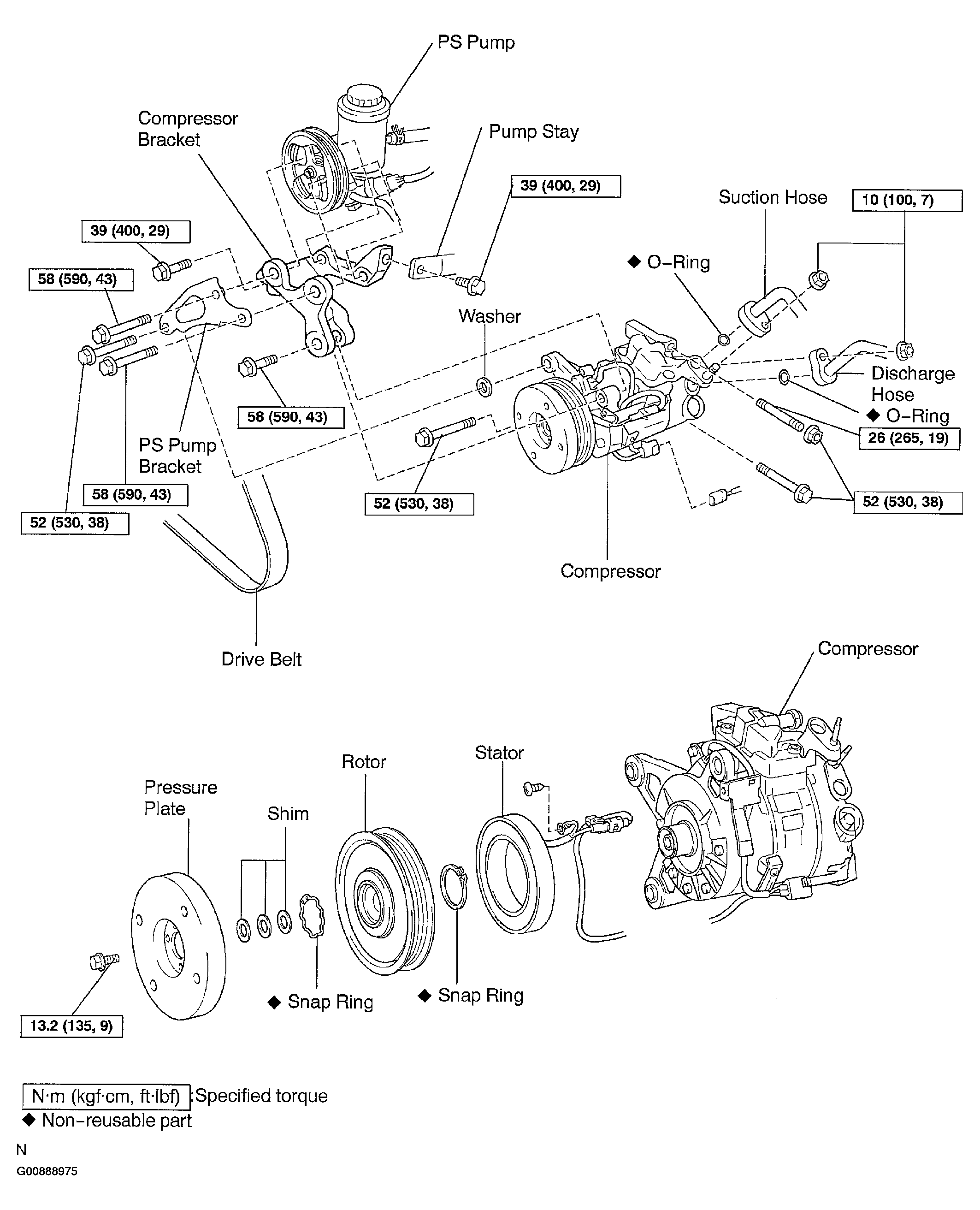

Fig 1: Identifying Compressor & Magnetic Clutch Components

G00888975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
