Compressor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

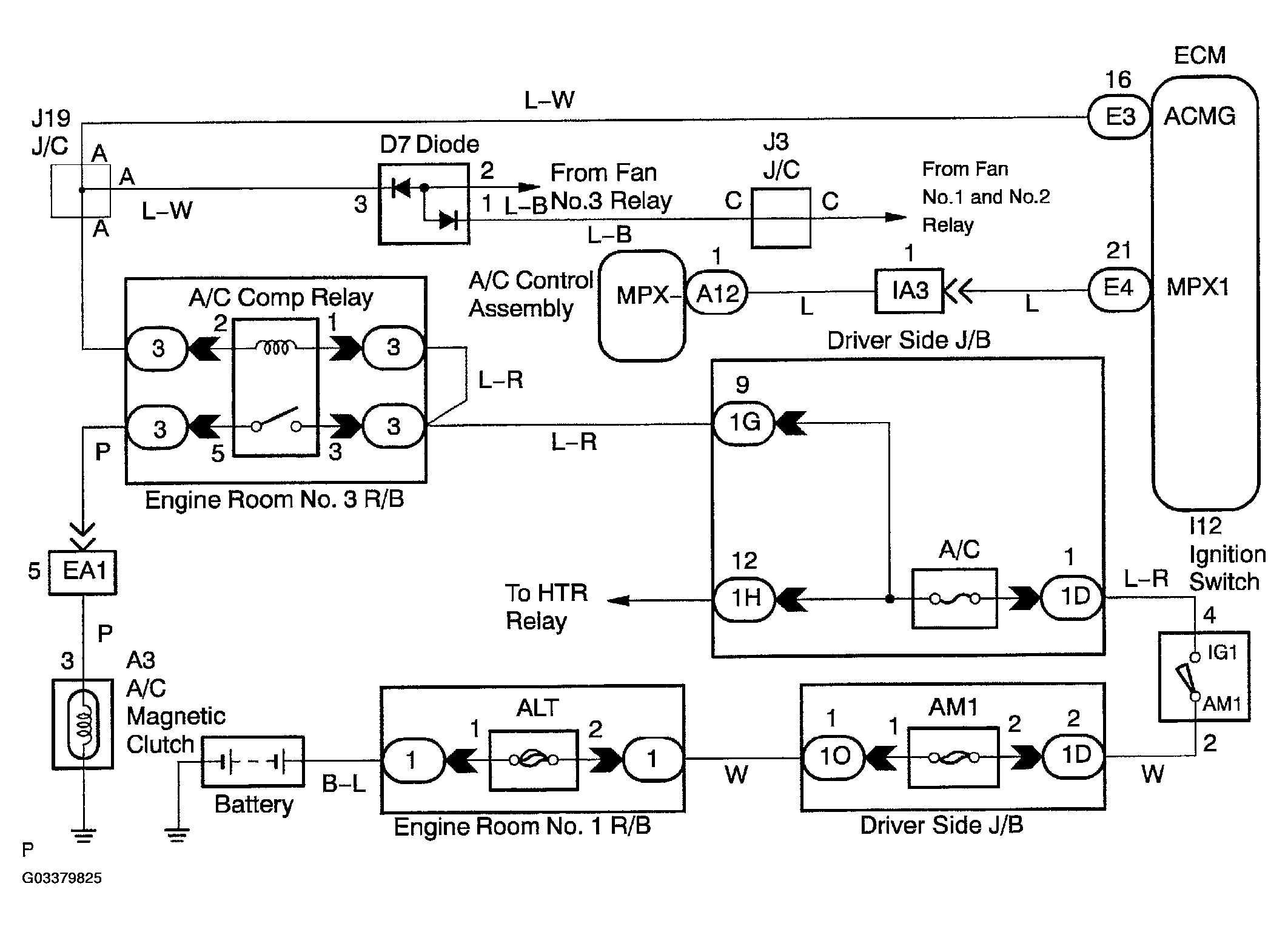

Fig 1: Wiring Diagram - Compressor
G03379825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
