On-Vehicle Inspection

WARNING: This page is about a different car, the 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Remove A/C Control Assembly (See REMOVAL )
Inspect A/C Control Assembly Circuit
1. Disconnect the connector from the A/C control assembly and inspect the connector on the wire harness side, as shown in the chart below.
  Test condition:

  Turn ignition switch ON

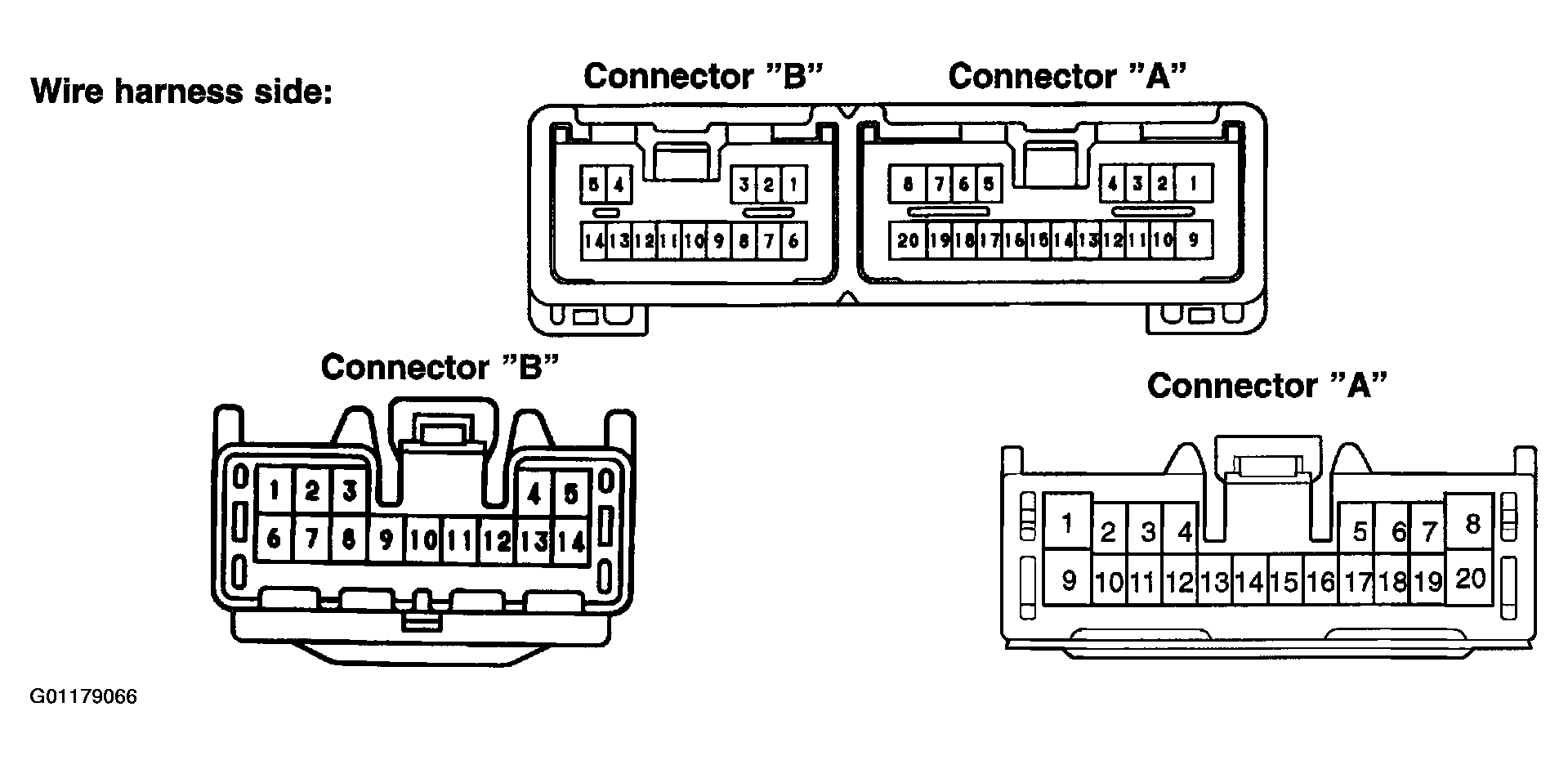

  Fig 1: Identifying A/C Control Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

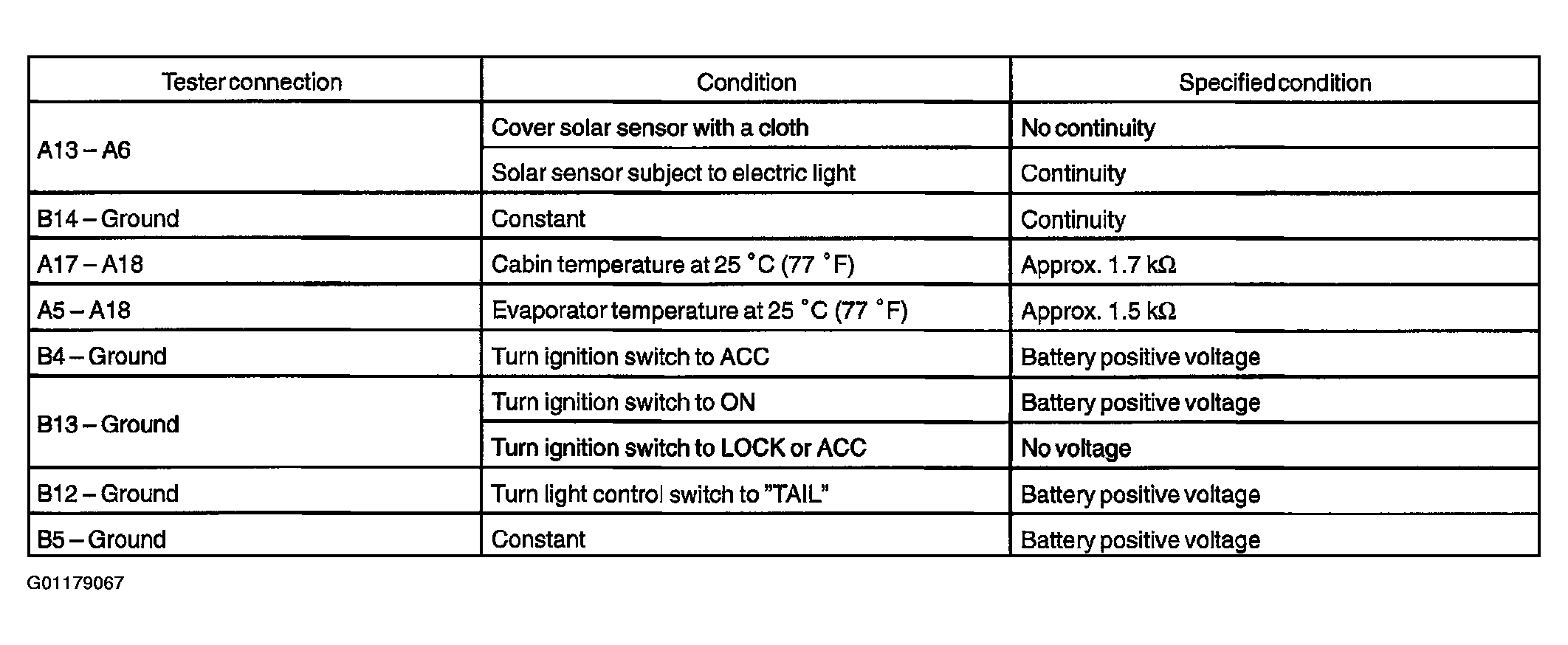

  Fig 2: Determining A/C Control Assembly Specified Conditions Information
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the circuit is not as specified, inspect the circuit connected to other parts.

  If the circuit is as specified, proceed to INSPECTION .
2. Connect the connector to amplifier and inspect the wire harness side connector from the back side, as shown in the chart.
  Test conditions:
  - Running engine at idle speed
  - Blower speed control dial at "HI" position
  - Temperature control dial at "MAX. COOL" position
  - A/C switch ON

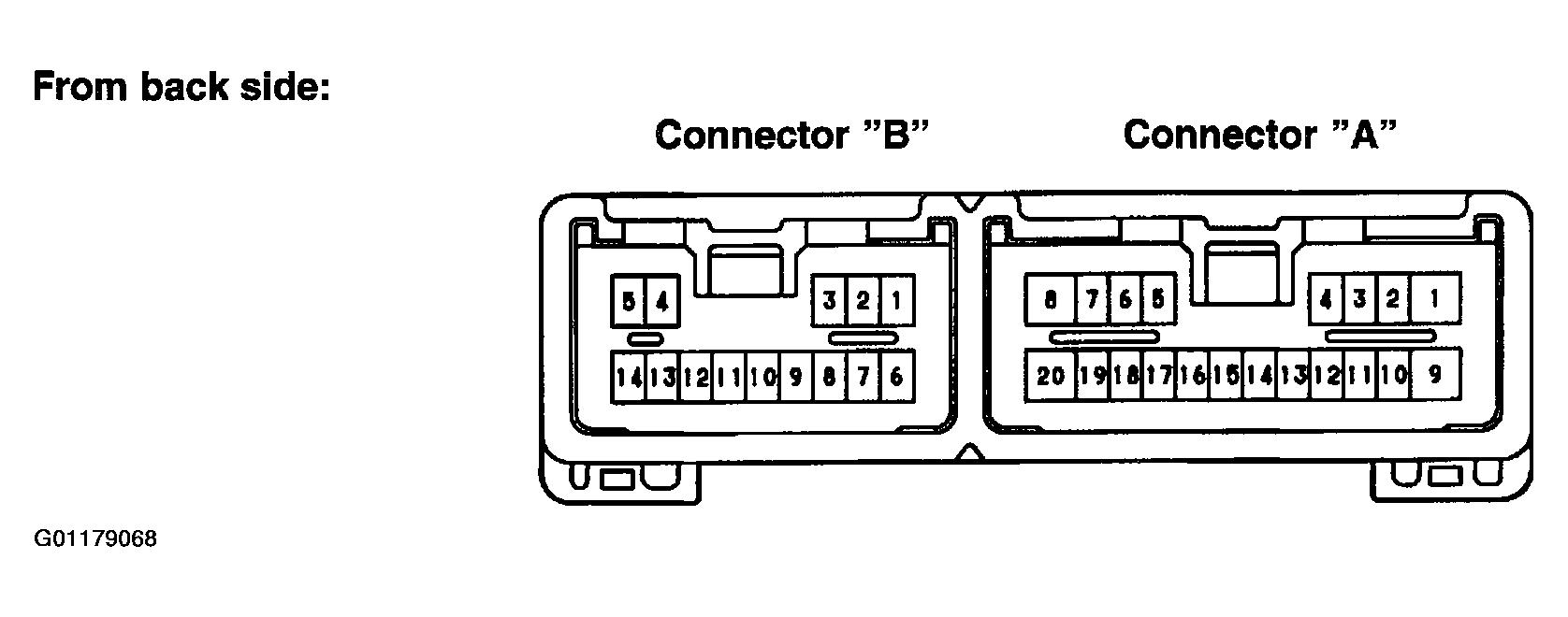

  Fig 3: Identifying A/C Control Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

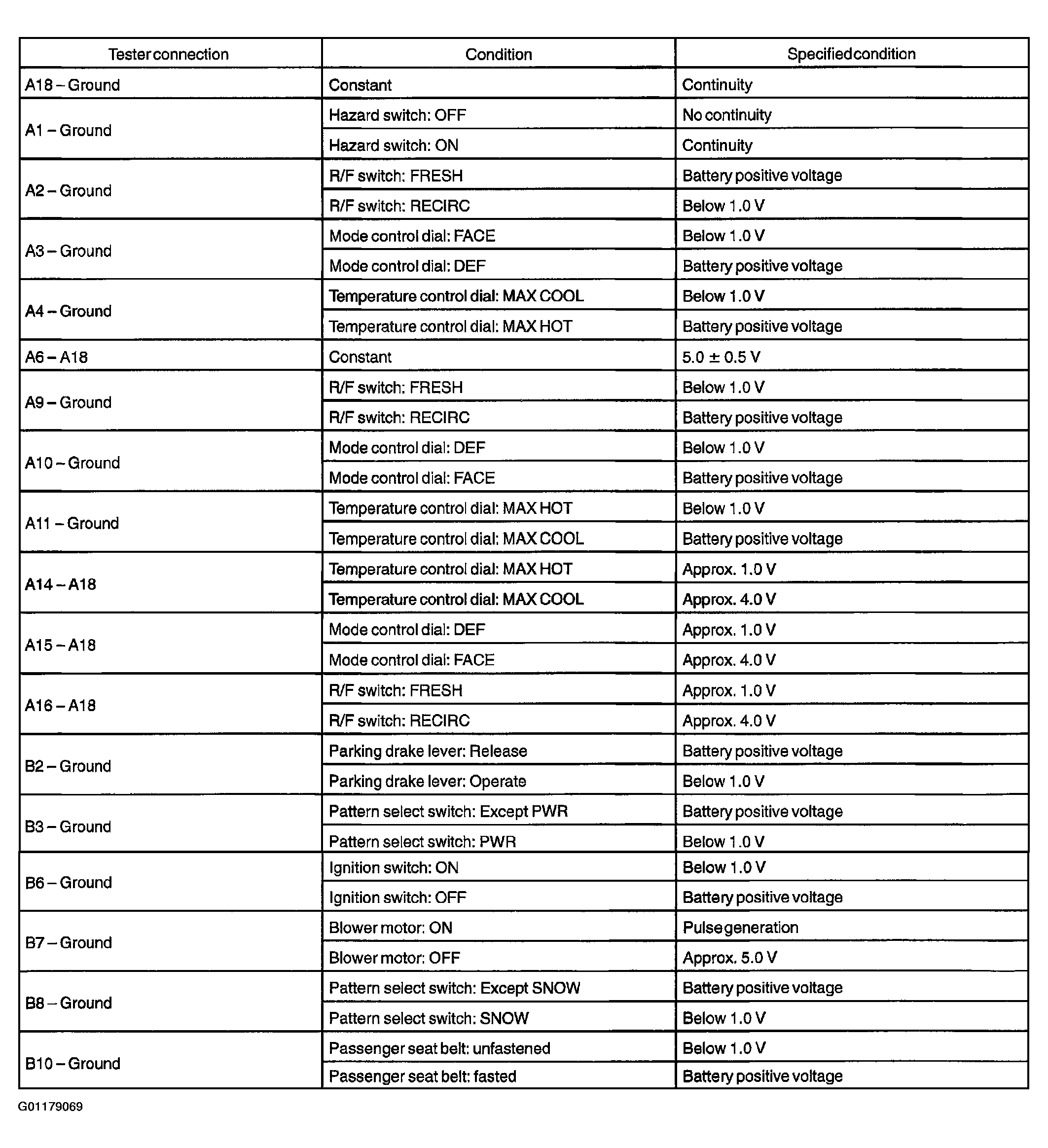

  Fig 4: Determining A/C Control Assembly Specified Conditions Information
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the circuit is not as specified, proceed to INSPECTION .
Install A/C Control Assembly (See INSTALLATION )
