Front Power Seat Control System Location

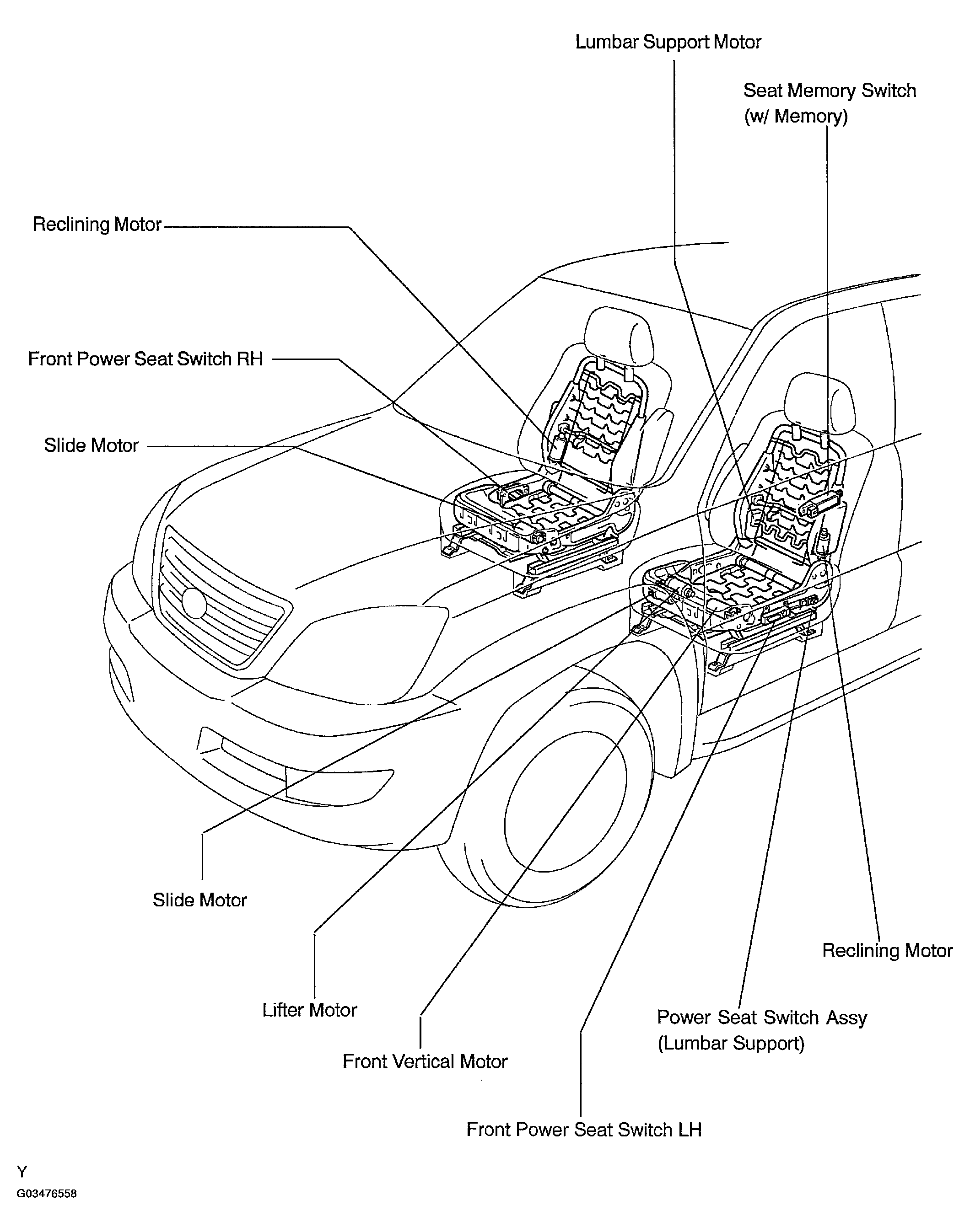

Fig 1: Identifying Front Power Seat Control System Components Location

G03476558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
