Memory Switch Circuit: Wiring Diagram

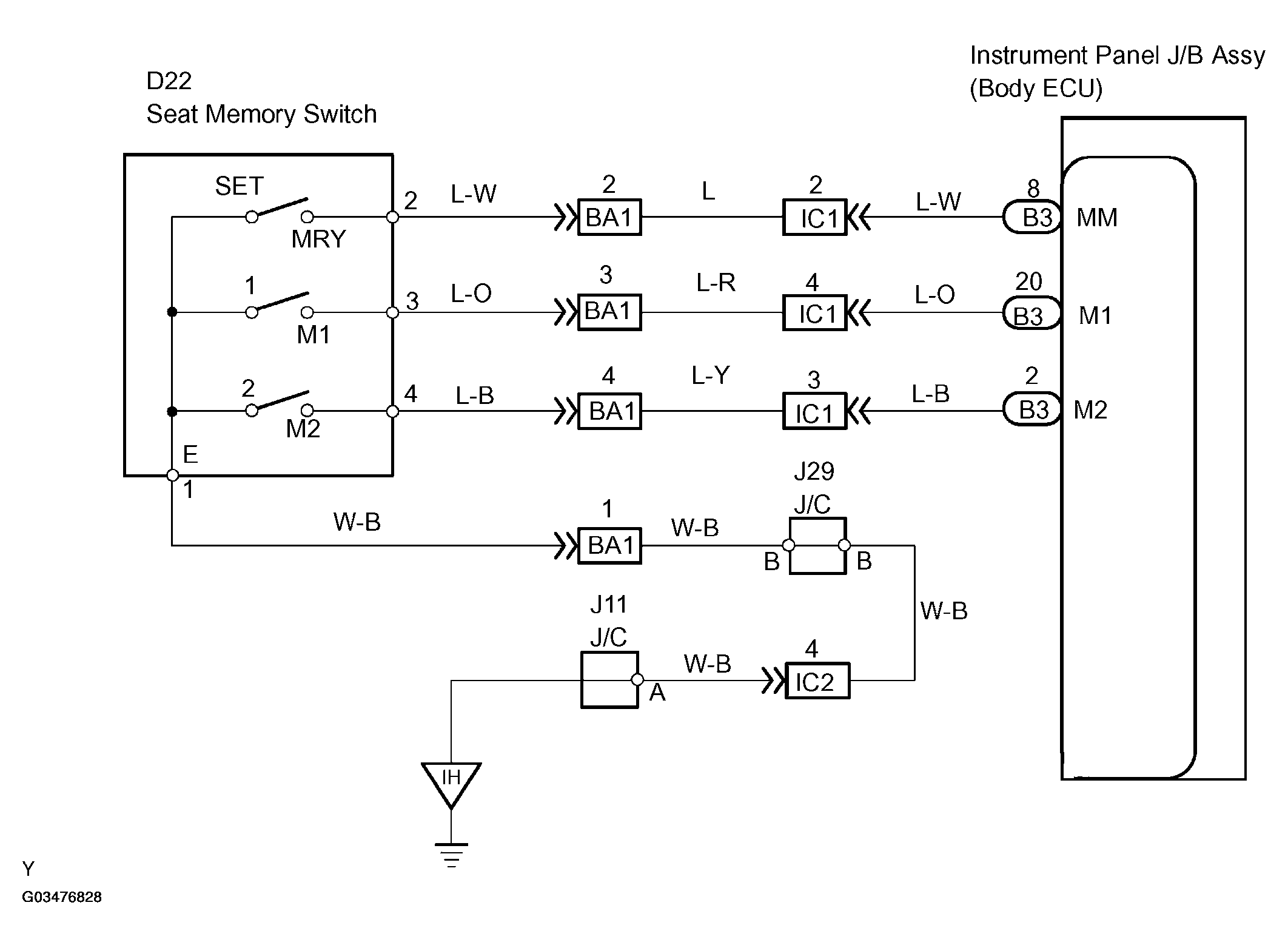

Fig 1: Identifying Memory Switch Circuit Wiring Diagram

G03476828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
