Automatic Transmission Unit (3UZ-FE): Components

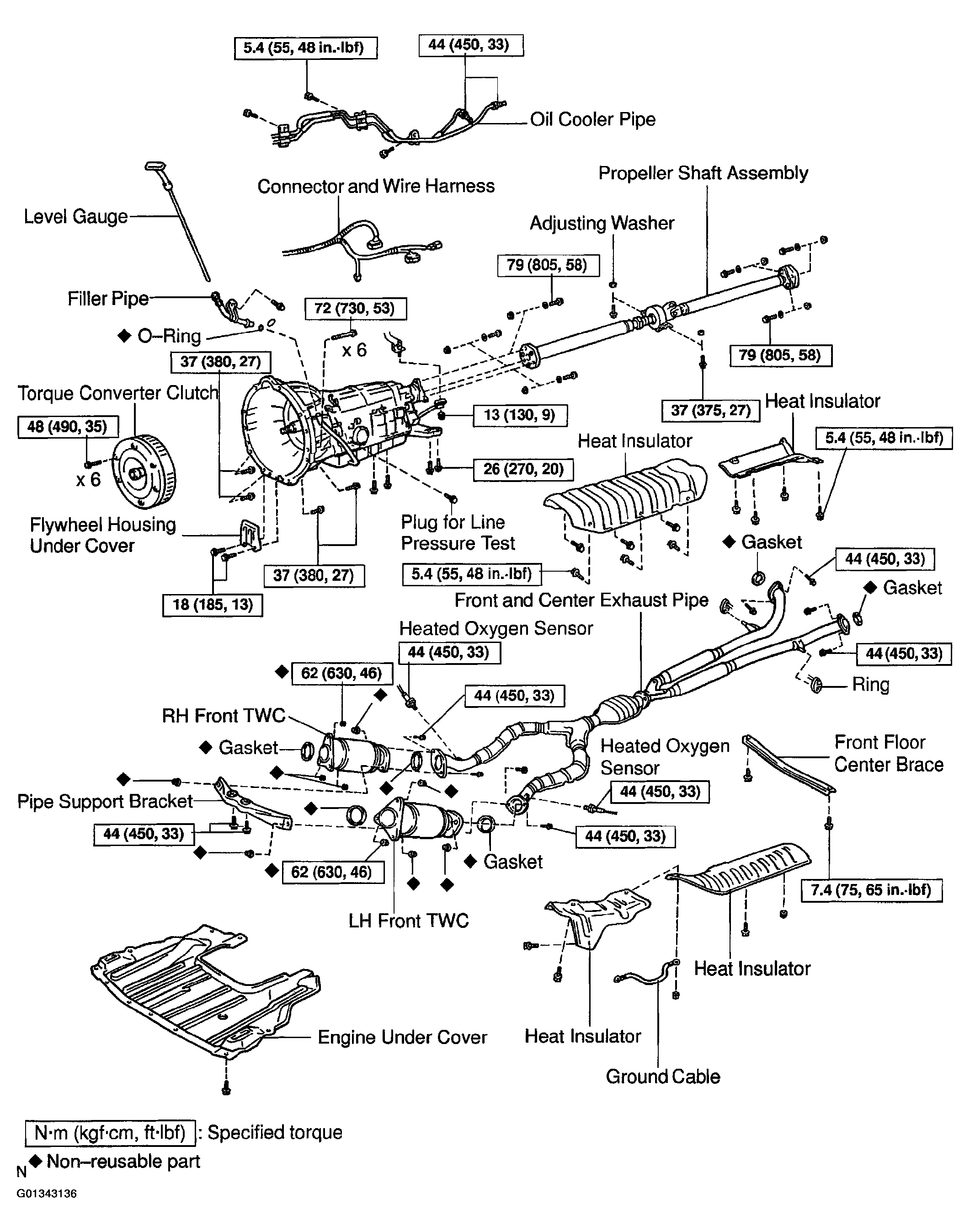

Fig 1: Exploded View Of Automatic Transmission Unit (3UZ-FE)

G01343136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
