Light Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

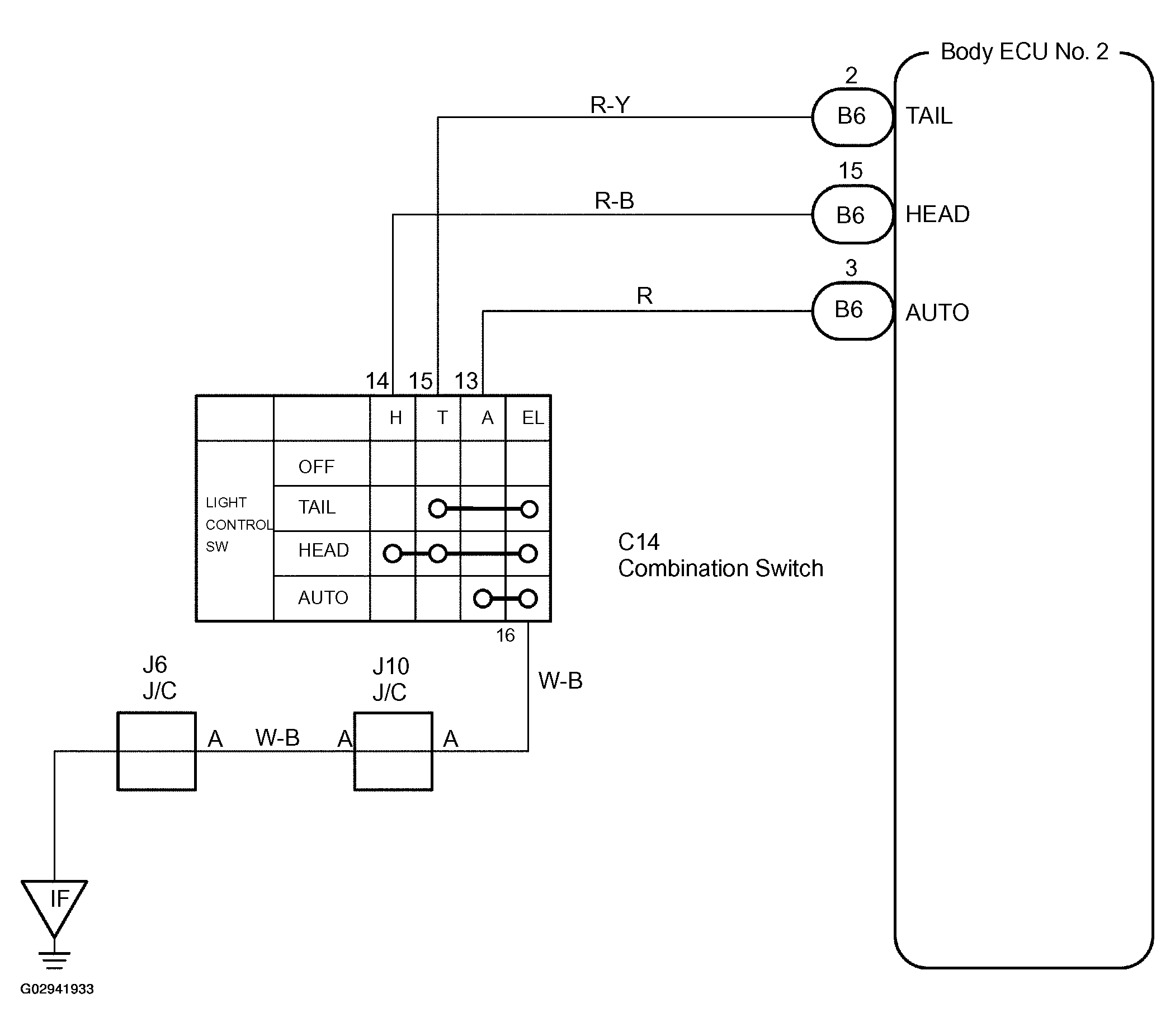

Fig 1: Light Control Switch Circuit - Wiring Diagram
G02941933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
