Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

DTC is displayed on the multi-display (CRT display) display (See PRE-CHECK ).

TELEVISION CAMERA ECU (Physical address: 1 AC)
HINT:
- *¹ : Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *² : This code may be stored when the ignition switch is turned to the START position again in 1 minute after the engine start.
- *³ : This code may be stored when the ignition switch is turned to the START position again after the engine start.
- *⁴ : When 210 seconds have elapsed after pulling out the power supply connector of the master component with the ignition switch in the ACC or ON position, this code is stored.
1. Logical address: 01 (Communication control)

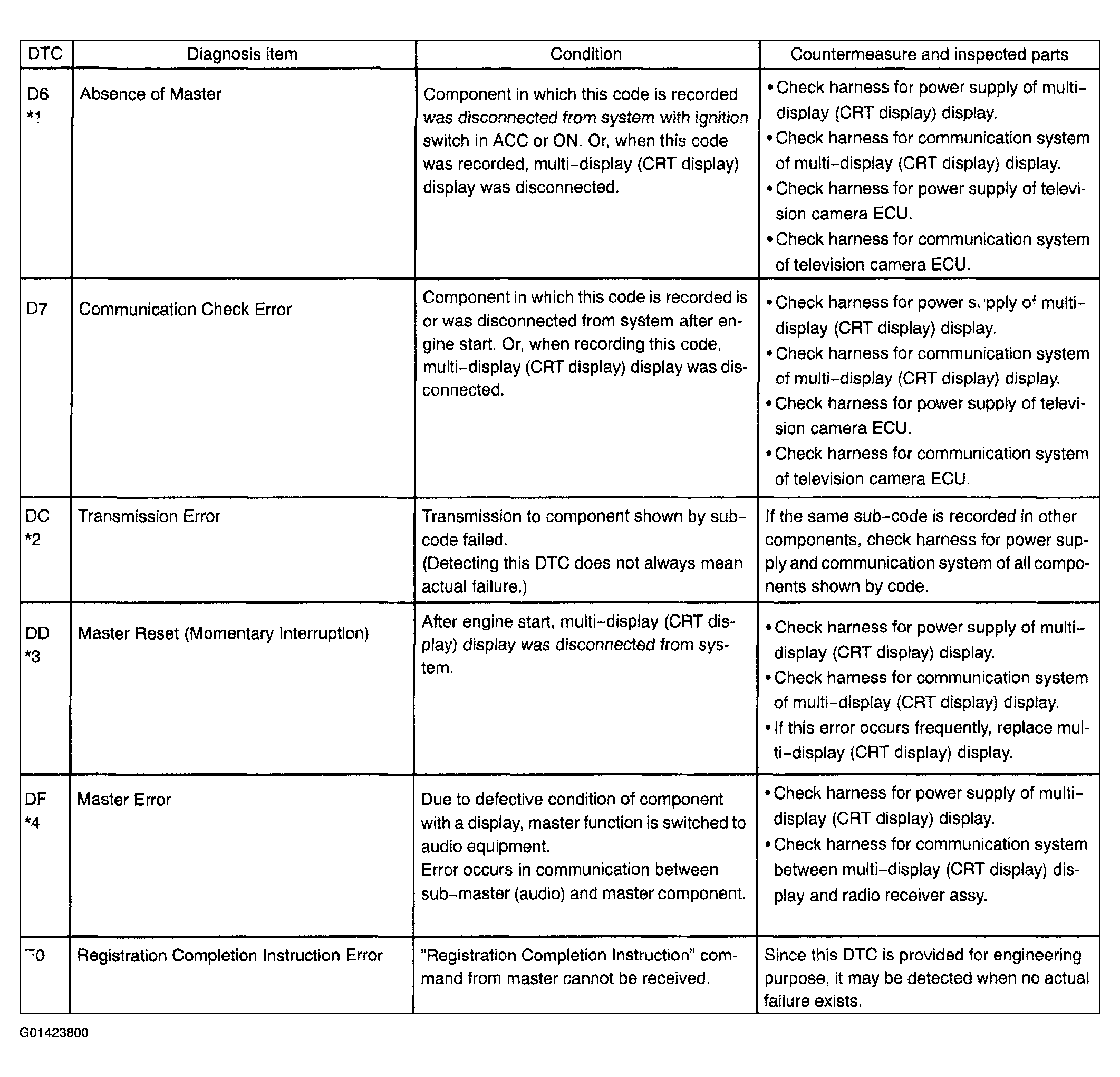

  Fig 1: Logical Address 01 Chart - Communication Control (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

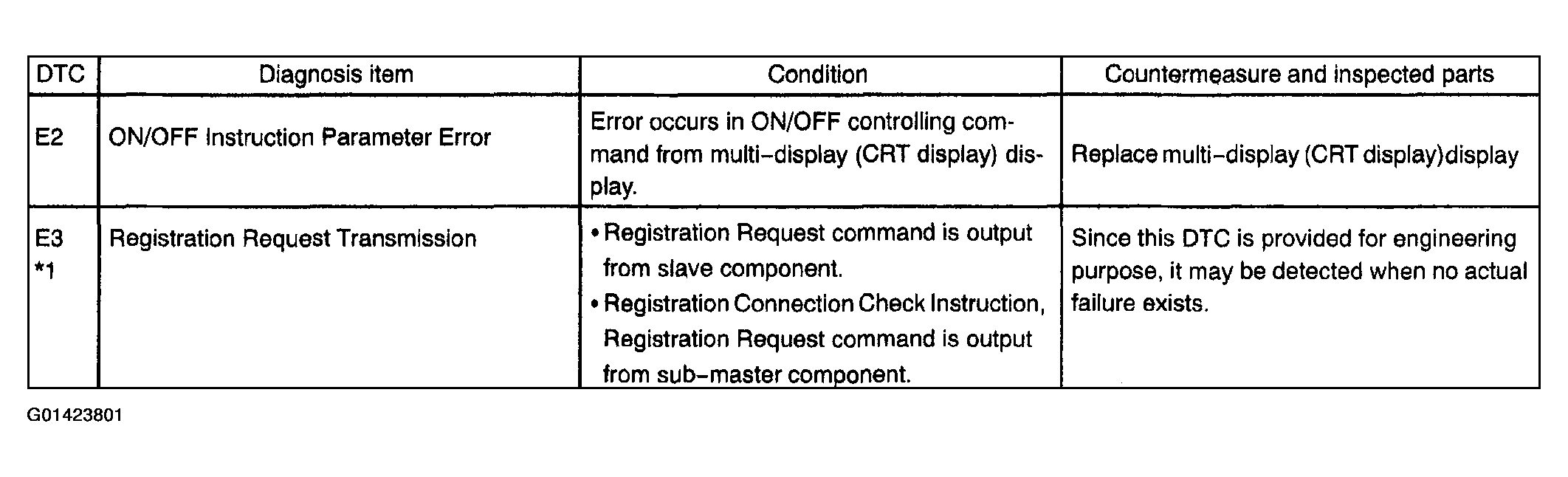

  Fig 2: Logical Address 01 Chart - Communication Control (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Logical address: 5C (Camera unit)

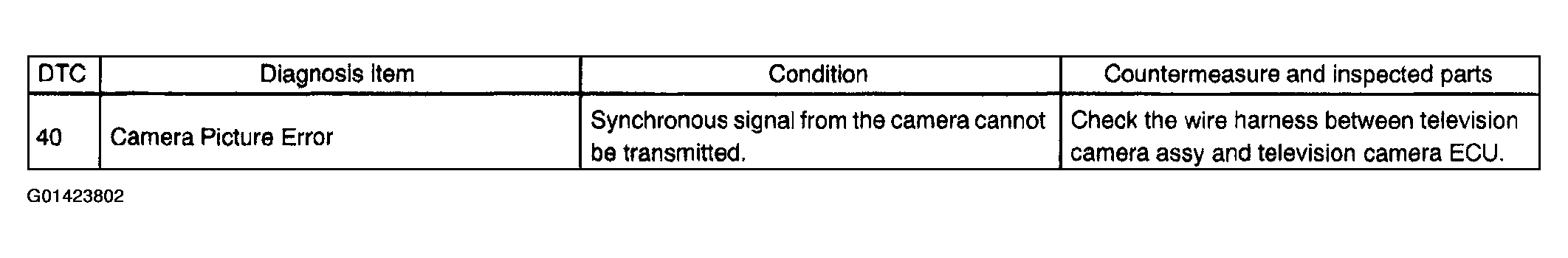

  Fig 3: Logical Address 5C Chart - Camera Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
