Combination Meter: Components

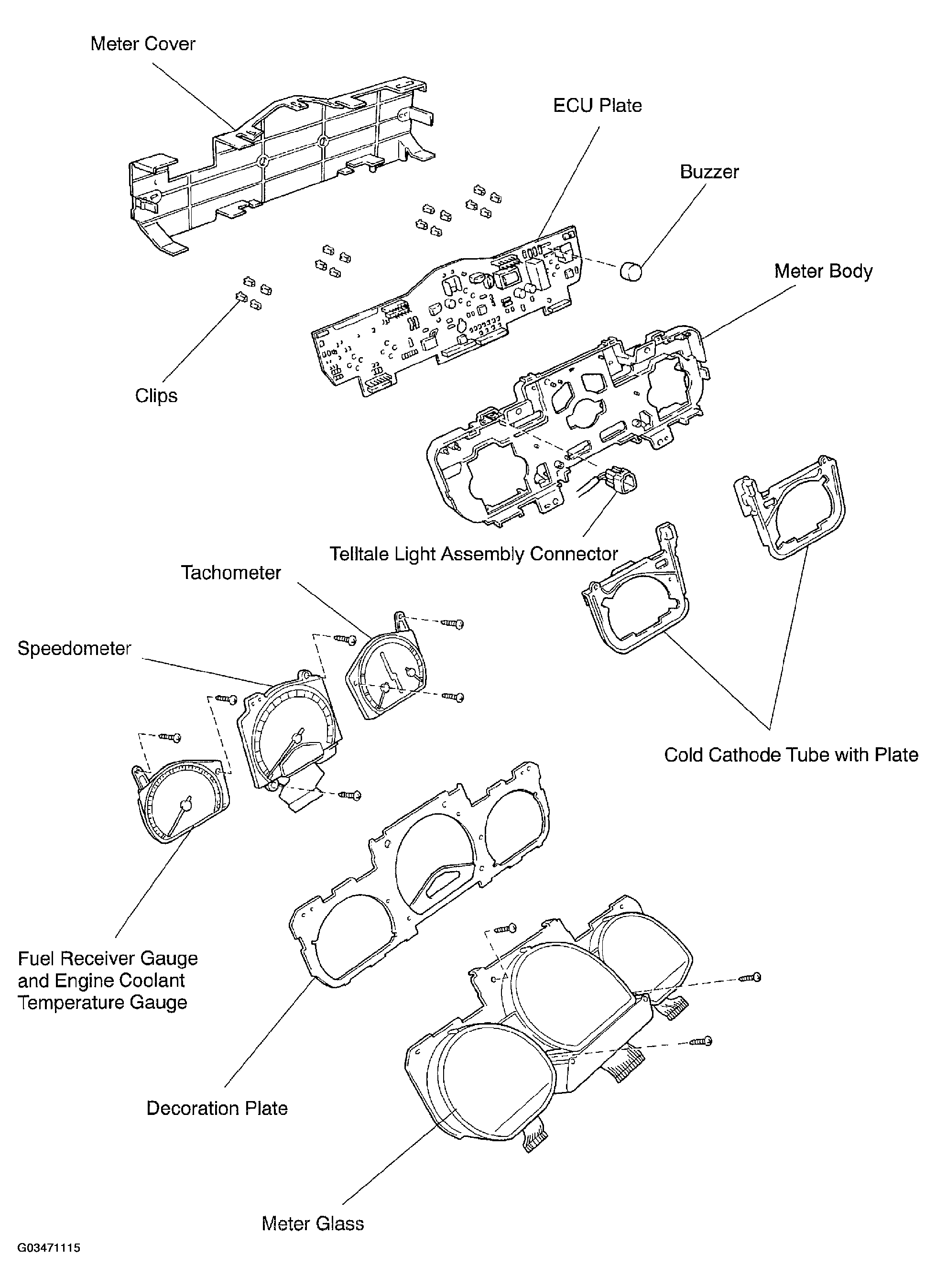

Fig 1: Combination Meter Components

G03471115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
