Power Seat Control Switch Circuit: Wiring Diagram

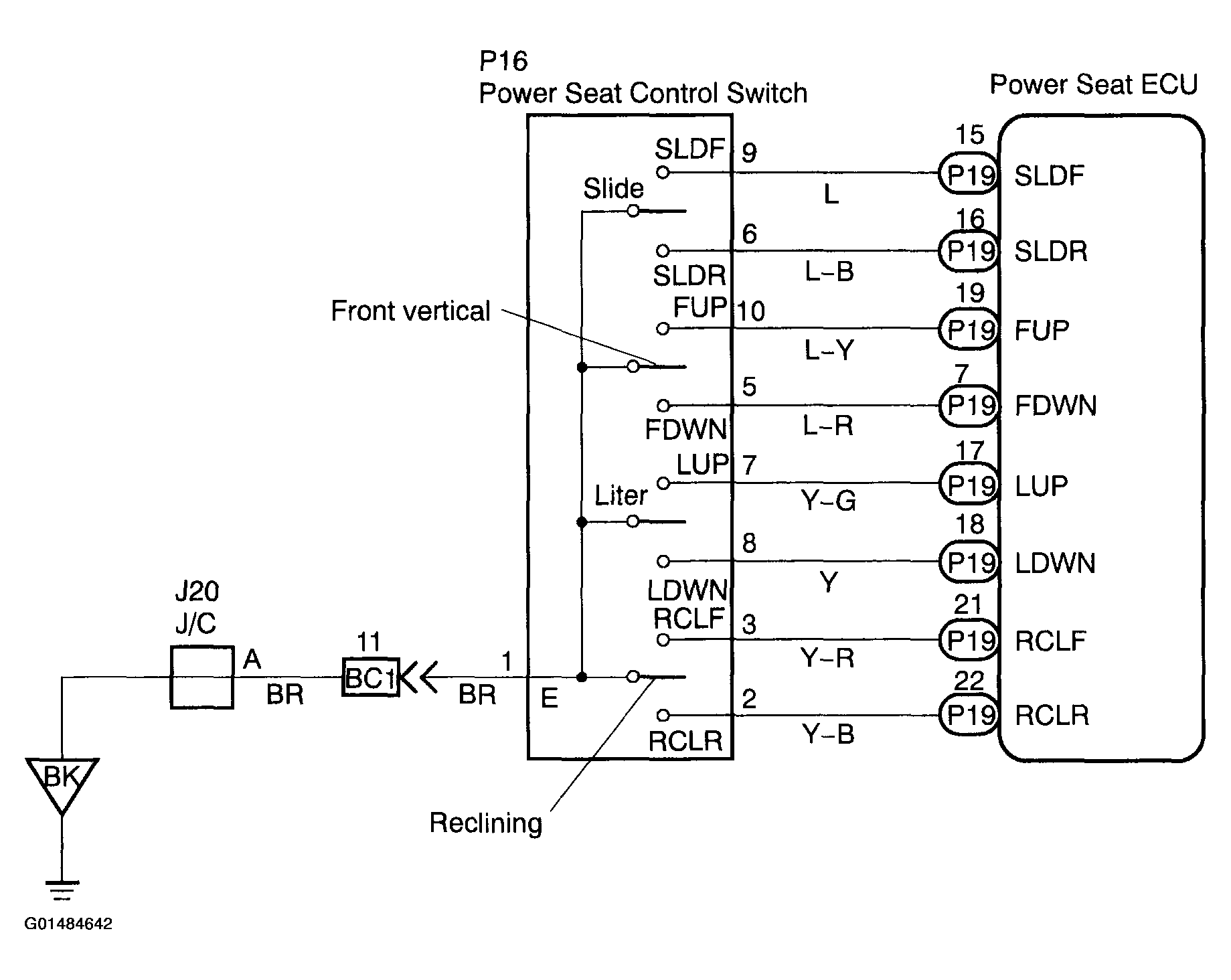

Fig 1: Power Seat Control Switch Circuit Wiring Diagram

G01484642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
