ECU Power Source Circuit: Wiring Diagram

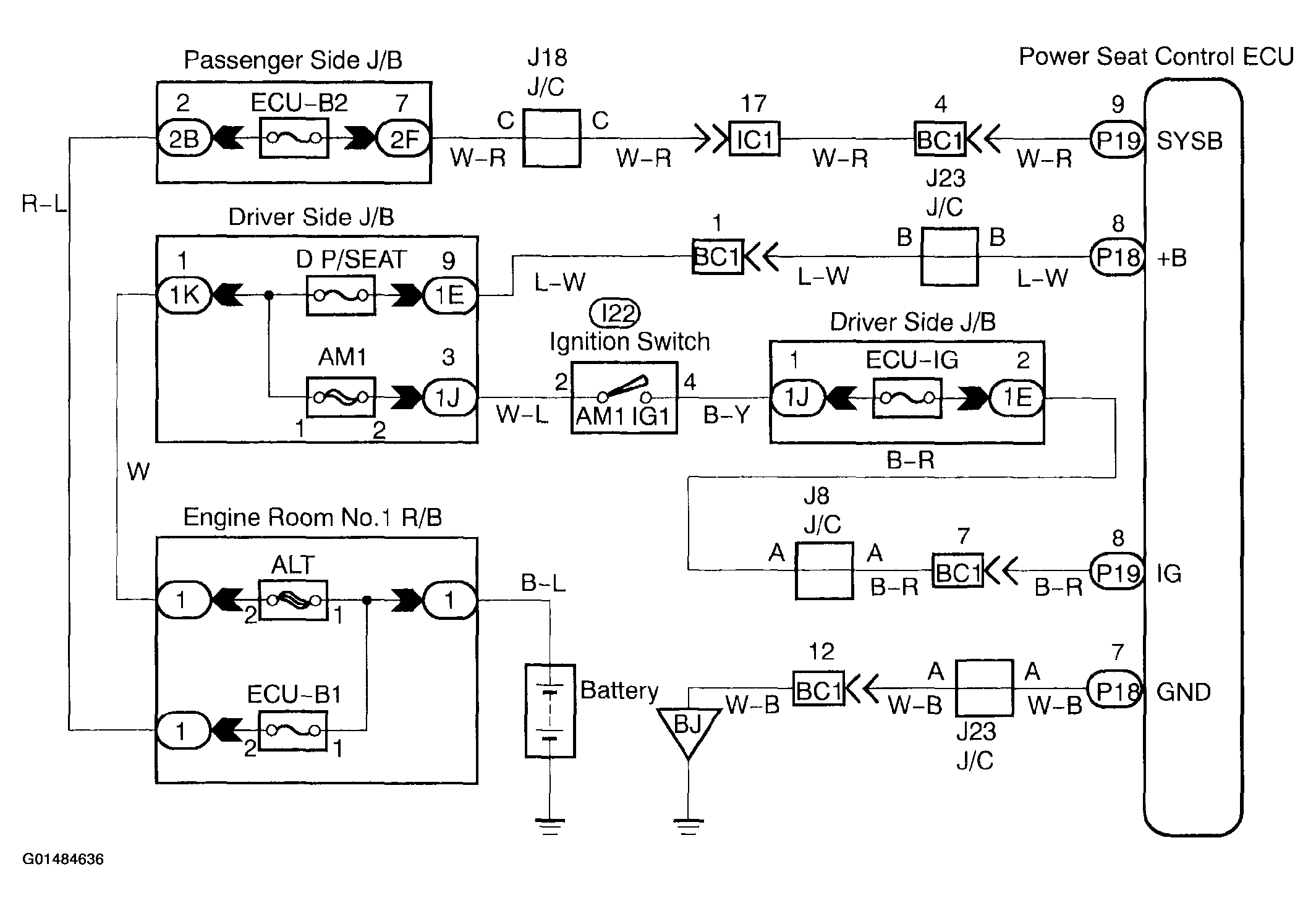

Fig 1: ECU Power Source Circuit Wiring Diagram

G01484636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
