INSPECT INSTRUMENT PANEL J/B ASSY (MULTIPLEX NETWORK BODY ECU)

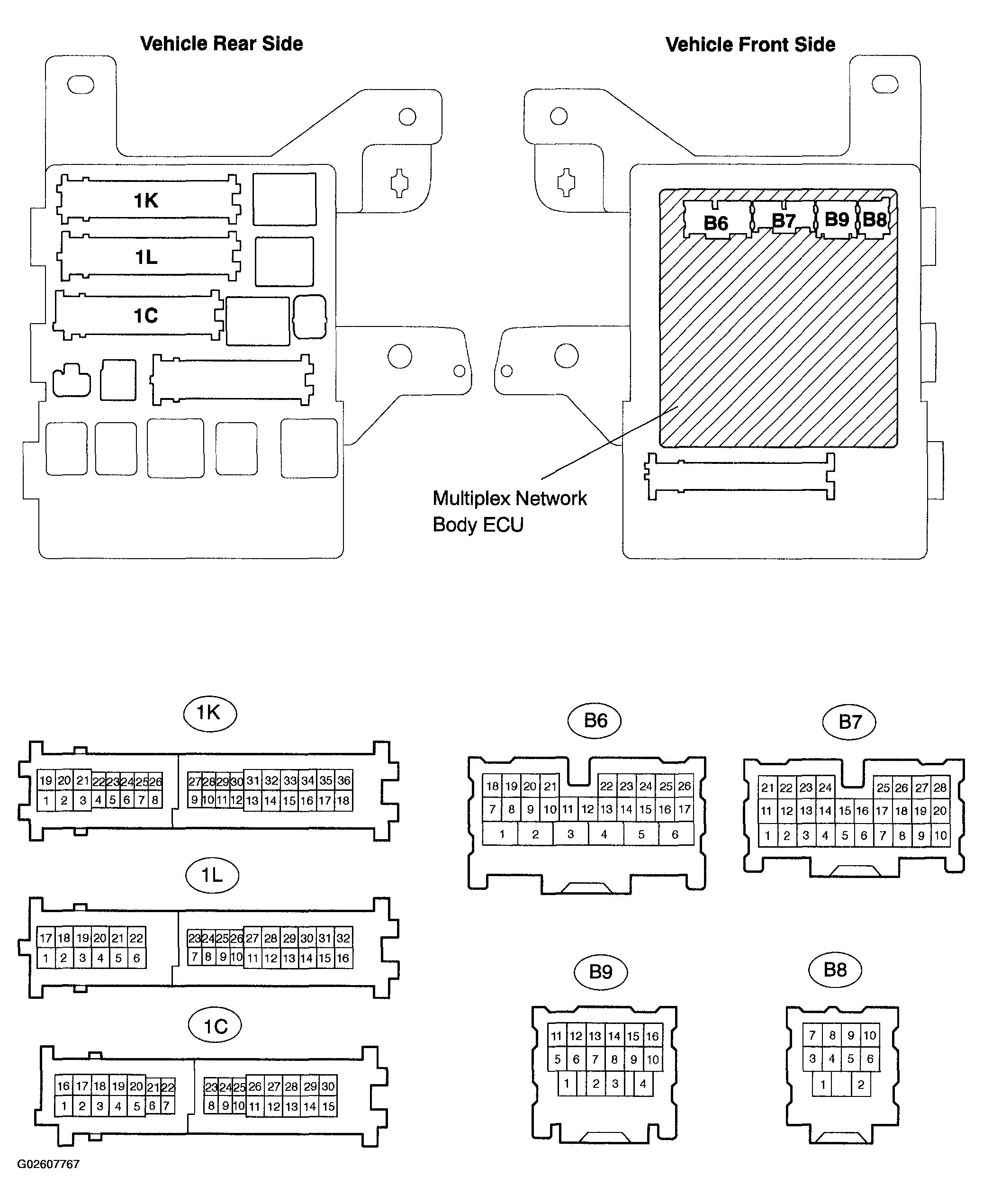

Fig 1: Inspect Instrument Panel J/B Assy (Multiplex Network Body ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the B6 ECU connector.
Disconnect the 1C, 1K and 1L J/B connectors.
Check the voltage and resistance between each terminal of the wire harness side connectors and body ground.
Standard:

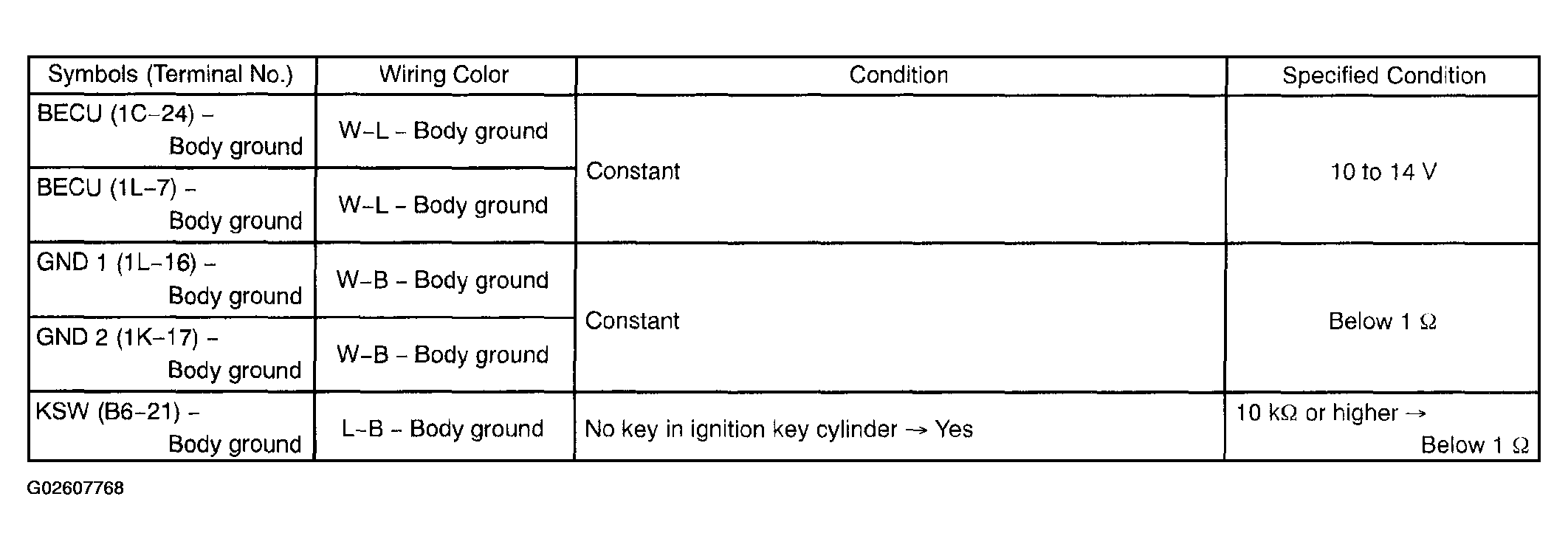

Fig 2: Terminals Specified Condition Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, there may be a malfunction on the wire harness side.
Reconnect the B6 ECU connector.
Reconnect the 1C, 1K and 1L J/B connectors, and check the voltage between the terminal of the connector and body ground.
Standard:

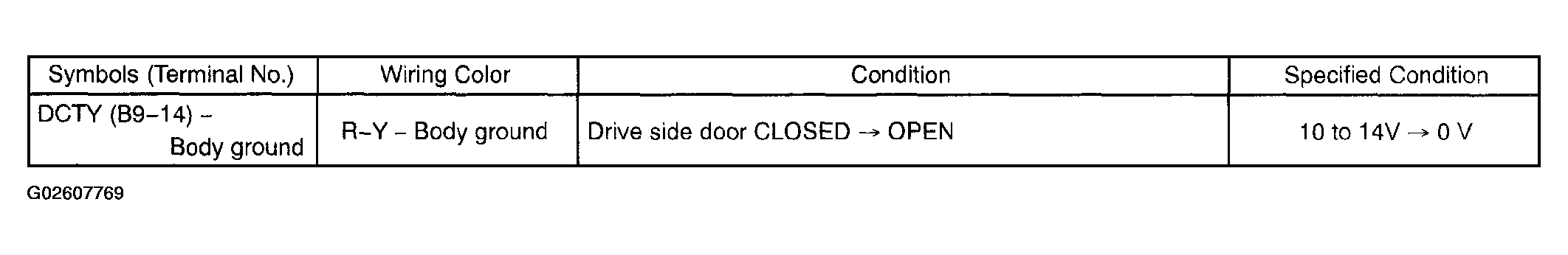

Fig 3: Terminals Specified Condition Table (2 Of 2)

If the result is not as specified, the J/B assy (body ECU) may have a malfunction.
