Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

When using hand-held tester:

  1. CHECK DTC
    1. Check that there is no abnormality in the communication system by inspecting the communication function of the multiplex communication system with the hand-held tester.
      1. (ECU unconnected, communication line abnormal) Without code outputs, proceed to A.
      2. (ECU unconnected, communication line abnormal) With code outputs, proceed to B.
    1. B: GO TO MULTIPLEX COMMUNICATION SYSTEM (See  MULTIPLEX COMMUNICATION SYSTEM  )
    2. A: GO TO NEXT STEP
  2. READ VALUE OF HAND-HELD TESTER
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch and the hand-held tester main switch ON.
    3. Select the item D DOOR CTY SW in the DATA LIST and read its value displayed on the hand-held tester.

      Standard:

      ON: Driver side door is open

      OFF: Driver side door is closed

      1. NG: Go to step   4
    4. Select the item KEY UNLK WRN SW in the DATA LIST and read its value displayed on the hand-held tester.

      Standard:

      ON: The key is in the ignition key cylinder

      OFF: No key is in the ignition key cylinder

    1. NG: Go to step   6
    2. OK: Go to next step
  3. CHECK BUZZER (COMBINATION METER) (See  COMBINATION METER  )
    1. NG: REPLACE COMBINATION METER ASSY
    2. OK: REPLACE MULTIPLEX NETWORK BODY ECU
  4. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)
    1. Remove the courtesy lamp switch.
    2. Check the switch continuity.

      Standard:

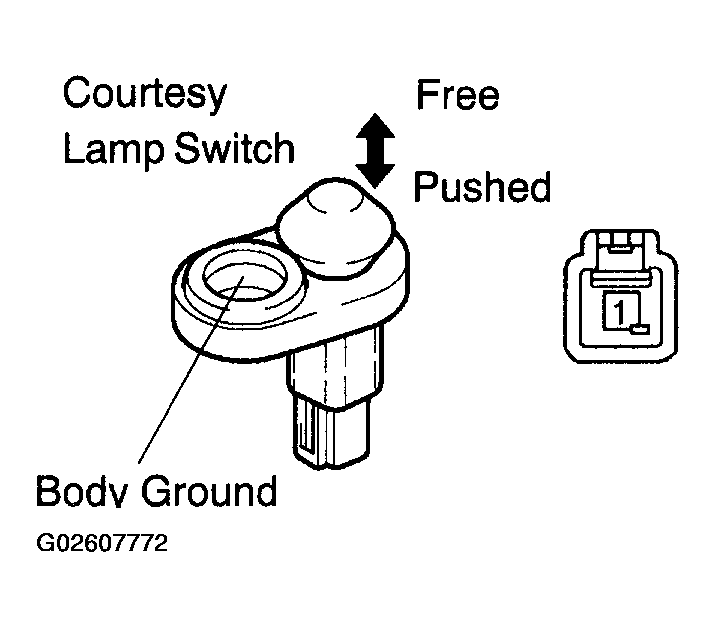

    Fig 1: Inspecting Front Door Courtesy Lamp Switch Assy (Driver Side)
    G02607772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

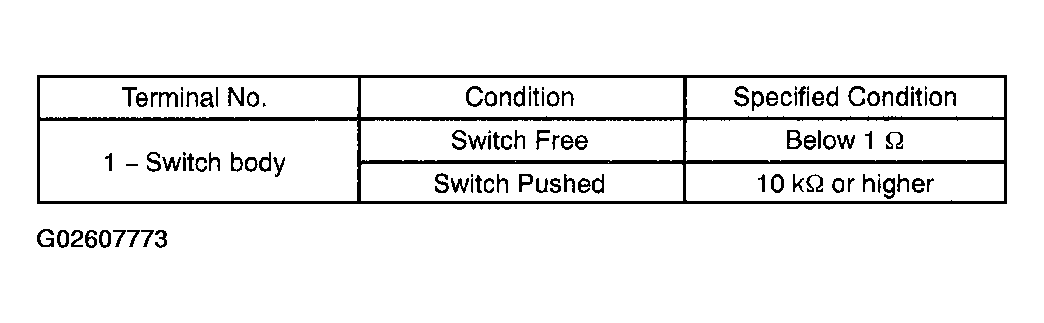

    Fig 2: Front Door Courtesy Lamp Switch Assy Specified Condition Table
    G02607773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
    2. OK: Go to next step
  5. CHECK WIRE HARNESS (MULTIPLEX NETWORK BODY ECU - FRONT DOOR COURTESY LAMP SWITCH)
    1. Disconnect the D7 switch connector.
    2. Disconnect the B9 ECU connector.
    3. Check the continuity between the wire harness side connectors.

      Standard:

    TERMINAL SPECIFIED CONDITION

    Terminal No. Specified Condition
    B9-14 (DCTY)-D7-1 Below 1 Ω

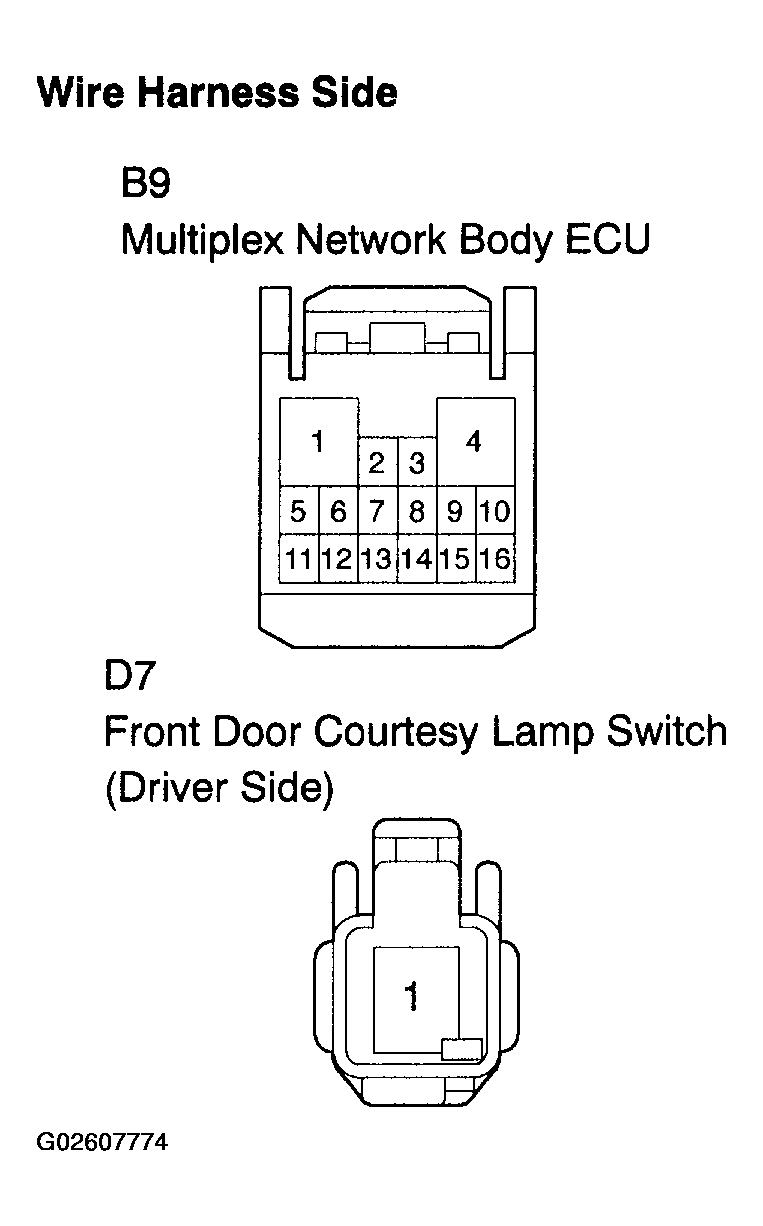

    Fig 3: Identifying B9 ECU Connector
    G02607774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE MULTIPLEX NETWORK BODY ECU
  6. INSPECT UN-LOCK WARNING SWITCH ASSY
    1. Remove the un-lock warning switch.
    2. Check the switch continuity.

      Standard:

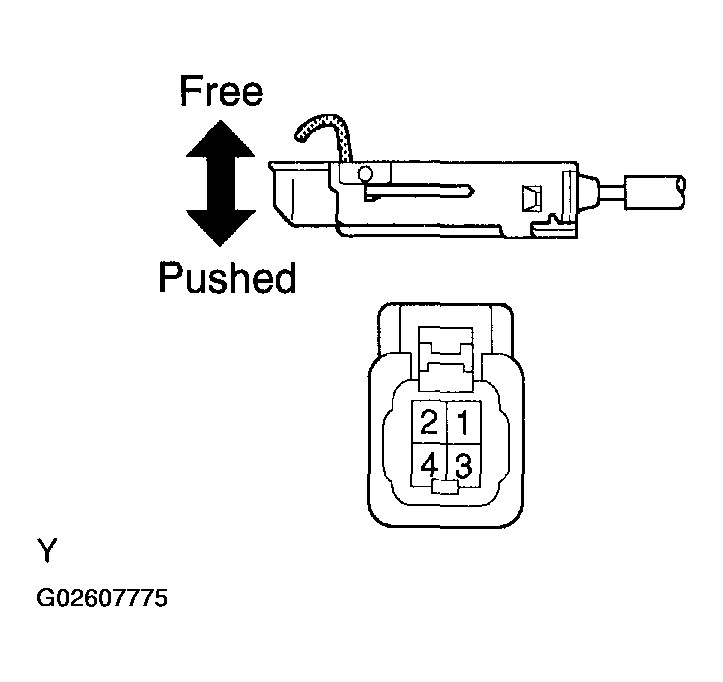

    Fig 4: Inspecting Un-Lock Warning Switch Assy
    G02607775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

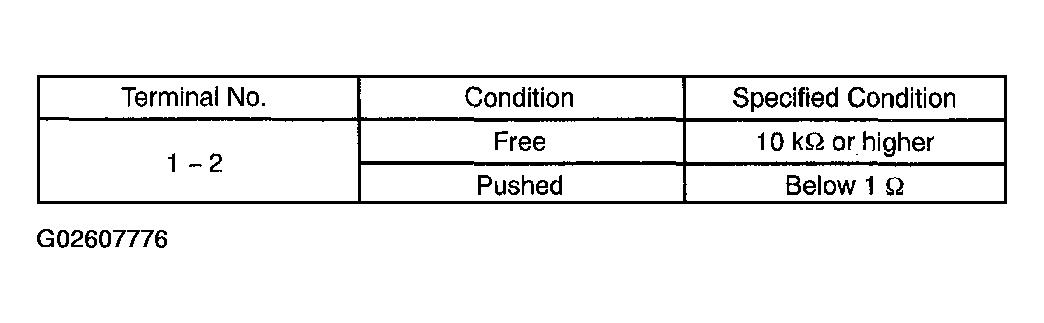

    Fig 5: Terminal Specified Condition Table
    G02607776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE UN-LOCK WARNING SWITCH ASSY
    2. OK: Go to next step
  7. CHECK WIRE HARNESS (MULTIPLEX NETWORK BODY ECU - UN-LOCK WARNING SWITCH ASSY) (UN-LOCK WARNING SWITCH ASSY - BODY GROUND)
    1. Disconnect the B6 ECU connectors.
    2. Disconnect the K4 switch connector.
    3. Check the continuity between the wire harness side connectors.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Specified Condition
      B6-21 (KSW) - K4-2 Below 1 Ω
    4. Check the continuity between the K4 switch connector and body ground.

      Standard:

    TERMINAL SPECIFIED CONDITION

    Terminal No. Specified Condition
    K4-1 - Body ground Below 1 Ω

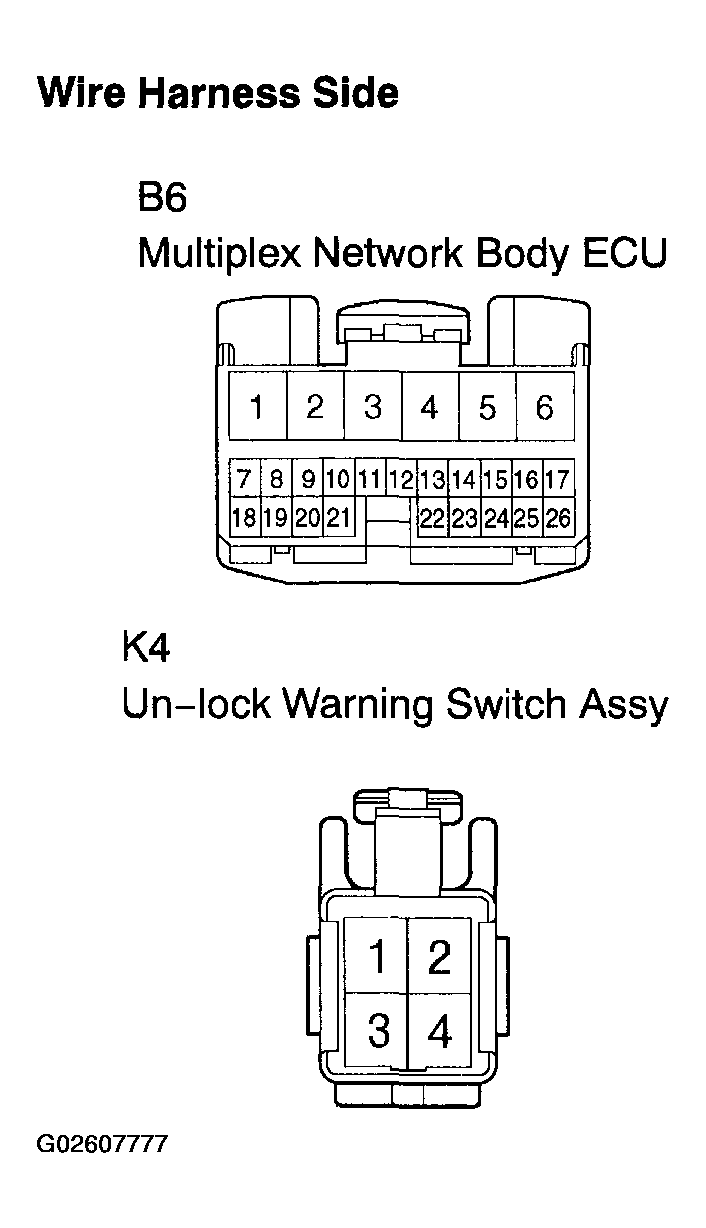

    Fig 6: Identifying B6 ECU Connectors & K4 Switch Connector
    G02607777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE MULTIPLEX NETWORK BODY ECU

When not using hand-held tester:

  1. CHECK FRONT DOOR COURTESY LAMP SWITCH ASSY
    1. Put the dome lamp assy No. 2 switch in the door position and open the driver side door. Then check that the courtesy lamp comes on.
    1. OK: CHECK BUZZER
    2. NG: GO TO NEXT STEP
  2. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)
    1. Remove the courtesy lamp switch.
    2. Check the switch continuity.

      Standard:

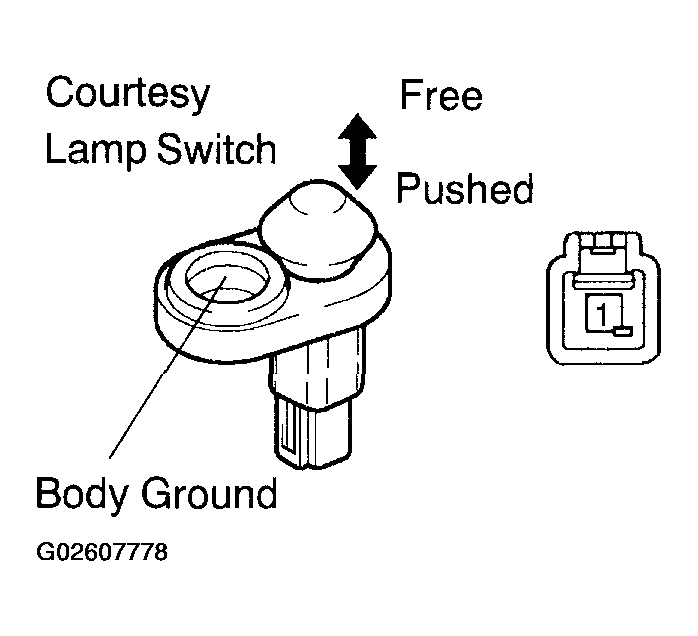

    Fig 7: Inspecting Front Door Courtesy Lamp Switch Assy (Driver Side)
    G02607778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

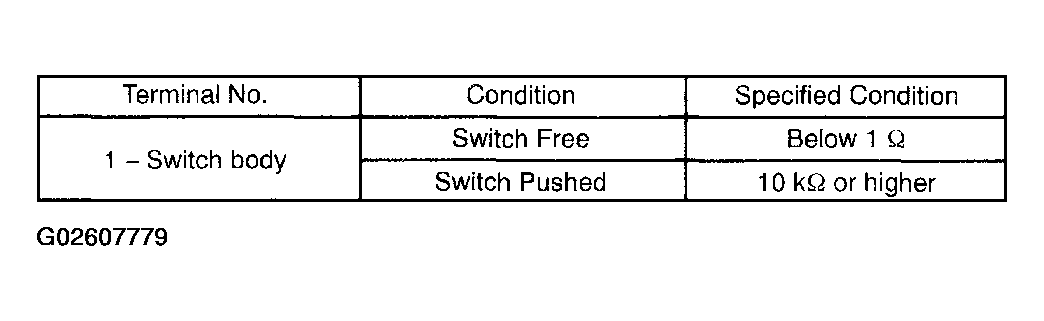

    Fig 8: Terminal Specified Condition Table
    G02607779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
    2. OK: Go to next step
  3. CHECK WIRE HARNESS (MULTIPLEX NETWORK BODY ECU - FRONT DOOR COURTESY LAMP SWITCH)
    1. Disconnect the D7 switch connector.
    2. Disconnect the B9 ECU connector.
    3. Check the continuity between the wire harness side connectors.

      Standard:

    TERMINAL SPECIFIED CONDITION

    Terminal No. Specified Condition
    B9-14 (DCTY)-D7-1 Below 1 Ω

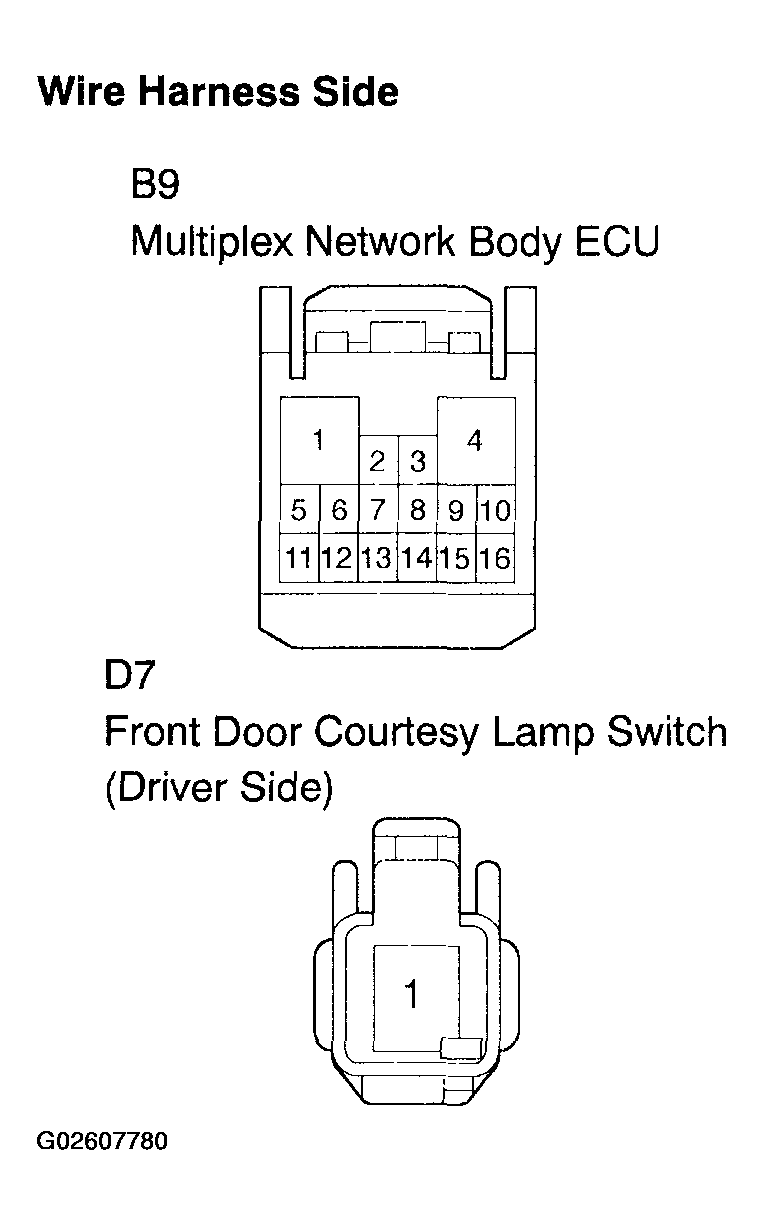

    Fig 9: Identifying D7 Switch Connector & B9 ECU Connector
    G02607780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to next step
  4. CHECK BUZZER (COMBINATION METER) (See  COMBINATION METER  )
    1. NG: REPLACE COMBINATION METER ASSY
    2. OK: Go to next step
  5. INSPECT UN-LOCK WARNING SWITCH ASSY
    1. Remove the un-lock warning switch.
    2. Check the switch continuity.

      Standard:

    Fig 10: Inspecting Un-Lock Warning Switch Assy
    G02607781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

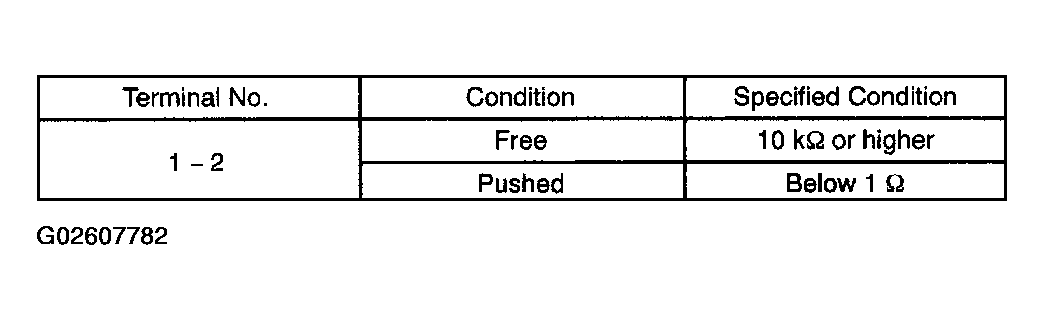

    Fig 11: Terminal Specified Condition Table
    G02607782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE UN-LOCK WARNING SWITCH ASSY
    2. OK: Go to next step
  6. CHECK WIRE HARNESS (MULTIPLEX NETWORK BODY ECU - UN-LOCK WARNING SWITCH ASSY) (UN-LOCK WARNING SWITCH ASSY - BODY GROUND)
    1. Disconnect the B6 ECU connectors.
    2. Disconnect the K4 switch connector.
    3. Check the continuity between the wire harness side connectors.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Specified Condition
      B6-21 (KSW) - K4-2 Below 1 Ω
    4. Check the continuity between the K4 switch connector and body ground.

      Standard:

    TERMINAL SPECIFIED CONDITION

    Terminal No. Specified Condition
    K4-1 - Body ground Below 1 Ω

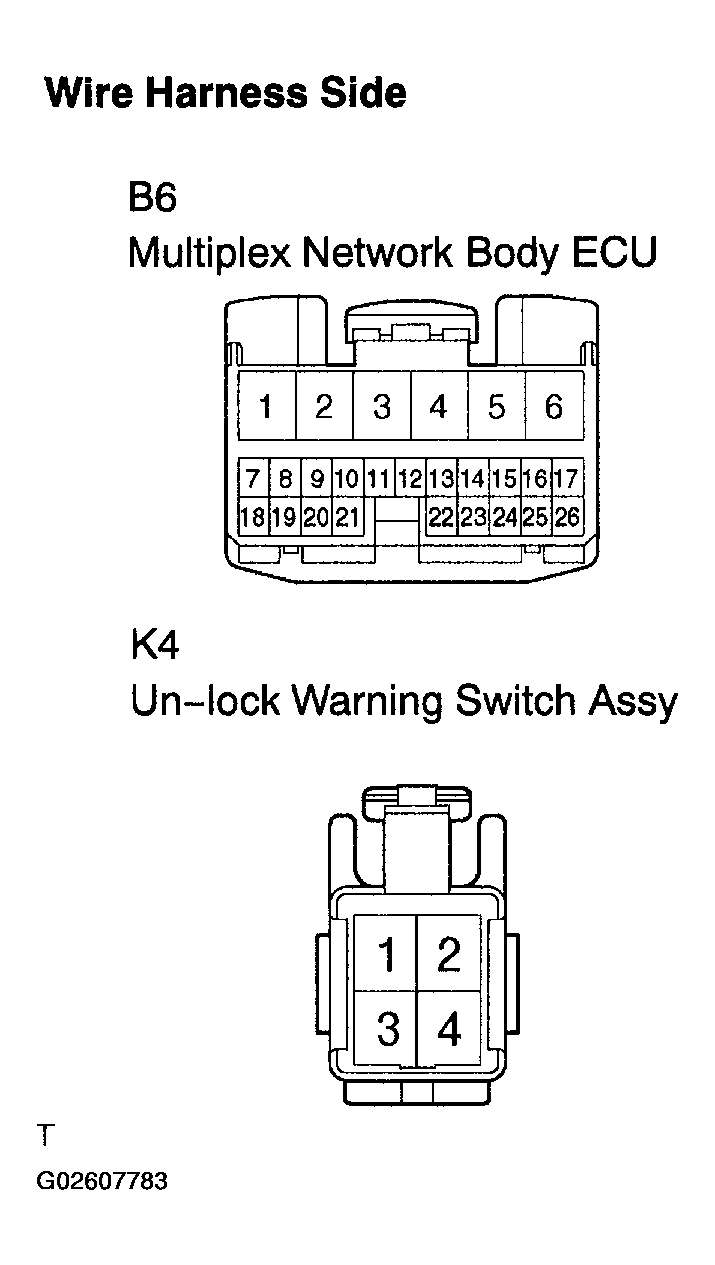

    Fig 12: Identifying B6 ECU Connectors & K4 Switch Connector
    G02607783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE MULTIPLEX NETWORK BODY ECU
