Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK BRAKE WARNING LIGHT
- Check that the brake warning light comes on when the parking brake is applied and goes off when it is released.
OK: The brake warning light operates as specified above.
- OK: Go to step 3
- NG: GO TO NEXT STEP
- Check that the brake warning light comes on when the parking brake is applied and goes off when it is released.

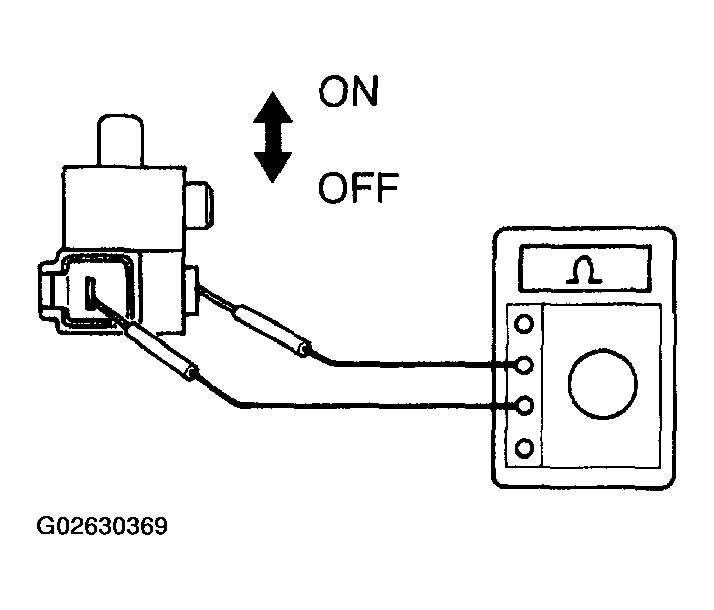

- INSPECT PARKING BRAKE SWITCH ASSY
- Disconnect the parking brake switch assy.
- Measure the resistance according to the value(s) in
PARKING BRAKE SWITCH ASSY RESISTANCE .
Standard:
PARKING BRAKE SWITCH ASSY RESISTANCETester connection Condition Specified condition Switch connector - Switch body ON (Shaft is not pressed) Below 1 Ω Switch connector - Switch body OFF (Shaft is pressed) 10 kΩ or higher - NG: REPLACE PARKING BRAKE SWITCH ASSY
- OK: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (PARKING BRAKE SWITCH - RADIO AND NAVIGATION ASSY)

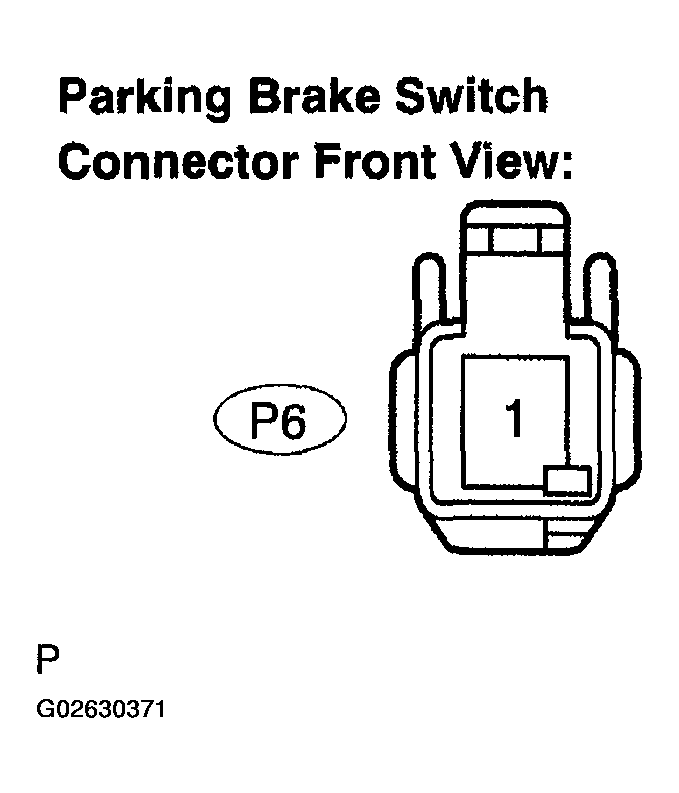

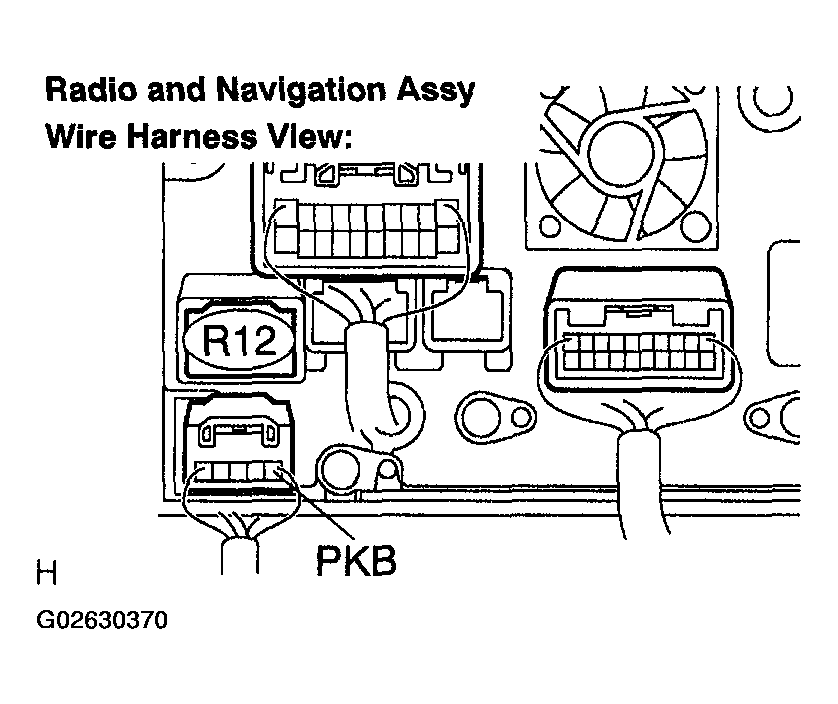

- Disconnect the radio and navigation assy connector R12 and parking brake switch connector P6.
- Measure the resistance according to the value(s) in
PARKING BRAKE SWITCH - RADIO AND NAVIGATION ASSY RESISTANCE .
Standard:
PARKING BRAKE SWITCH - RADIO AND NAVIGATION ASSY RESISTANCETester connection Condition Specified condition PKB - P6-1 Always Below 1 Ω PKB - Body ground Always 10 kΩ or higher
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
