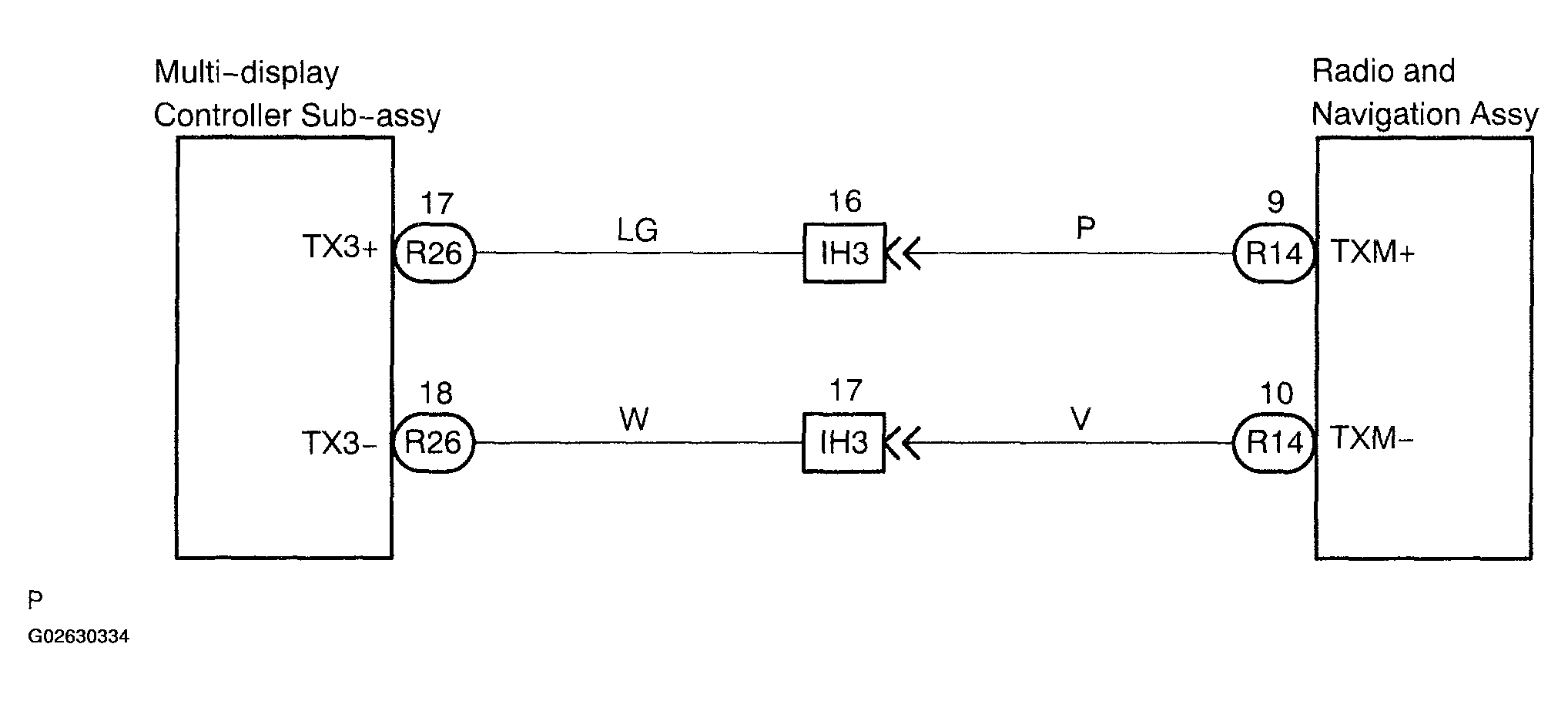

AVC-LAN Circuit (Radio And Navigation ASSY - Multi-Display Controller Sub-ASSY): Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
