Circuit Description

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the temperature outside the cabin and sends the appropriate signals to the A/C amplifier.

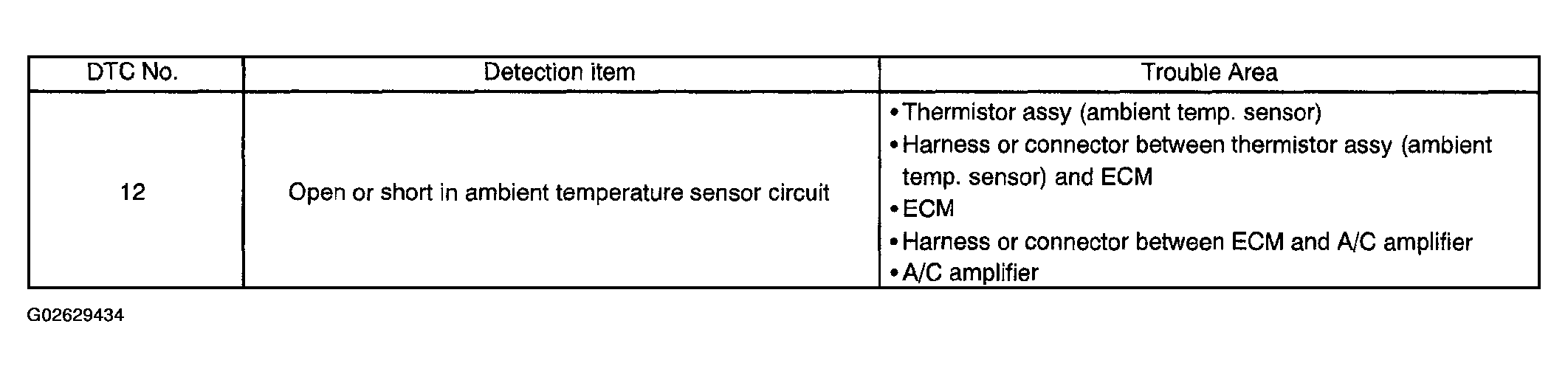

Fig 1: DTC Table
G02629434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
