Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSE (ECU ACC)
    1. Remove the ECU ACC fuse from the engine room R/B.
    2. Check for the continuity of ECU ACC fuse.
    1. NG: REPLACE FUSE
    2. OK: GO TO NEXT STEP
  2. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)
    1. Remove the A/C amplifier assy with connectors being connected.
    2. Turn the ignition switch to the "ACC" position.
    3. Measure the voltage between terminals ACC of the A/C amplifier assy and body ground.

      Standard: 10 to 14 V

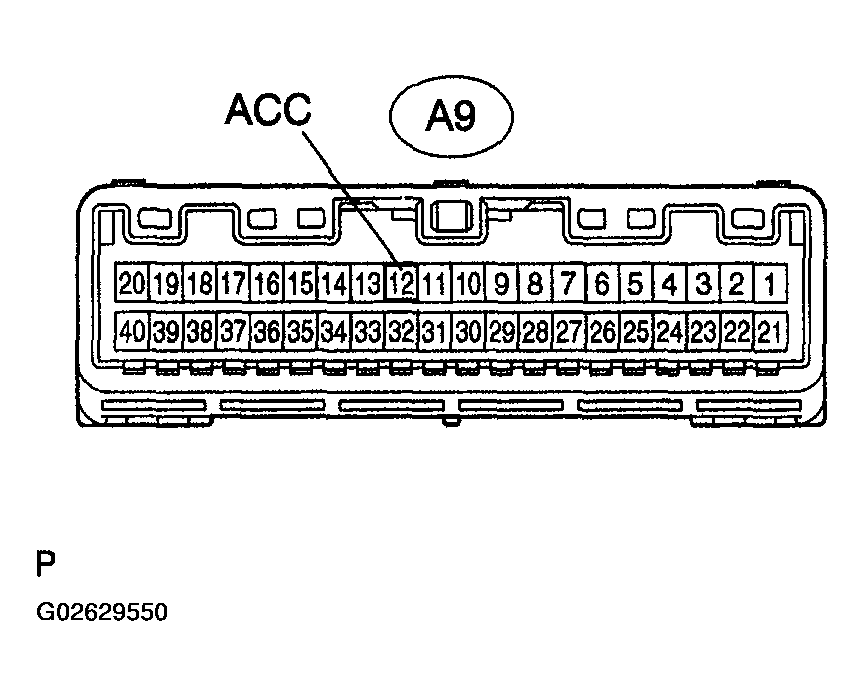

    Fig 1: Checking Harness & Connector (Air Conditioning Amplifier - Battery)
    G02629550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
