Name Plate: Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

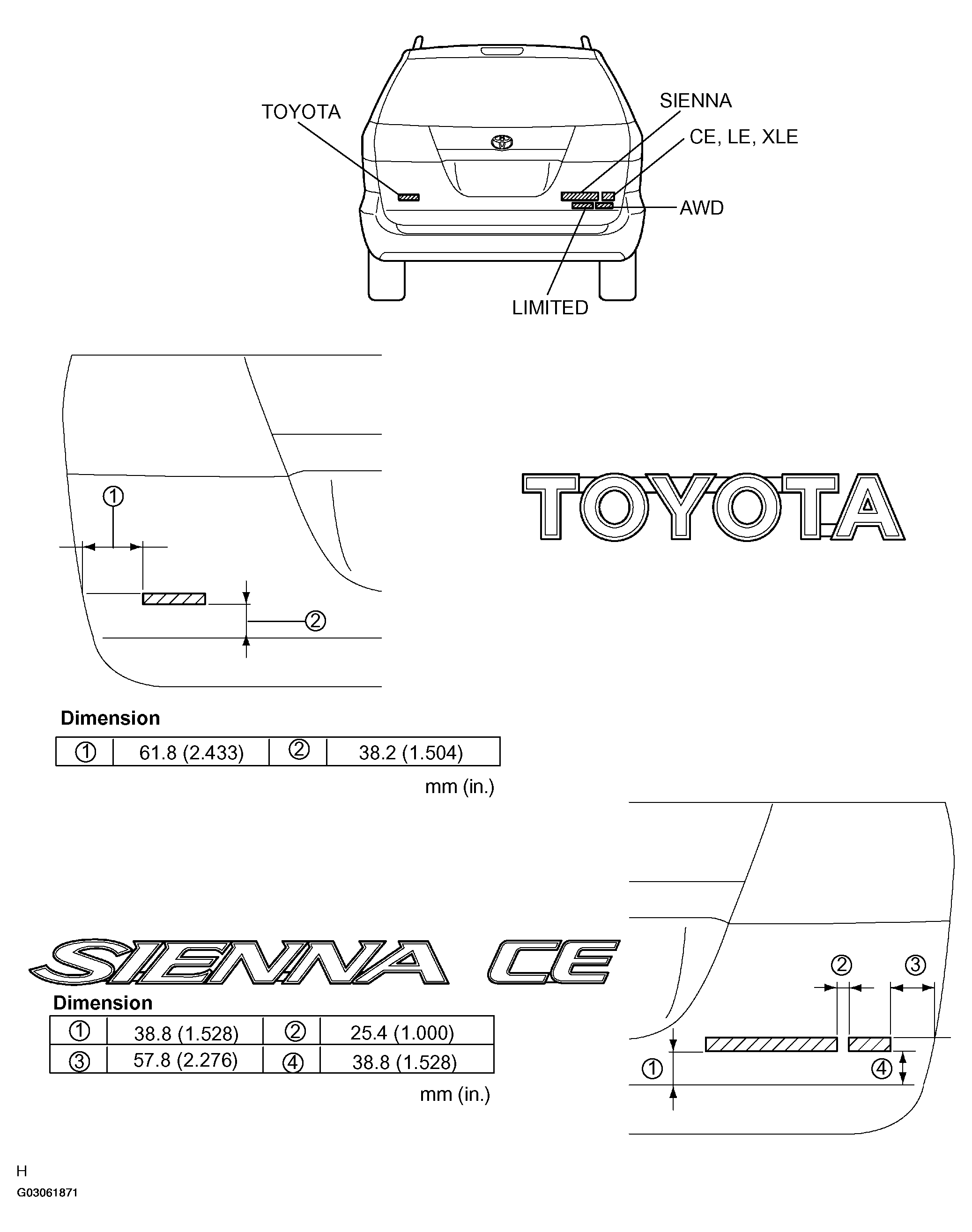

Fig 1: Identifying Name Plate Replacement (1 Of 3)
G03061871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

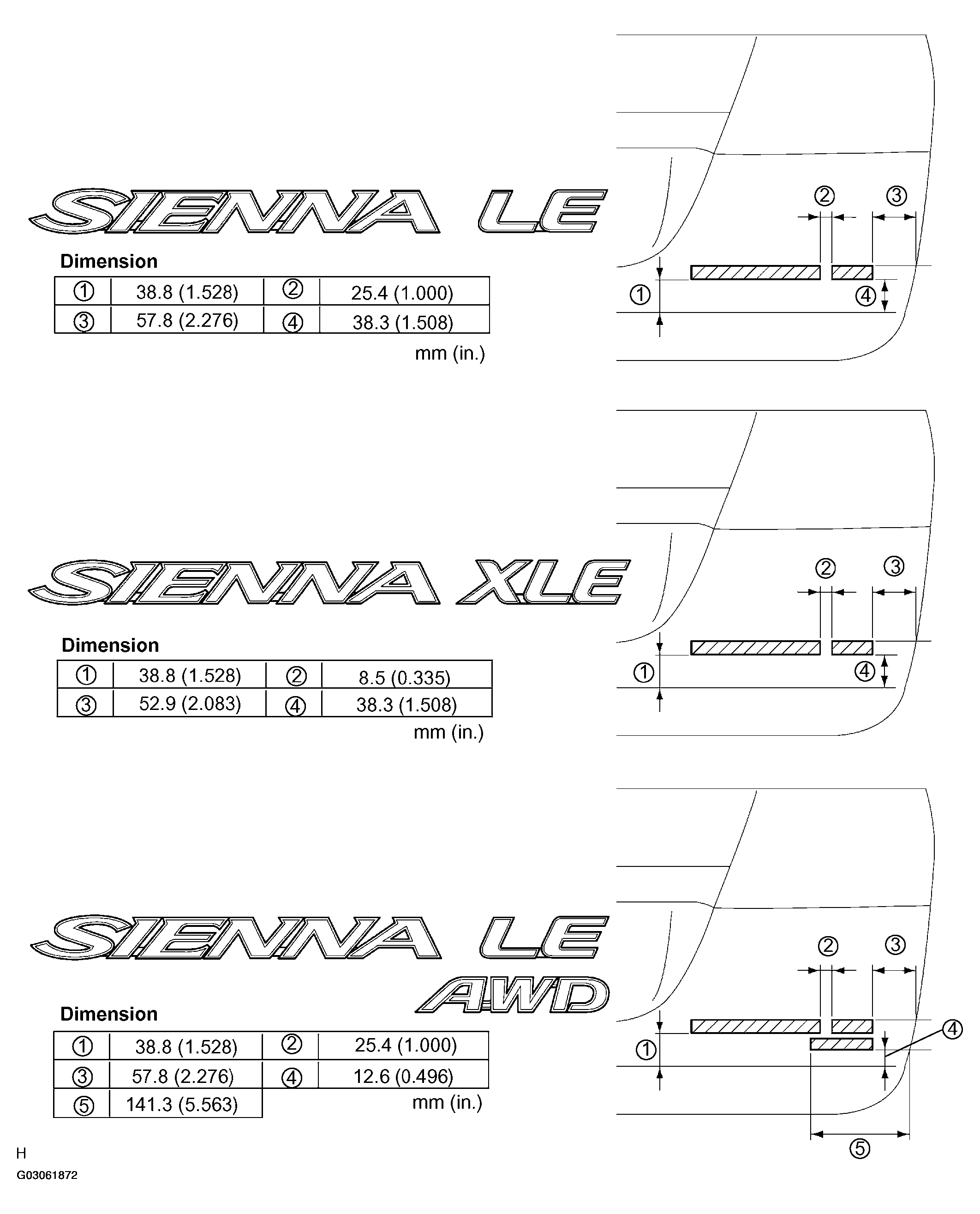

Fig 2: Identifying Name Plate Replacement (2 Of 3)
G03061872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

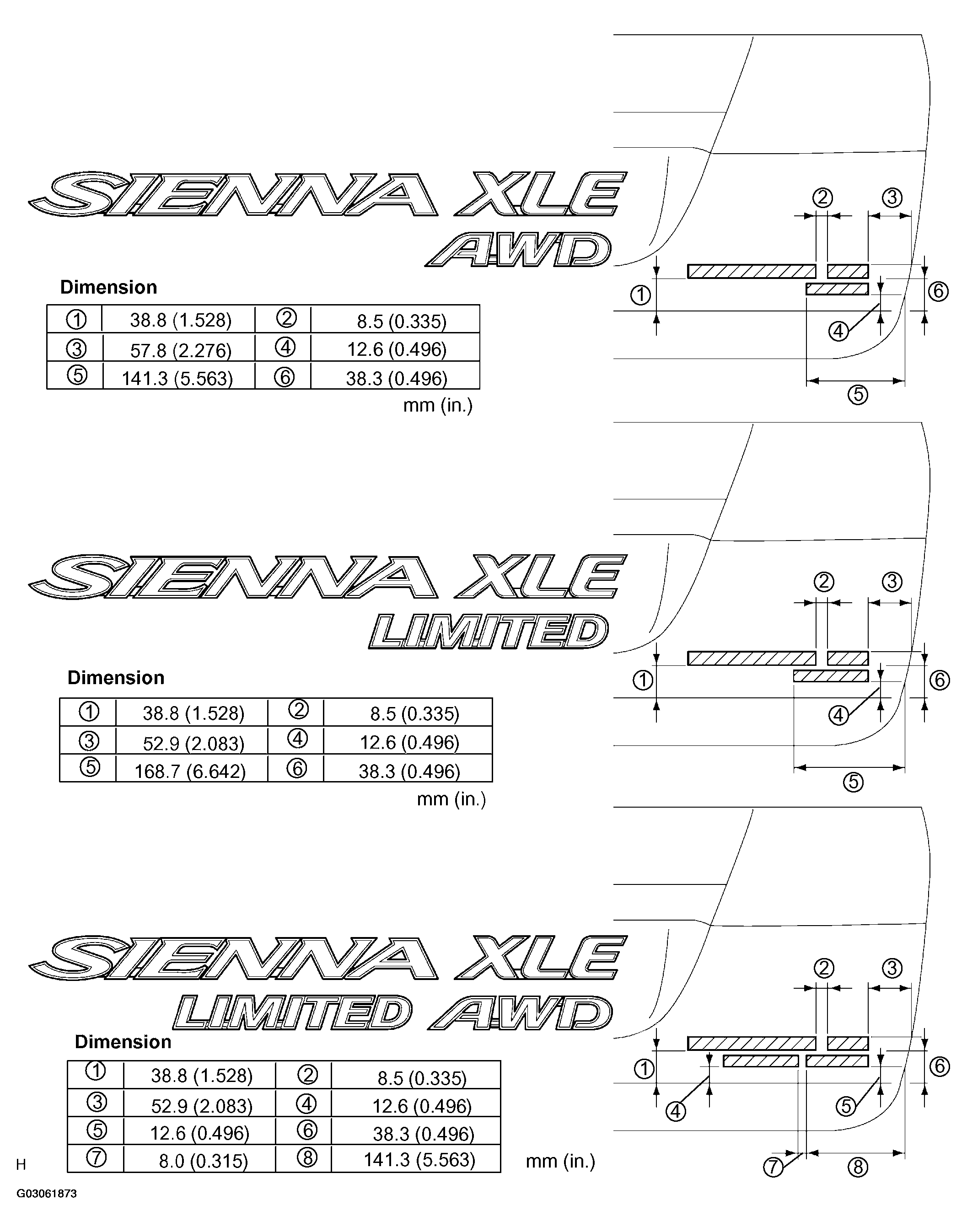

Fig 3: Identifying Name Plate Replacement (3 Of 3)
G03061873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
