Terminals Of ECM

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

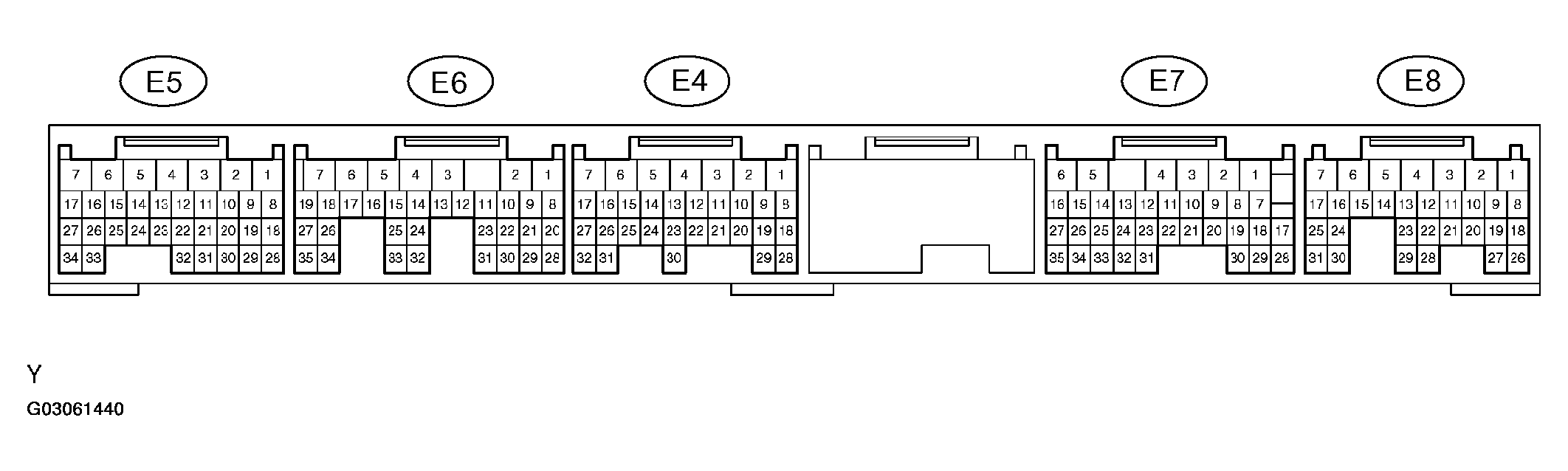

Fig 1: Identifying ECM Terminals (1 Of 2)
G03061440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

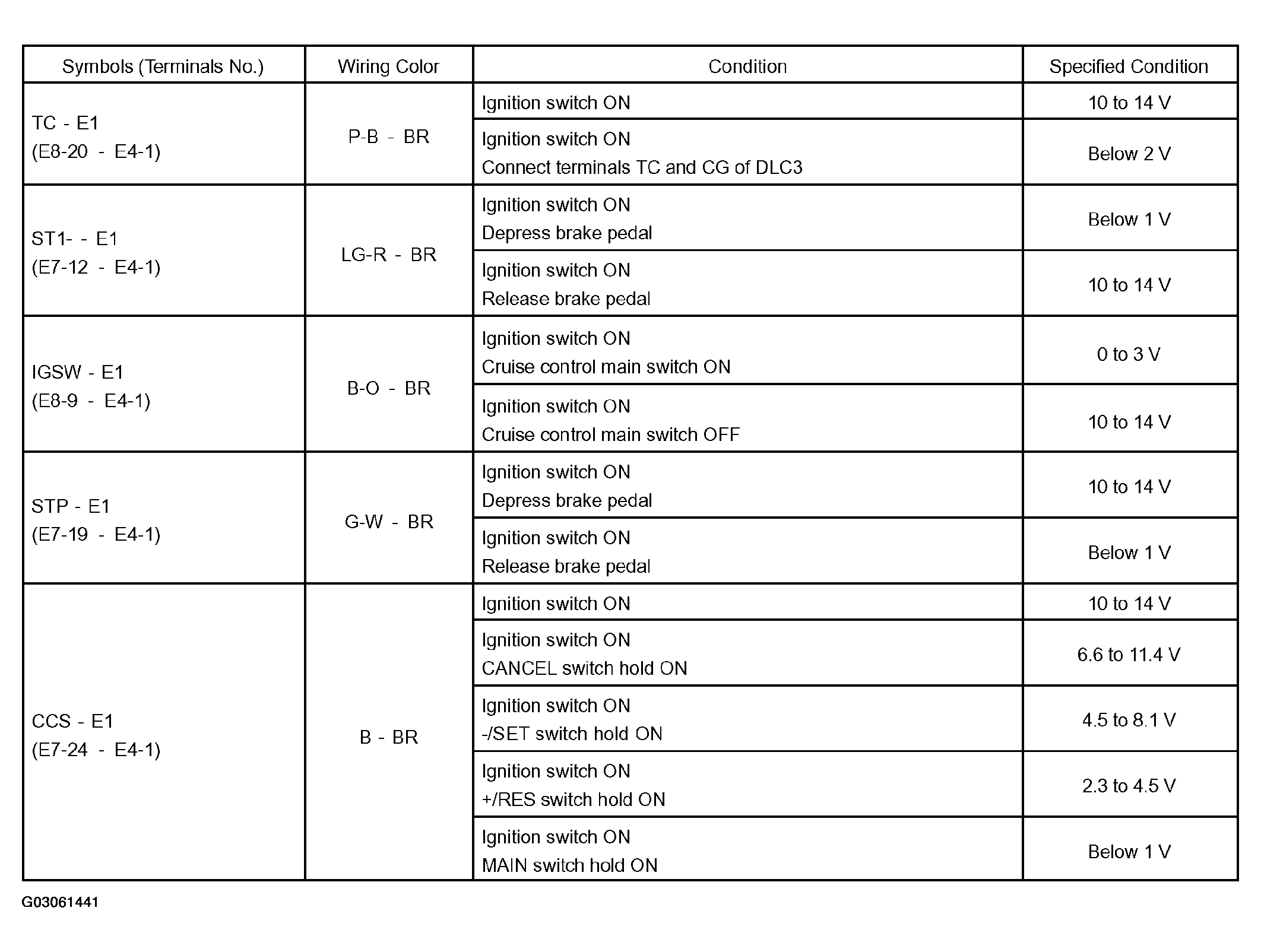

Fig 2: Identifying ECM Terminals (2 Of 2)
G03061441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
