Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Check the trouble areas following the DTCs combination table (See PRE-CHECK ).

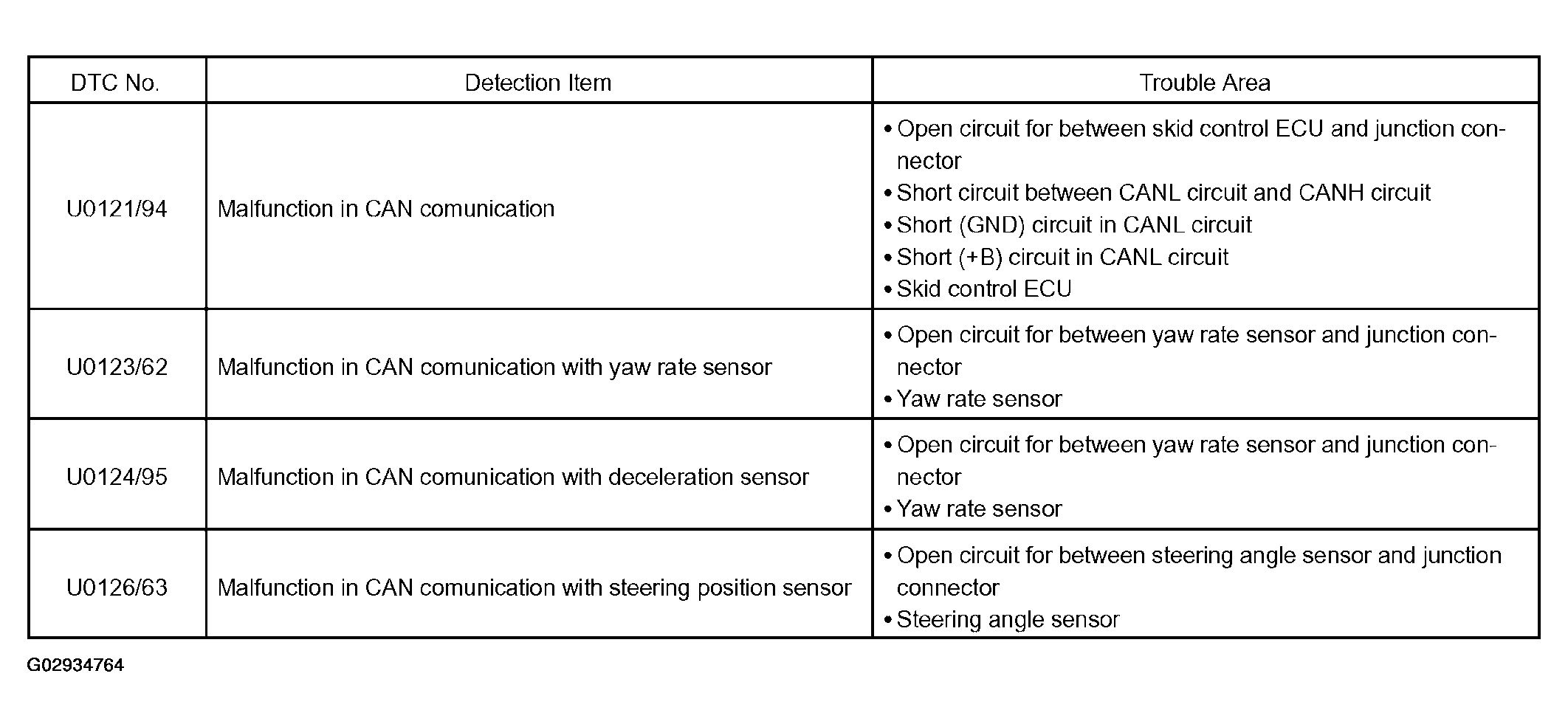

Fig 1: DTC Trouble Detection Item Table
G02934764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
