Park/Neutral Position Switch Assy: Replacement

Remove Front Floor Brace Center (See Propeller With Center Bearing Shaft Assembly )
Remove Rr Suspension Member Brace Rear Lower Lh (See Propeller With Center Bearing Shaft Assembly )
Remove Rr Suspension Member Brace Rear Lower Rh (See Propeller With Center Bearing Shaft Assembly )
Separate Oxygen Sensor (See Propeller With Center Bearing Shaft Assembly )
Remove Exhaust Pipe (See Propeller With Center Bearing Shaft Assembly )
Remove Front Floor Heat Insulator No. 1 (See Propeller With Center Bearing Shaft Assembly )
Separate Floor Shift Gear Shifting Rod Sub-Assy
1. Set The Shift Lever To N Position.

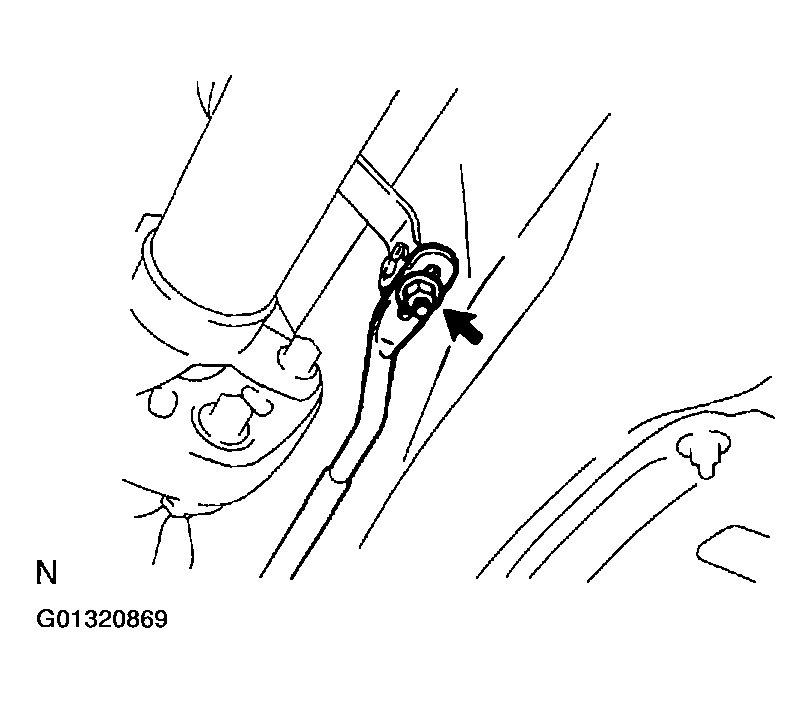

2. Remove The Nut And Disconnect The Rod.
Fig 1: Removing Nut And Disconnect Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Transmission Control Shaft Lever Rh
1. Disconnect The Park/Neutral Position Switch Connector.

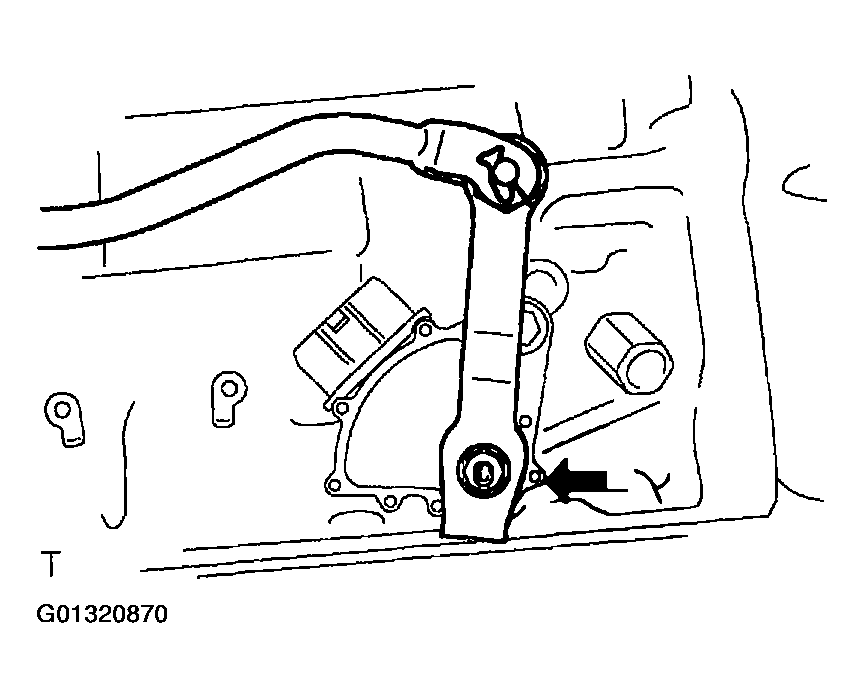

2. Remove The Nut And Control Shaft Lever With The Rod.
Fig 2: Removing Nut And Control Shaft Lever With Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Park/Neutral Position Switch Assy

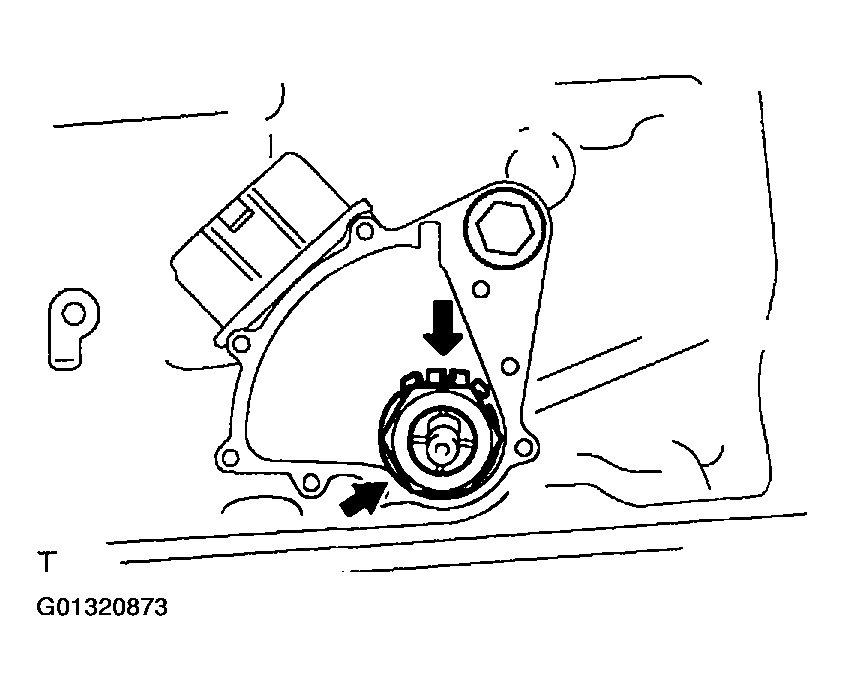

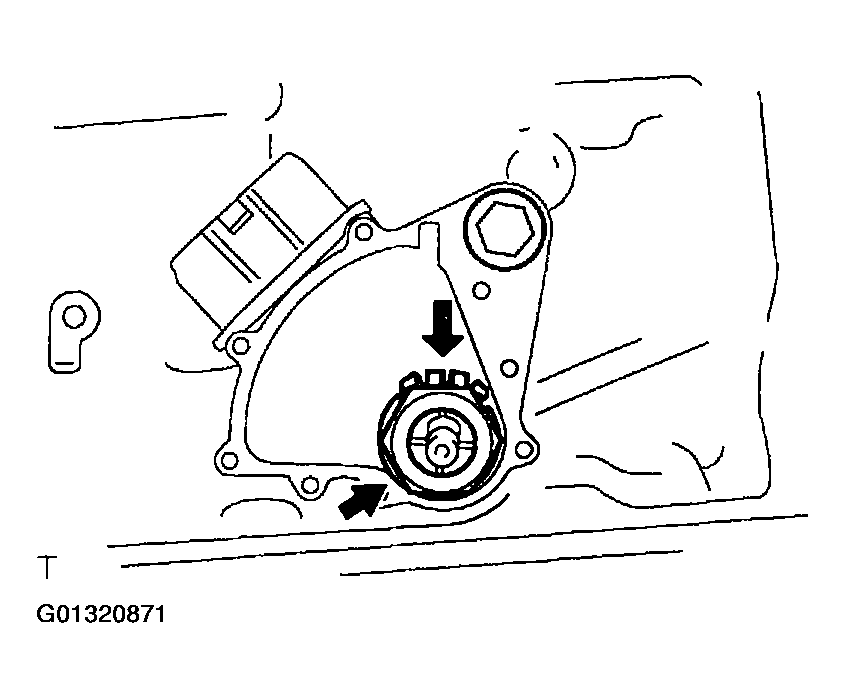

1. Pry Out The Lock Plate And Remove The Nut.
2. Remove The Bolt And Pull Out The Park/Neutral Position Switch.
Fig 3: Pull Out Park/Neutral Position Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Park/Neutral Position Switch Assy
1. Install The Park/Neutral Position Switch.

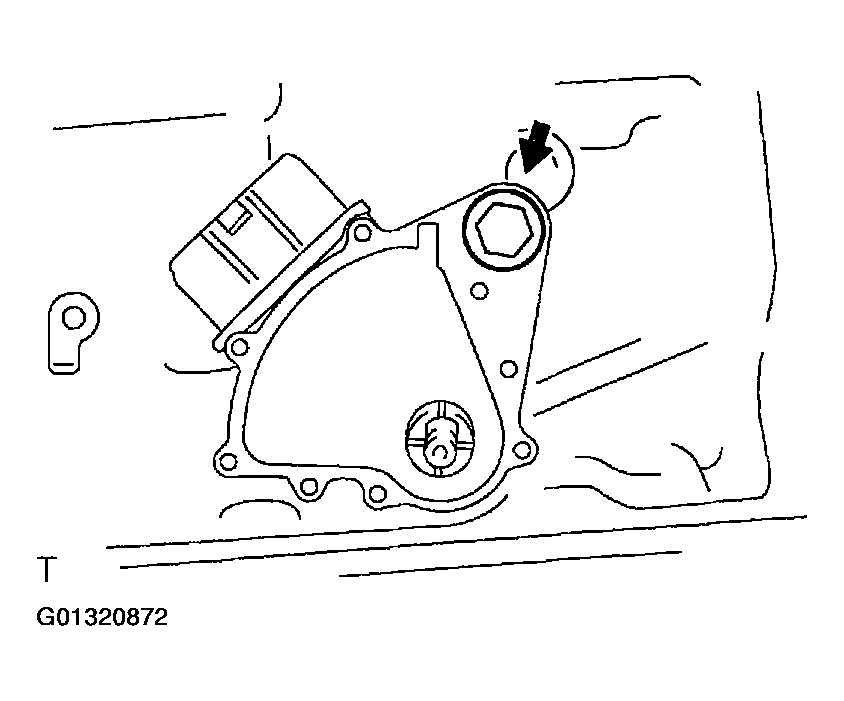

2. Temporarily Install The Bolt.

  Fig 4: Installing Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Place A New Lock Plate And Tighten The Nut. Torque: 6.9 N.M (70 Kgf.Cm, 61 In..Lbf)
4. Temporarily Install The Control Shaft Lever.

  Fig 5: Installing Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

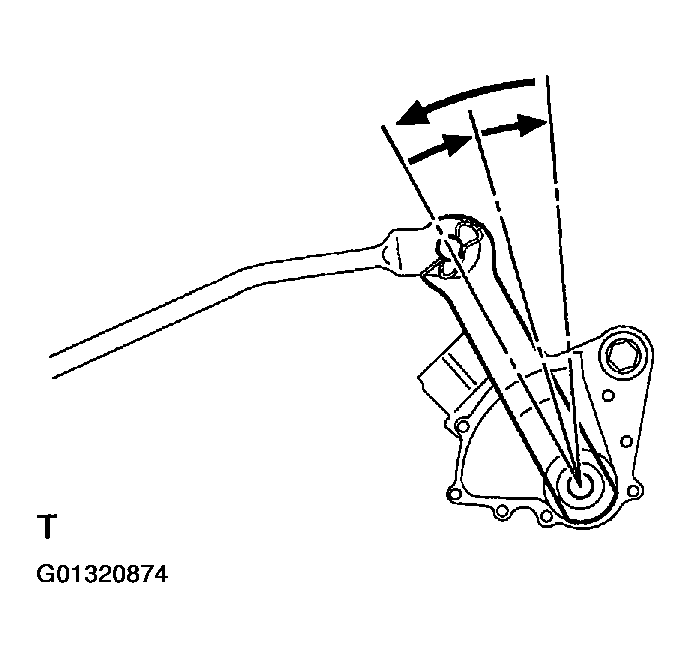

5. Turn The Lever Counterclockwise Until It Stops, Then Turn It Clockwise 2 Notches.
6. Remove The Control Shaft Lever.

  Fig 6: Removing Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

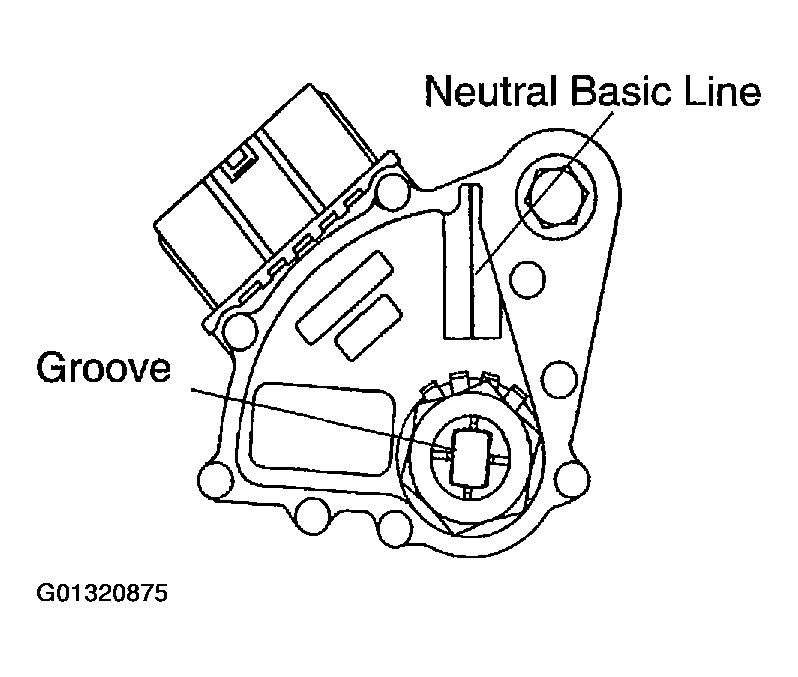

7. Align The Groove With Neutral Basic Line, (H) Hold The Switch In Position And Tighten The Bolt.
  Torque: 12.8 N.M (130 Kgf.Cm, 9 Ft.Lbf)

  Fig 7: Aligning Groove With Neutral Basic Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

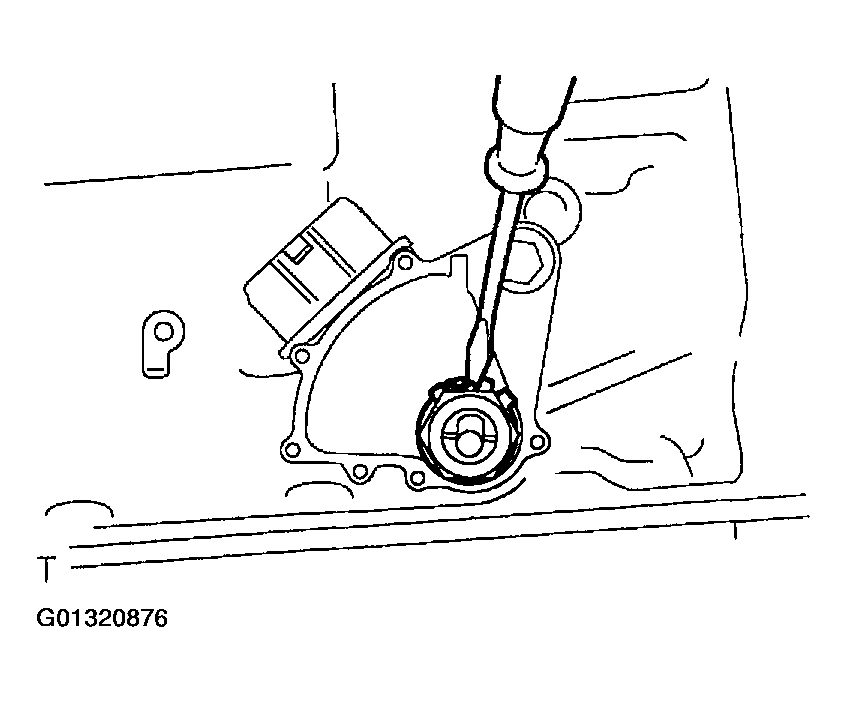

8. Using A Screwdriver, Stake The Nut With The Lock Plate.
Fig 8: Staking Nut With Lock Plate Using Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Transmission Control Shaft Lever Rh

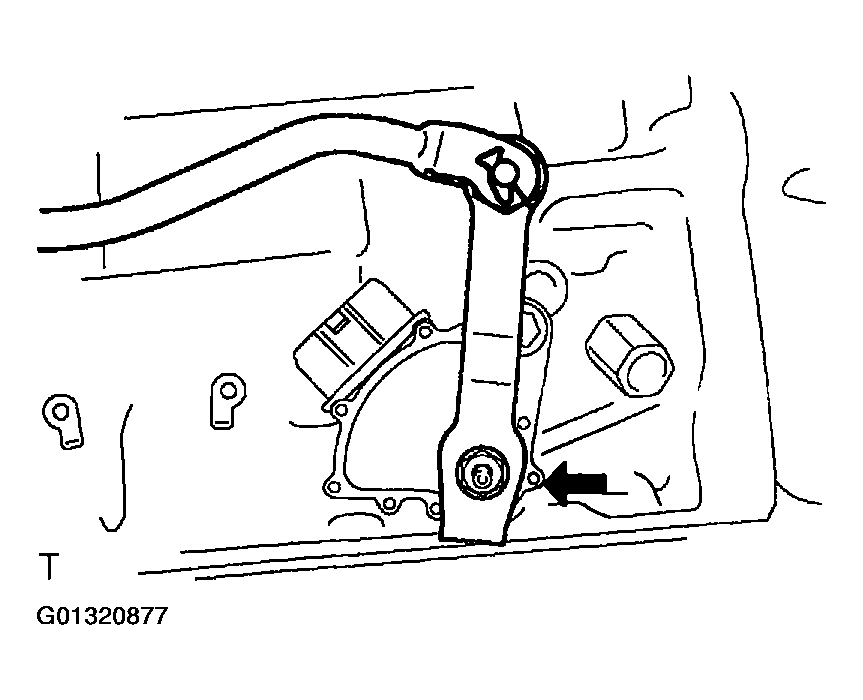

1. Install The Nut And Control Shaft Lever With The Rod.
  Torque: 15.7 N.M (160 Kgf.Cm, 12 Ft.Lbf)
Fig 9: Installing Nut And Control Shaft Lever With Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Connect Floor Shift Gear Shifting Rod Sub-Assy

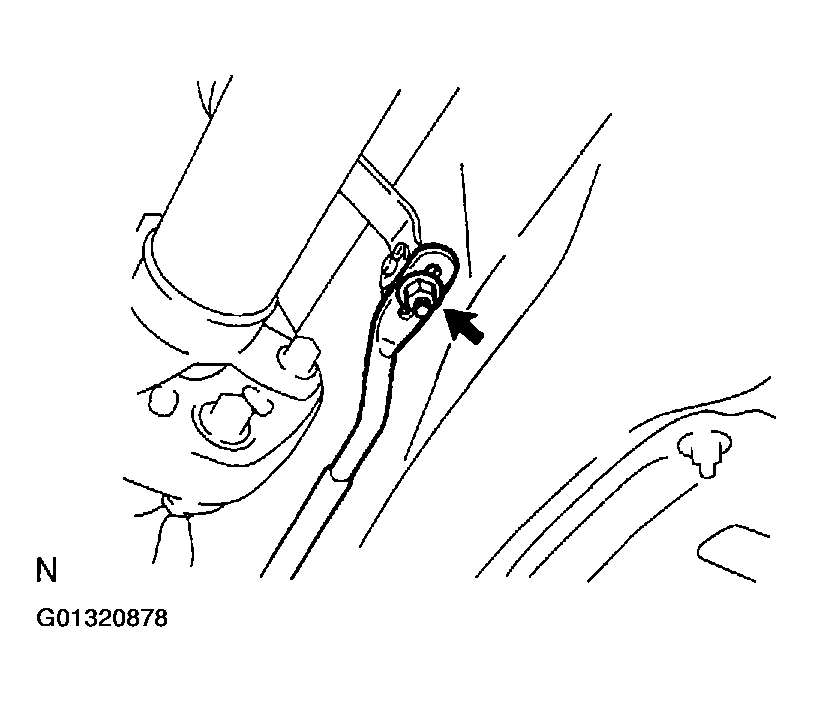

1. Temporarily Install The Rod To The Connecting Rod Swivel With The Nut.
Fig 10: Installing Rod To Connecting Rod Swivel With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Adjust Shift Lever Position (See Adjustment )
Install Front Floor Heat Insulator No. 1 (See Propeller With Center Bearing Shaft Assembly )
Install Exhaust Pipe (See Propeller With Center Bearing Shaft Assembly )
Install Oxygen Sensor (See Propeller With Center Bearing Shaft Assembly )
Install Rr Suspension Member Brace Rear Lower Rh (See Propeller With Center Bearing Shaft Assembly )
Install Rr Suspension Member Brace Rear Lower Lh (See Propeller With Center Bearing Shaft Assembly )
Install Front Floor Brace Center (See Propeller With Center Bearing Shaft Assembly )
Inspect Shift Lever Position (See Adjustment )
Inspect Park/Neutral Position Switch Assy (See adjustment )
Check Exhaust Gas Leak
