Laser Sensor Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

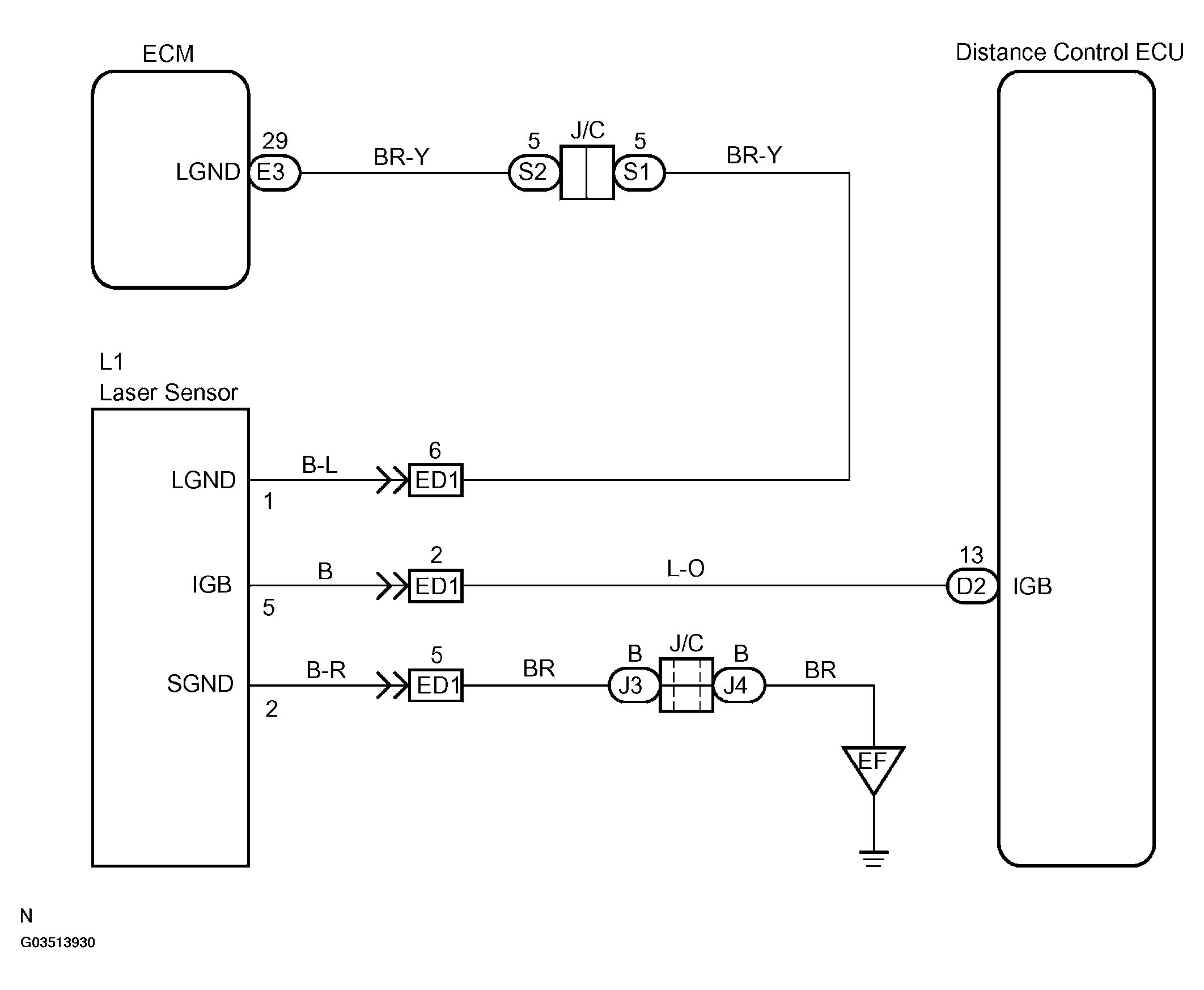

Fig 1: Wiring Diagram
G03513930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
