Inspection Procedure

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position and turn the hand-held tester main switch on.
3. Select the item below in the ACTIVE TEST and then check the relay operation.

BODY NO.5 (MULTIPLEX NETWORK FRONT LIGHT ECU):

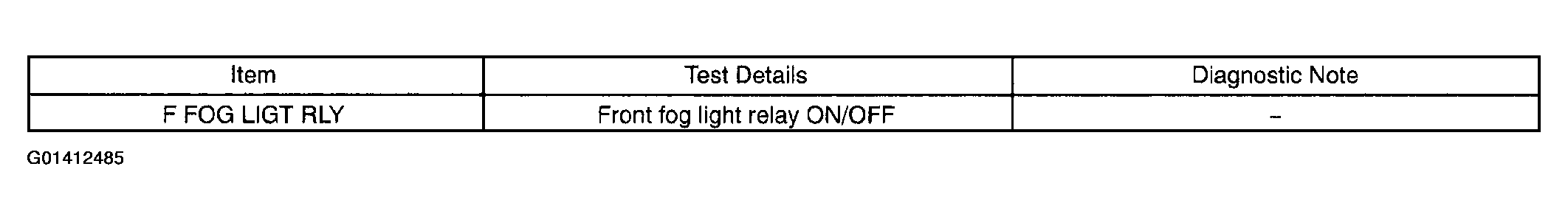

Fig 1: Diagnostic Chart (Multiplex Network Front Light ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Front fog lamp comes on.

1. NG: Go to step 2
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )

1. Remove the FOG relay from the engine room No.2 R/B.

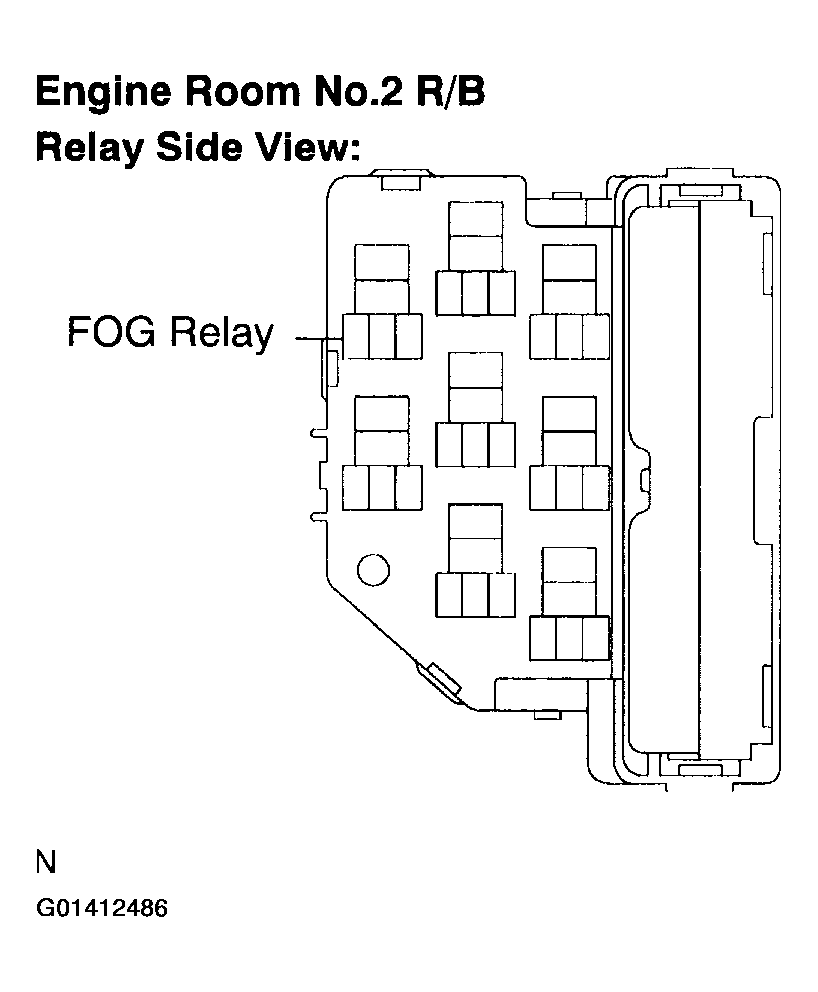

   Fig 2: Locating Fog Relay Connected To Engine Room No.2 R/B

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the FOG relay continuity.

1. Measure the resistance according to the value (s) in the figure Fig 3 below.

Standard:

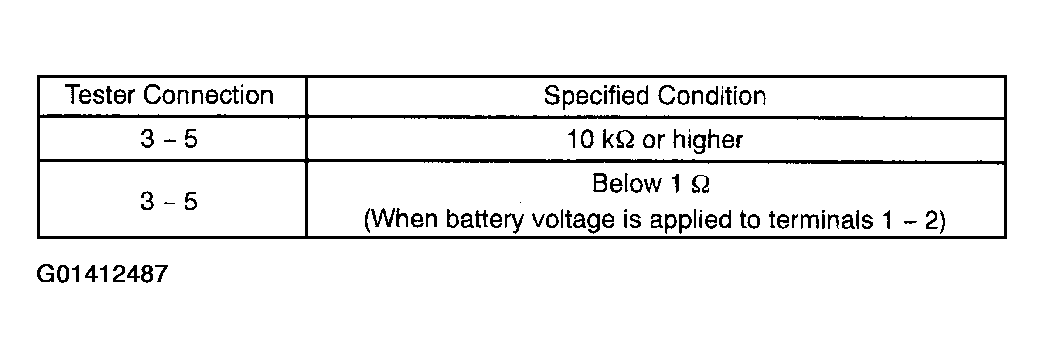

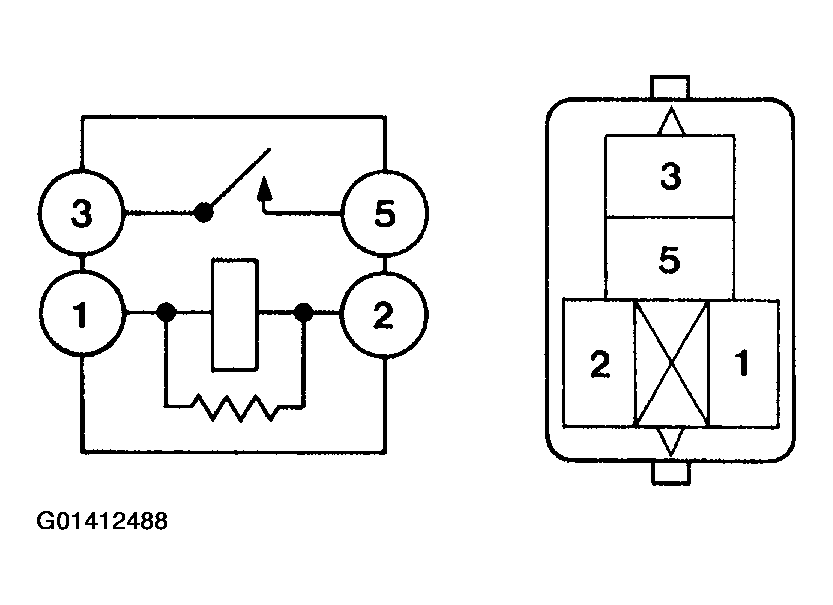

Fig 3: Standard Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE RELAY
   Fig 4: Inspecting Fog Relay Continuity

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. OK: Go to Next Step.

1. Using a service wire, connect R5 and R6 in the engine room No.2 R/B.

OK: Fog lamp comes on.

1. NG: Go to step   5
   Fig 5: Inspecting Multiplex Network Body ECU (Engine Room No.2 R/B)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. OK: Go to Next Step.

1. Disconnect 2-3 connector from the engine room No. R/B.
2. Remove the front light ECU from the engine room No.2 R/B.

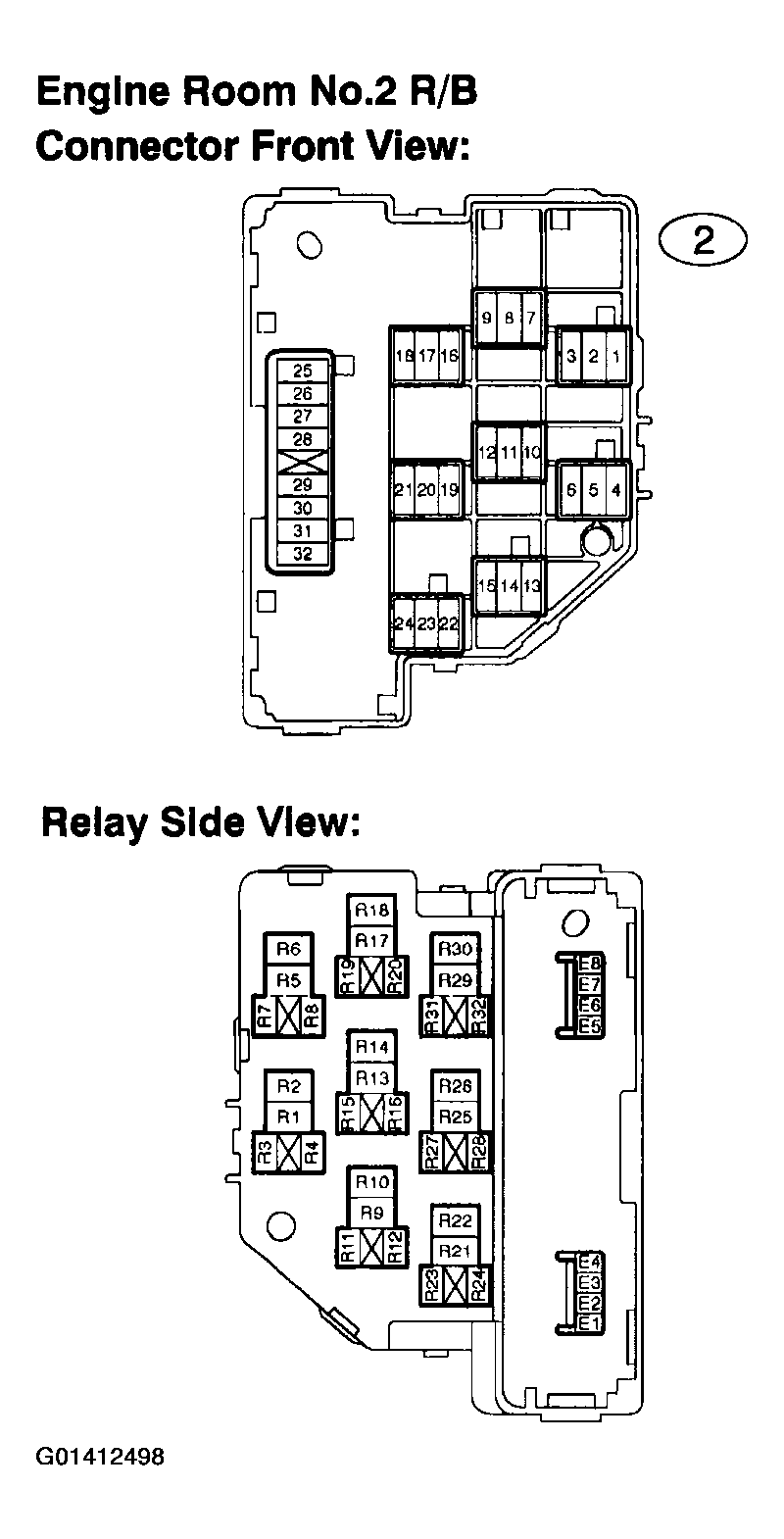

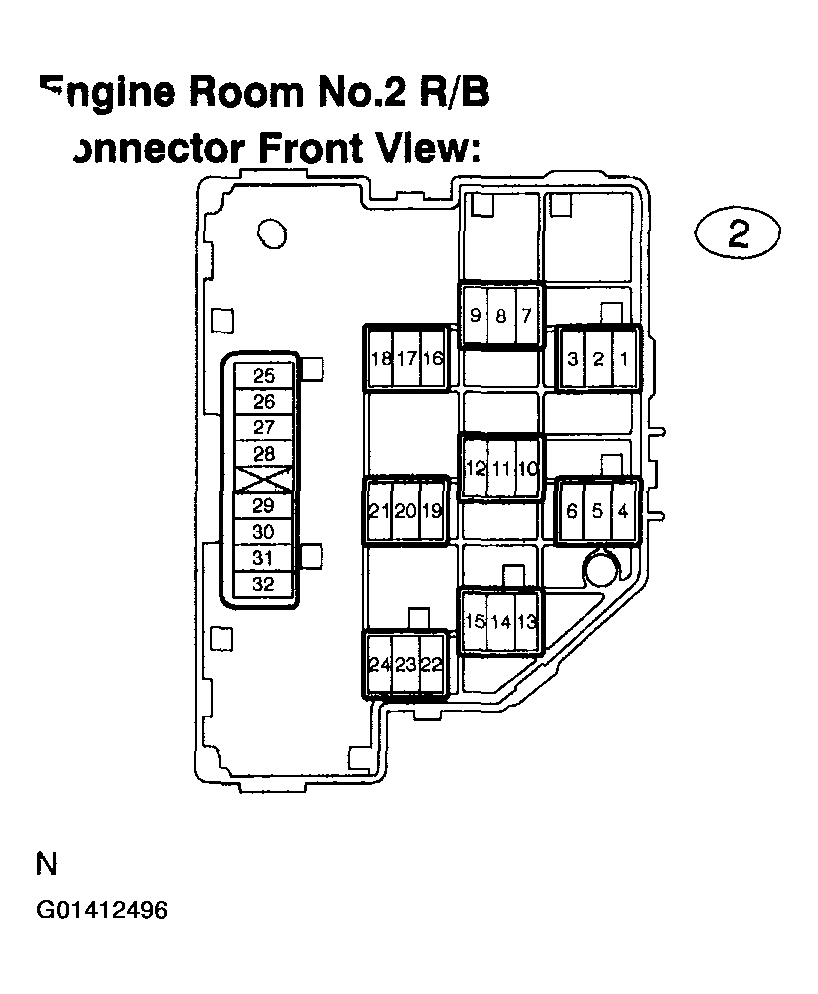

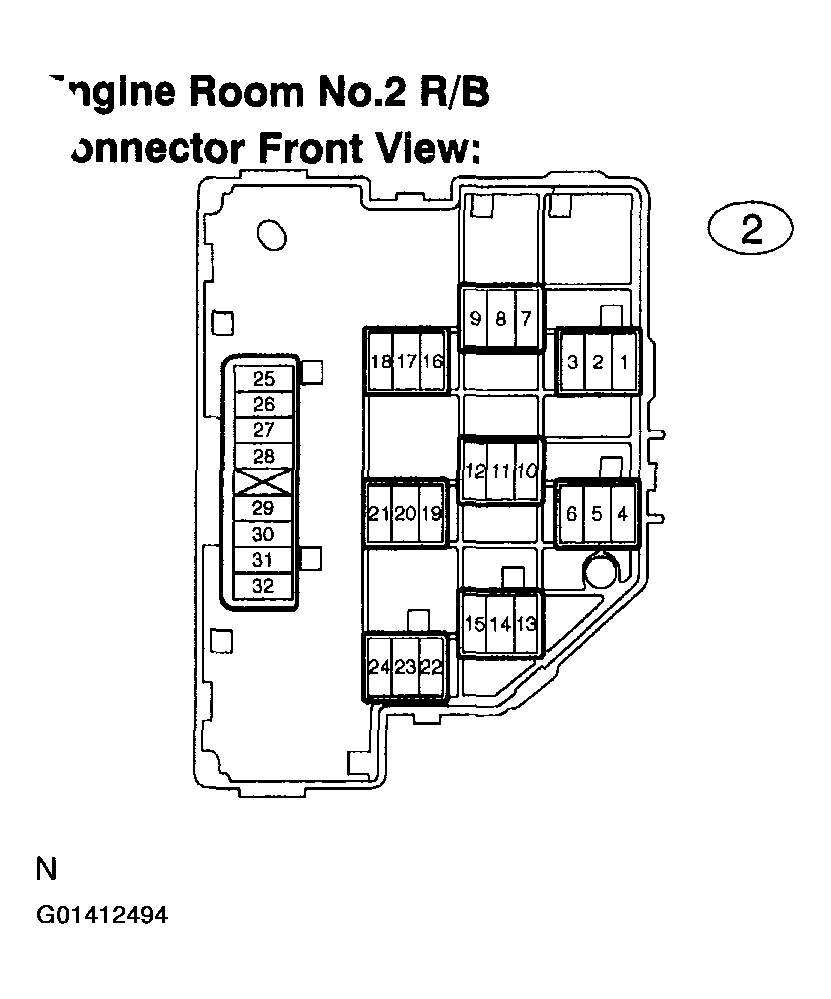

   Fig 6: Identifying Connector Terminals Of Engine Room No.2 R/B (Connector Front View)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a service wire, connect R7 and R8 in the engine room No.2 R/B.

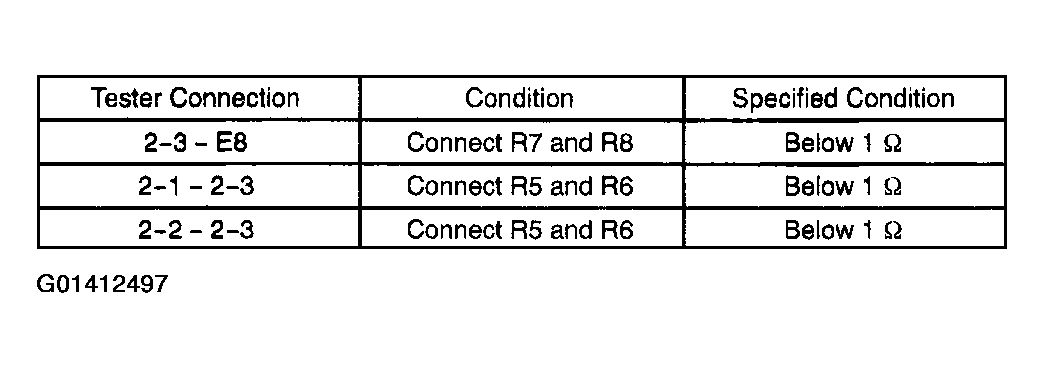

4. Measure the resistance according to the value (s) in the figure Fig 7 below.

Standard:

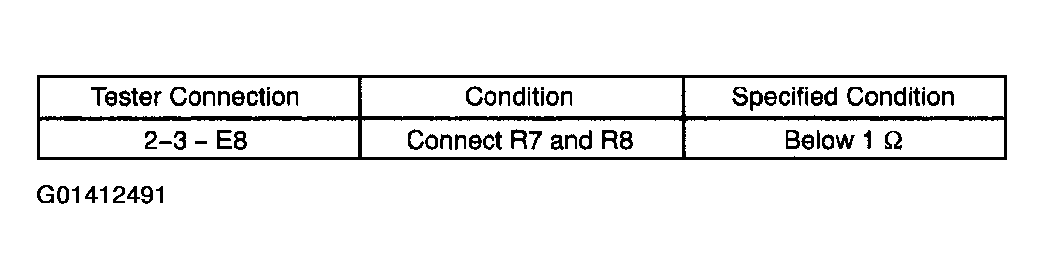

Fig 7: Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE MULTIPLEX NETWORK BODY ECU (ENGINE ROOM No.2 R/B)

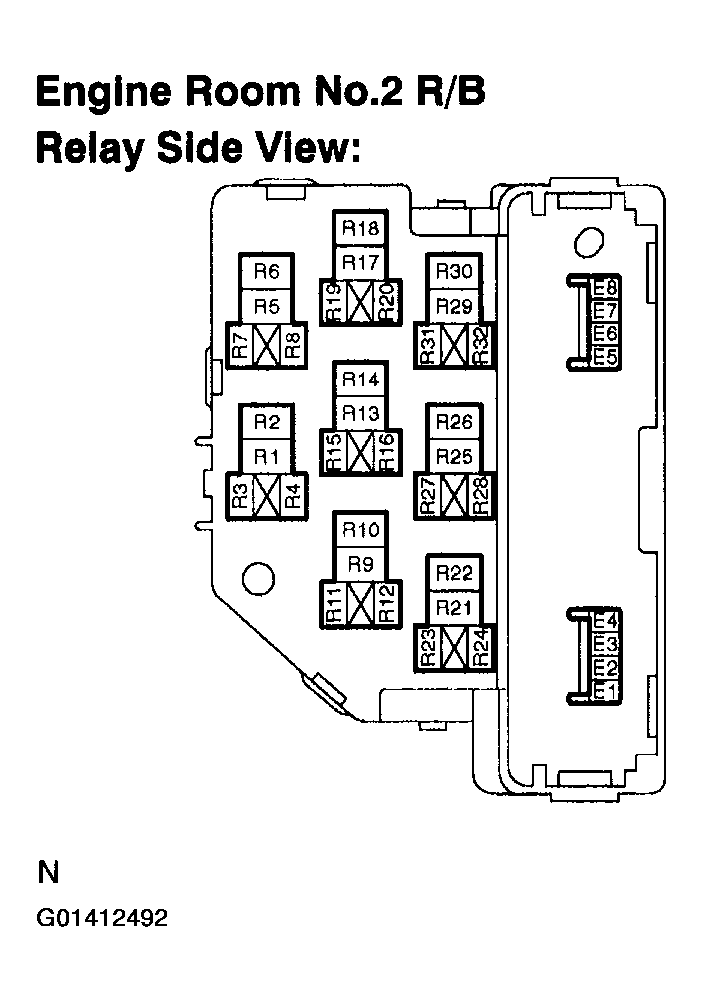

   Fig 8: Identifying Connector Terminals Of Engine Room No.2 R/B (Relay Side View)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )

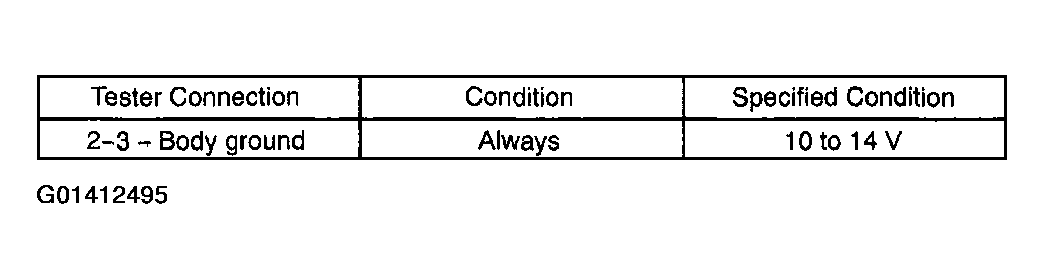

1. Measure the voltage according to the value (s) in the figure Fig 9 below.

HINT:

Inspect the side suspected malfunctioning part is on.

Standard:

Fig 9: Tester Connection Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: Go to step 6
   Fig 10: Inspecting Multiplex Network Body ECU (Engine Room No.2 R/B)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (EACH OF FOG LAMP CIRCUIT)

1. Disconnect 2-3 connector from the engine room No.2 R/B.

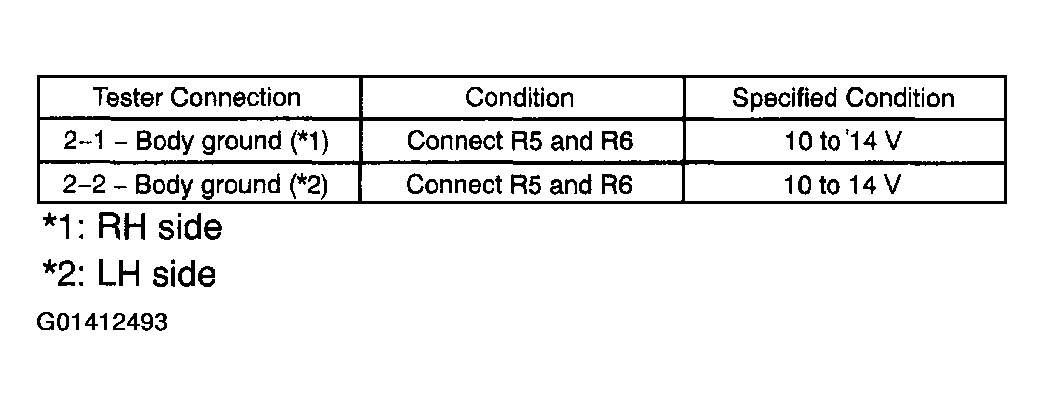

2. Measure the voltage according to the value (s) in the figure Fig 11 below.

Standard:

Fig 11: Voltage Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   Fig 12: Checking Harness And Connector (Power Source Circuit)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. OK: Go to Next Step.

1. Remove the front light ECU from the engine room No.2 R/B.
2. Using a service wire, connect R7 and R8 of the engine room No.2 R/B.
3. Measure the resistance according to the value (s) in the figure Fig 13 below.

Standard:

Fig 13: Resistance Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE MULTIPLEX NETWORK BODY ECU (ENGINE ROOM No.2 R/B)
   Fig 14: Inspecting Multiplex Network Body ECU (Engine Room No.2 R/B)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )
