Inspection Procedure

  1. CHECK WIRE HARNESS (ECU <--> POWER WINDOW REGULATOR MOTOR RH)
    1. Disconnect the P11 ECU and P16 power window motor RH connectors.
    2. Check the continuity between the connector terminals of P11 and P16.

      Standard:

      Limit switch

      LIMIT SWITCH CONTINUITY CONDITIONS REFERENCE

      Symbols (Terminal No.) Specified condition
      LMT (P11-10) <--> LMT (P16-2) Continuity
      SGND(P11-11) <-->E (P16-6) Continuity

      Pulse sensor

      PULSE SENSOR CONTINUITY CONDITIONS REFERENCE

      Symbols (Terminal No.) Specified condition
      PLS (P11-21) <--> PLS (P16-5) Continuity
      SGND (P11-11) <--> E (P16-6) Continuity

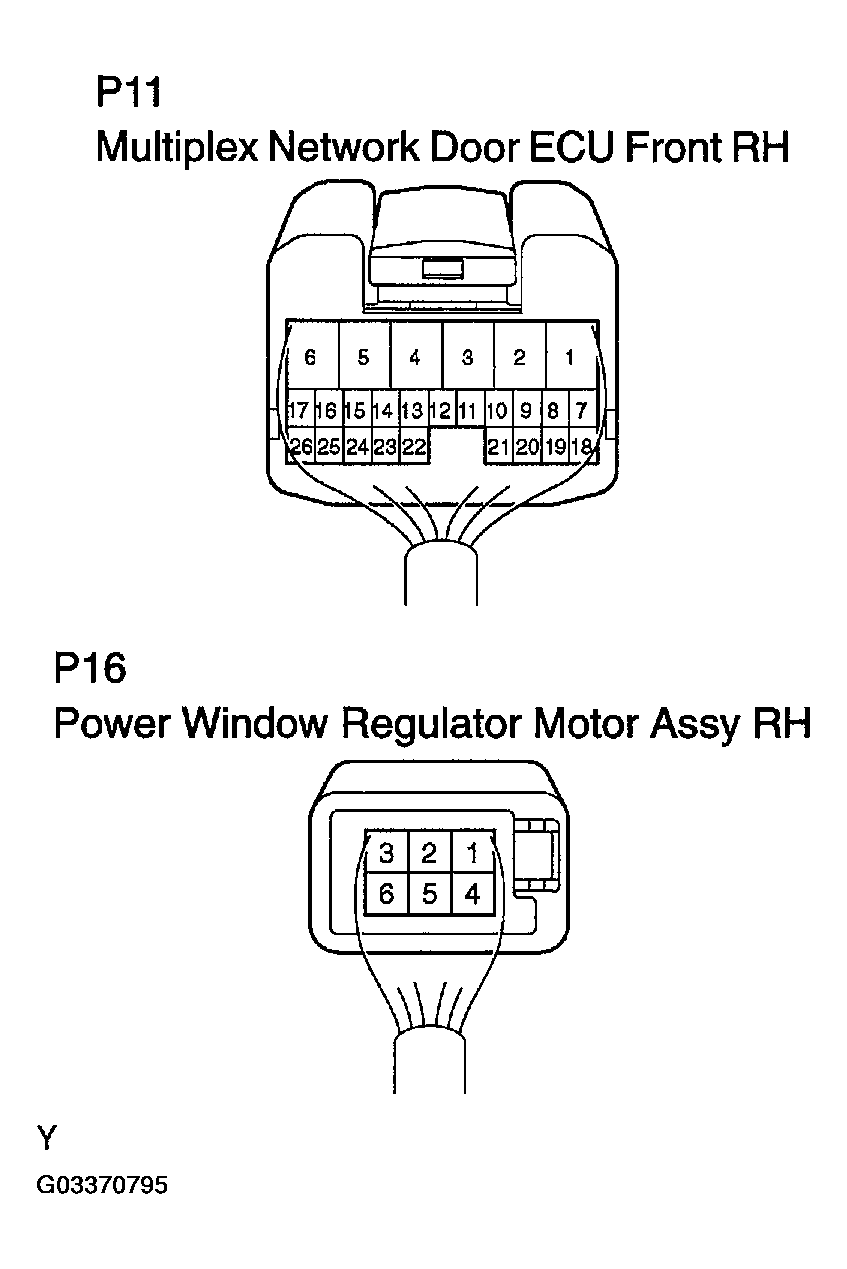

      Fig 1: Checking Wire Harness (ECU)
      G03370795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH
