Position Cannot Be Memorized: Wiring Diagram

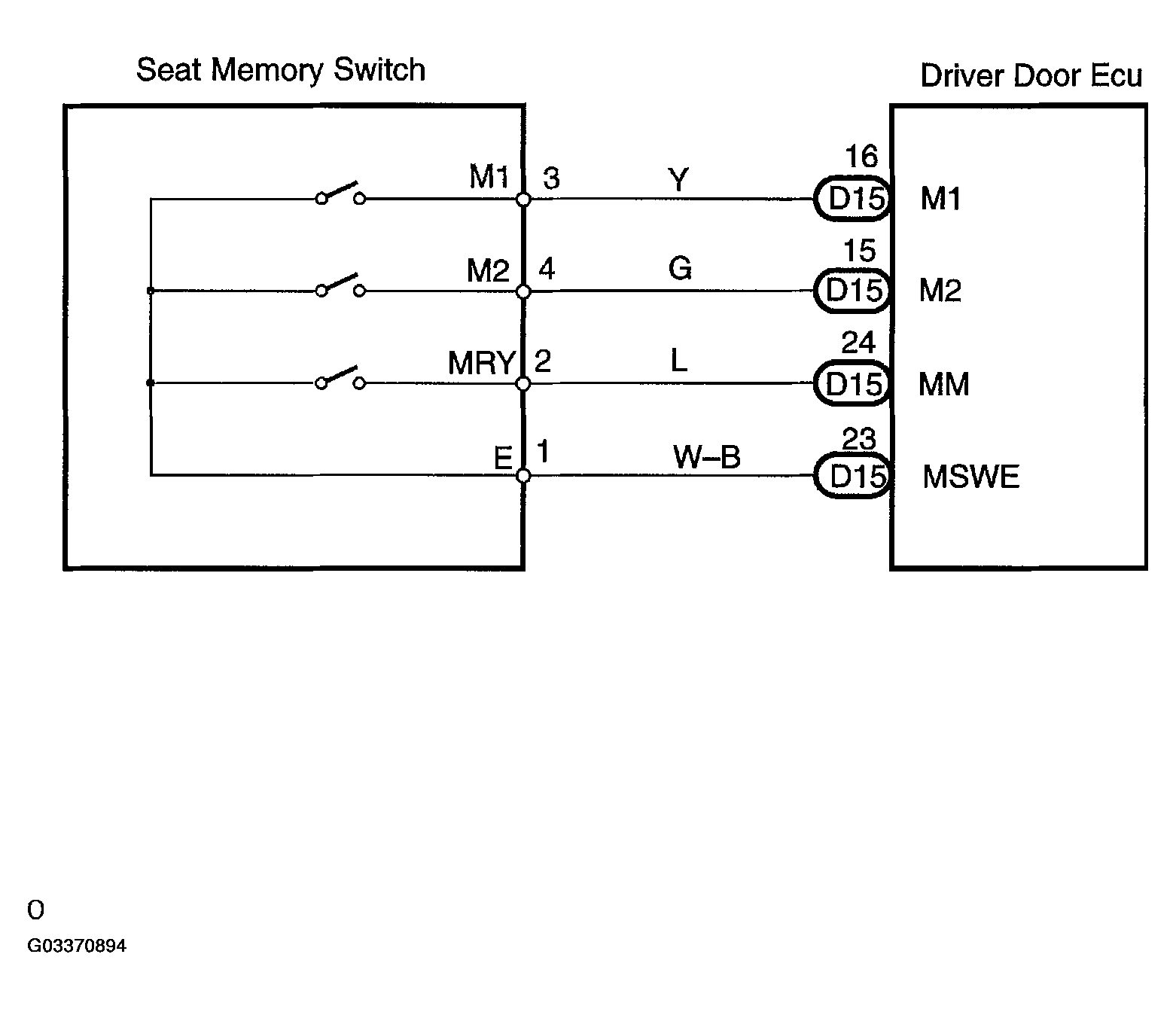

Fig 1: Wiring Diagram - Seat Memory Switch

G03370894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
