Mirror Switch Circuit (Flow Chart 1): Wiring Diagram

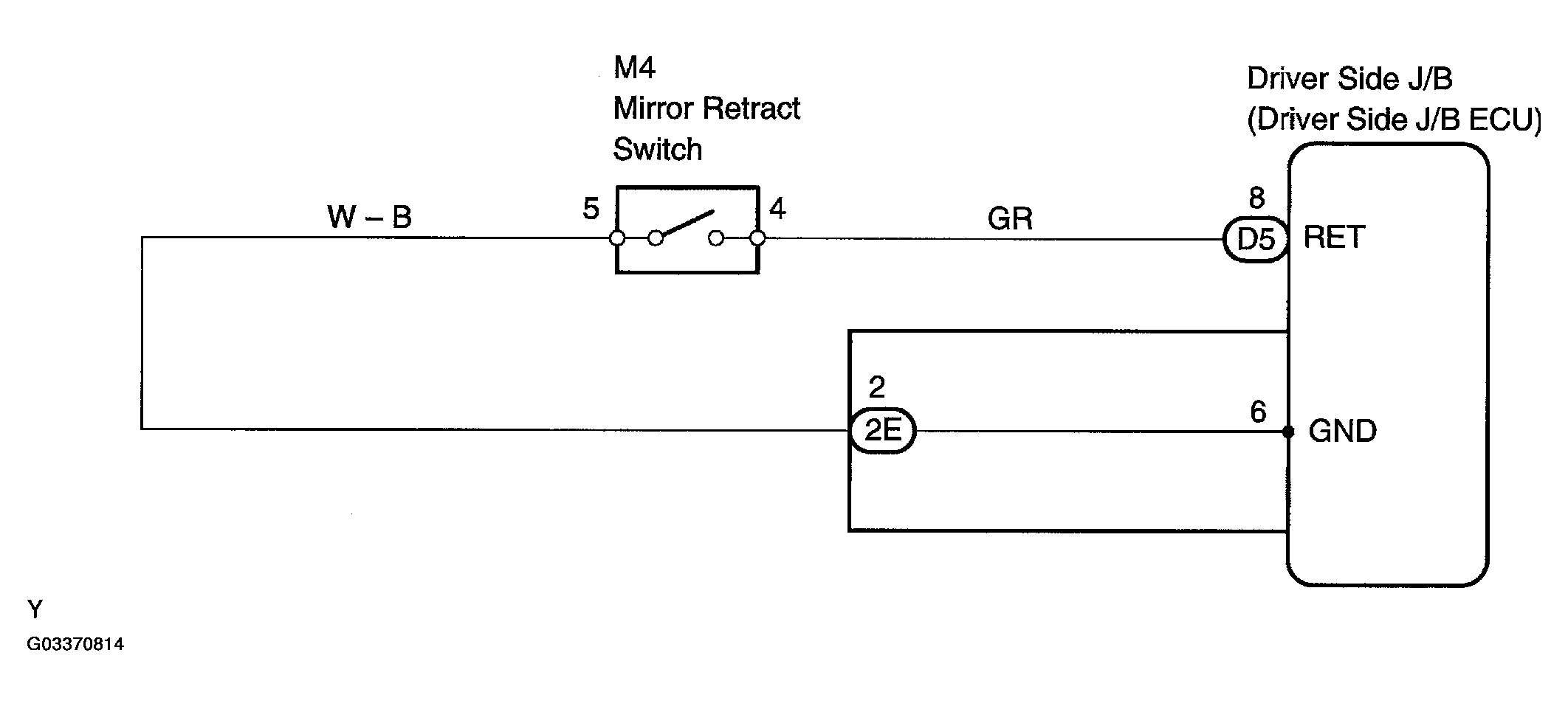

Fig 1: Wiring Diagram - Mirror Switch Circuit

G03370814

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
