Inspection Procedure

1. NO: Go to step   3
2. YES: GO TO NEXT STEP

1. ACTIVE TEST
   1. Make a judgement of good or bad and find out a malfunctioning part by the active test.

   Standard:

DOOR ECU

HINT:

• If the driver's side mirror malfunctions, proceed to OK-A.
• If the passenger's side mirror malfunctions, proceed to OK-B.

1. OK-A: CHECK AND REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK-B: CHECK AND REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
3. NG: Go to step   4

1. Check that the mirror operates when the battery voltage is applied to the door ECU connector.

HINT:

• If the driver's side mirror malfunctions, proceed to OK-A.
• If the passenger's side mirror malfunctions, proceed to OK-B.

1. OK-A: CHECK AND REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK-B: CHECK AND REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
3. NG: Go to step 4

1. Check the voltage between each terminal of the door ECU that does not perform the retraction operation.
   1. Driver door ECU

      Standard:

      SPECIFIED CONDITION CHART



      Terminals	Specified condition
      D19-6 <--> D 19-1 (BDR <--> GND)	10-14V

   2. Passenger door ECU

      Standard:

      SPECIFIED CONDITION CHART



      Terminals	Specified condition
      P11-6 <--> P11-1 (BDR -->GND)	10-14V

1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP

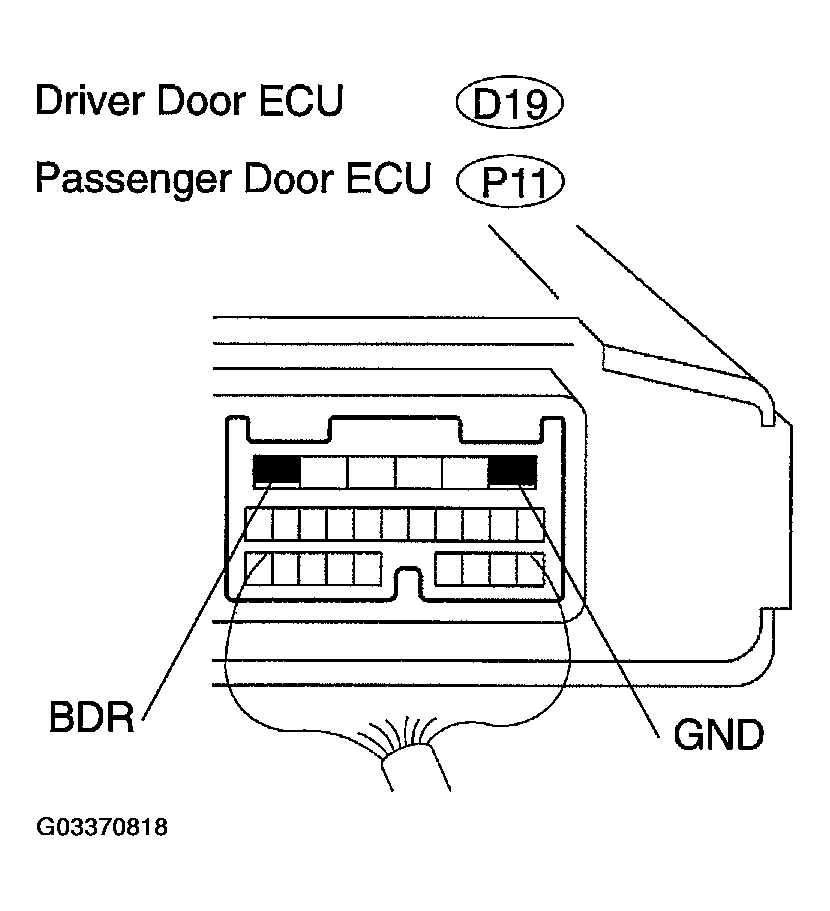

Fig 1: Identifying Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the continuity between each terminal of the outer rear view mirror that does not perform the retraction operation.

   Standard:

   SPECIFIED CONDITION CHART



   Terminals	Specified condition
   3 <--> 11	Continuity

   Fig 2: Identifying Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• In case of the driver's side wire harness, proceed to OK-A.
• In case of the passenger's side wire harness, proceed to OK-B.
• If the driver's side mirror malfunctions, proceed to NG-A.
• If the passenger's side mirror malfunctions, proceed to NG-B.

1. OK-B: CHECK AND REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. NG-A: REPLACE OUTER REAR VIEW MIRROR ASSY LH
3. NG-B: REPLACE OUTER REAR VIEW MIRROR ASSY RH
4. OK-A: CHECK AND REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
