Inspection Procedure

1. NO: Go to step   3
2. YES: GO TO NEXT STEP

1. Using the hand-held tester, check the remote control switch condition by the data monitor.

   Standard:

DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

1. OK: REPLACE DRIVER SIDE JUNCTION BLOCK
2. NG: GO TO NEXT STEP

1. Check the continuity between each terminal of the outer mirror switch.
   1. Right/Left adjustment switch.

   Standard:

   SPECIFIED CONDITION CHART



   Switch position	Terminals	Specified condition
   LEFT	8 <--> 9	100 Ω
   RIGHT	8 <--> 9	Continuity

2. Mirror switch.

   Standard:

   SPECIFIED CONDITION CHART



   Switch position	Terminals	Specified condition
   UP	7 <--> 9	Approx. 100 Ω
   RIGHT	7 <--> 9	250 Ω
   DOWN	7 <--> 9	470 Ω
   LEFT	7 <--> 9	800 Ω

   Fig 1: Identifying Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE OUTER MIRROR SWITCH ASSY
2. OK: GO TO NEXT STEP

1. Disconnect the mirror switch and driver side J/B connectors.
2. Check the continuity between each terminal of the mirror switch vehicle's side connector and the driver side J/B vehicle's side connector (See BOTH OF DRIVER AND PASSENGER POWER MIRRORS CANNOT BE ADJUSTED MANUALLY FLOW CHART 3 CHART 3) ).

   Standard:

   SPECIFIED CONDITION CHART



   Terminals (Mirror SW - Driver J/B)	Specified condition
   R4-7 <--> D5-11 (M+ <--> M+)	Continuity
   R4-8 <--> D5-10 (MSW <--> MSW)	Continuity
   R4-9 <--> D5-7 (E <--> R/E)	Continuity

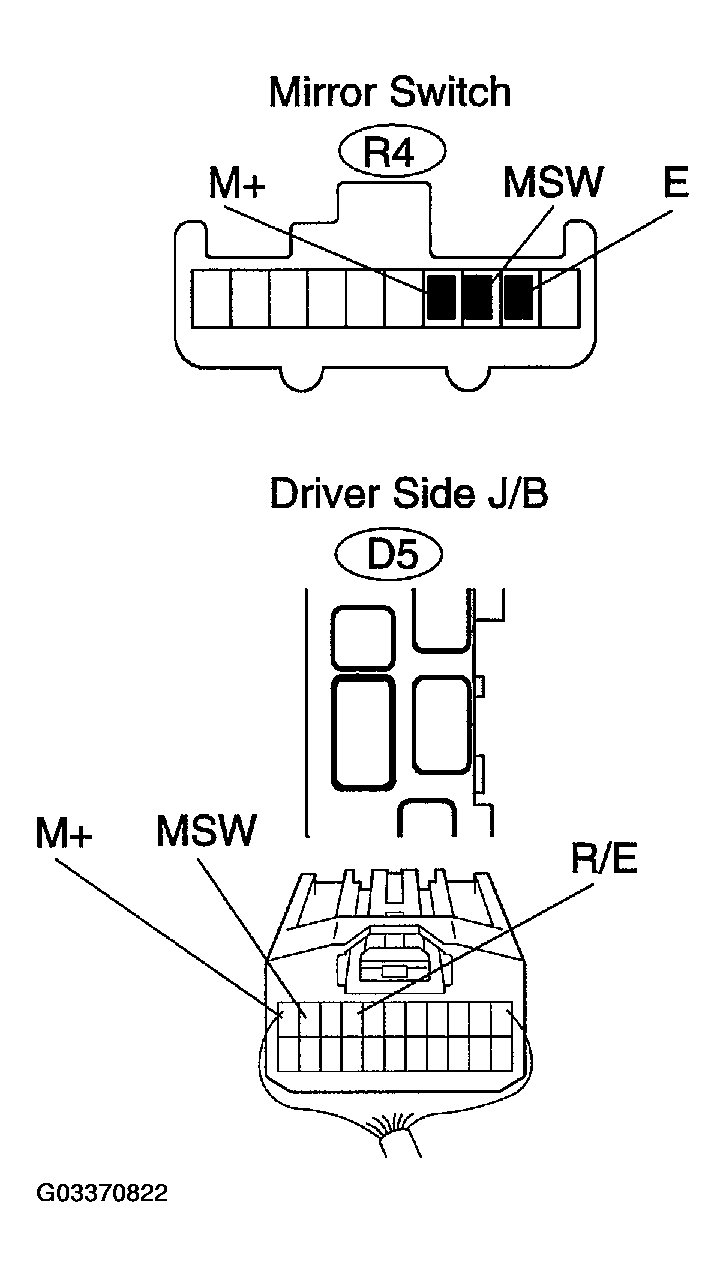

   Fig 2: Identifying Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE WIRE HARNESS
2. OK: REPLACE DRIVER SIDE JUNCTION BLOCK
