Cruise Control Switch Circuit: Wiring Diagram

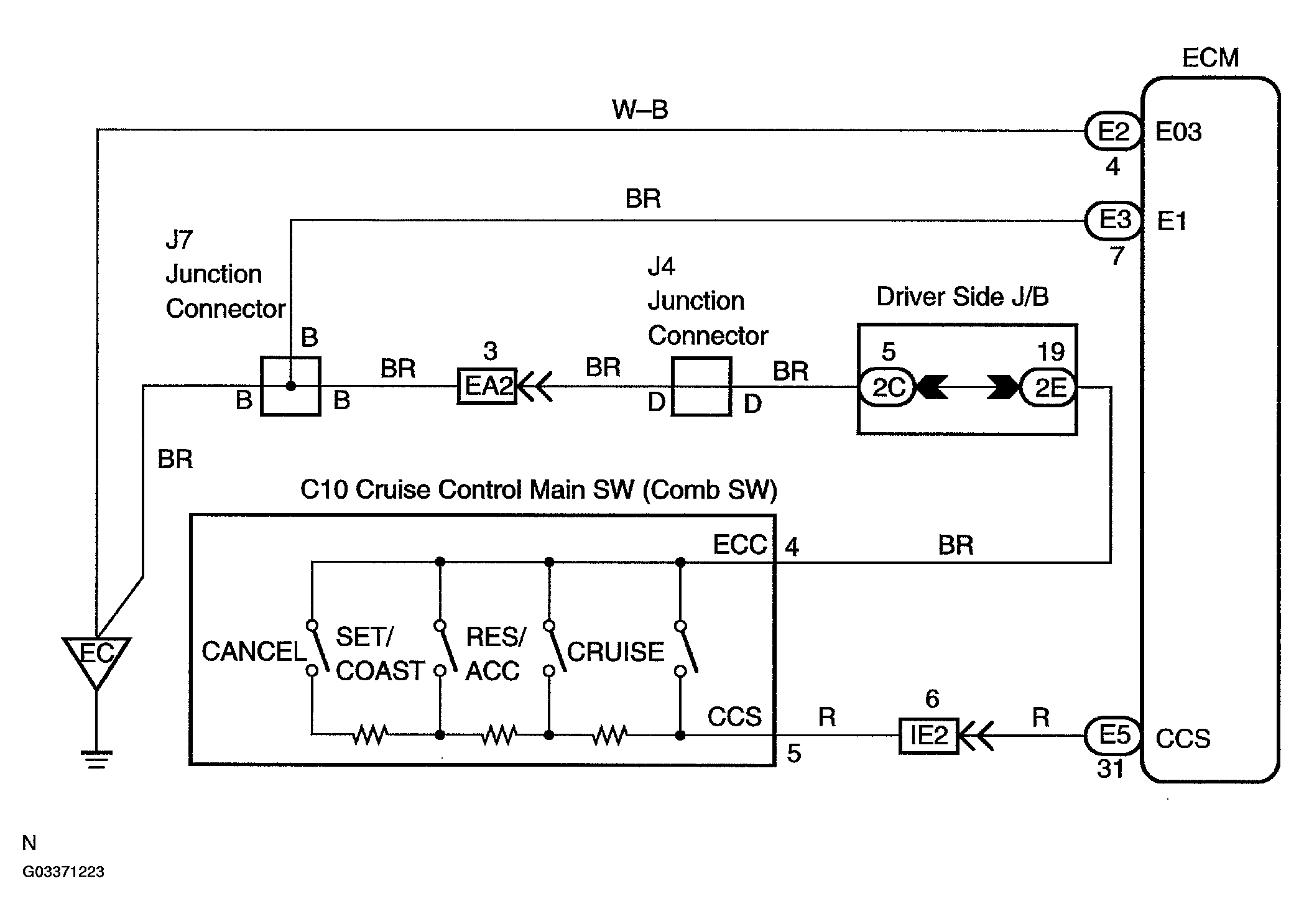

Fig 1: Cruise Control Switch Circuit Wiring Diagram

G03371223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
