Front No. 1 Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

  1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH(See  OVERHAUL  )
  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH(See  OVERHAUL  )
  3. REMOVE FRONT ARMREST ASSY LH(See  OVERHAUL  )
  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH(See  OVERHAUL  )
  5. REMOVE FRONT NO. 1 SPEAKER ASSY
    1. Disconnect the connector.
    2. Remove the 4 screws and front No. 1 speaker assy.

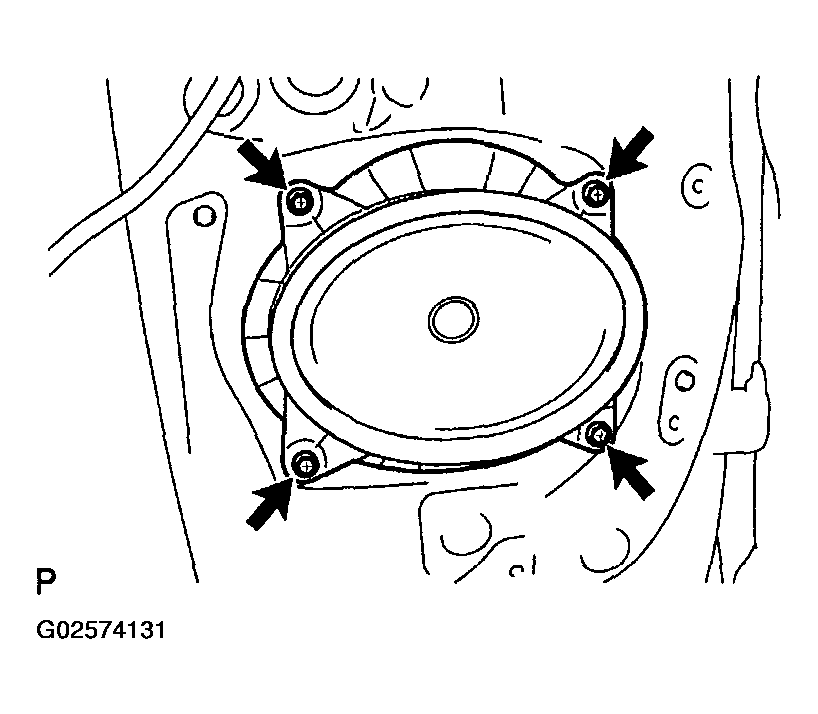

    Fig 1: Removing Screws And Front No. 1 Speaker Assy
    G02574131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT NO. 1 SPEAKER ASSY
    1. Install the front No. 1 speaker assy with the 4 screws.
      NOTE: Install them in the order shown in the illustration.
    2. Connect the connector.

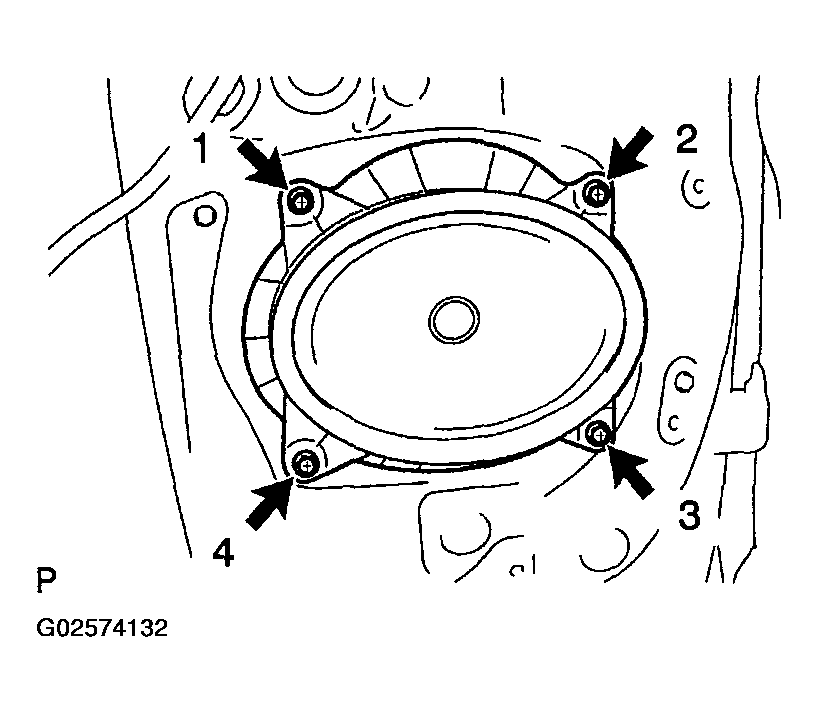

    Fig 2: Installing Front No. 1 Speaker Assy
    G02574132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
