Antenna Cord Sub-ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY(See REPLACEMENT )
HINT:

Refer to the instructions for removal of the instrument panel sub-assy.
REMOVE ANTENNA CORD SUB-ASSY
1. Remove the 4 clamps and antenna cord sub-assy.

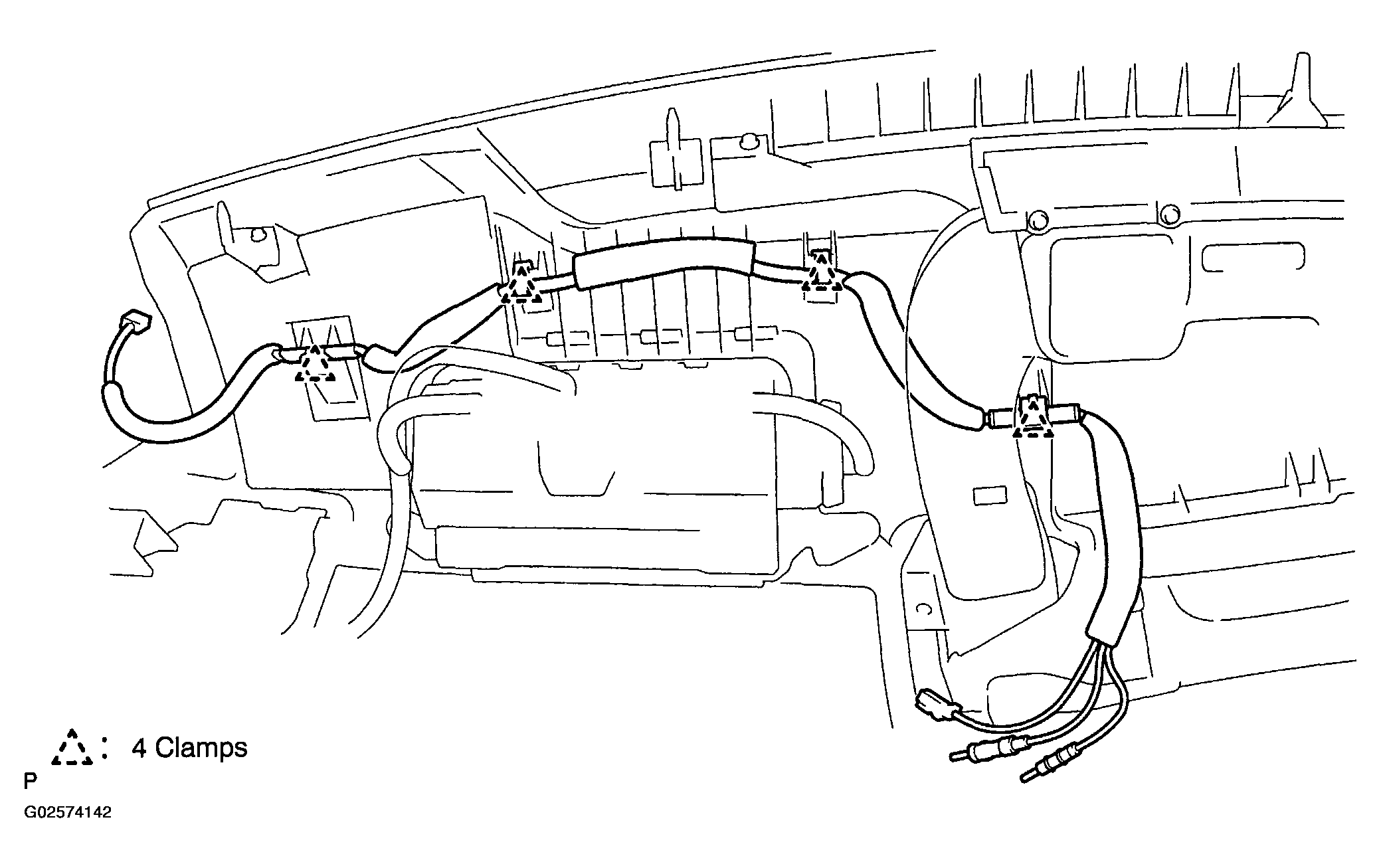

Fig 1: Removing Clamps And Antenna Cord Sub-Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY(See OVERHAUL )
