Amplifier Antenna ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE SUN ROOF OR REMOVABLE ROOF HEADLINING ASSY(See REPLACEMENT )
HINT:

Refer to the instructions for removal of the sun roof or removable roof headlining assy.
REMOVE AMPLIFIER ANTENNA ASSY
1. Disconnect the connectors and remove the 2 bolts.
2. Remove the 17 clamps and amplifier antenna assy.

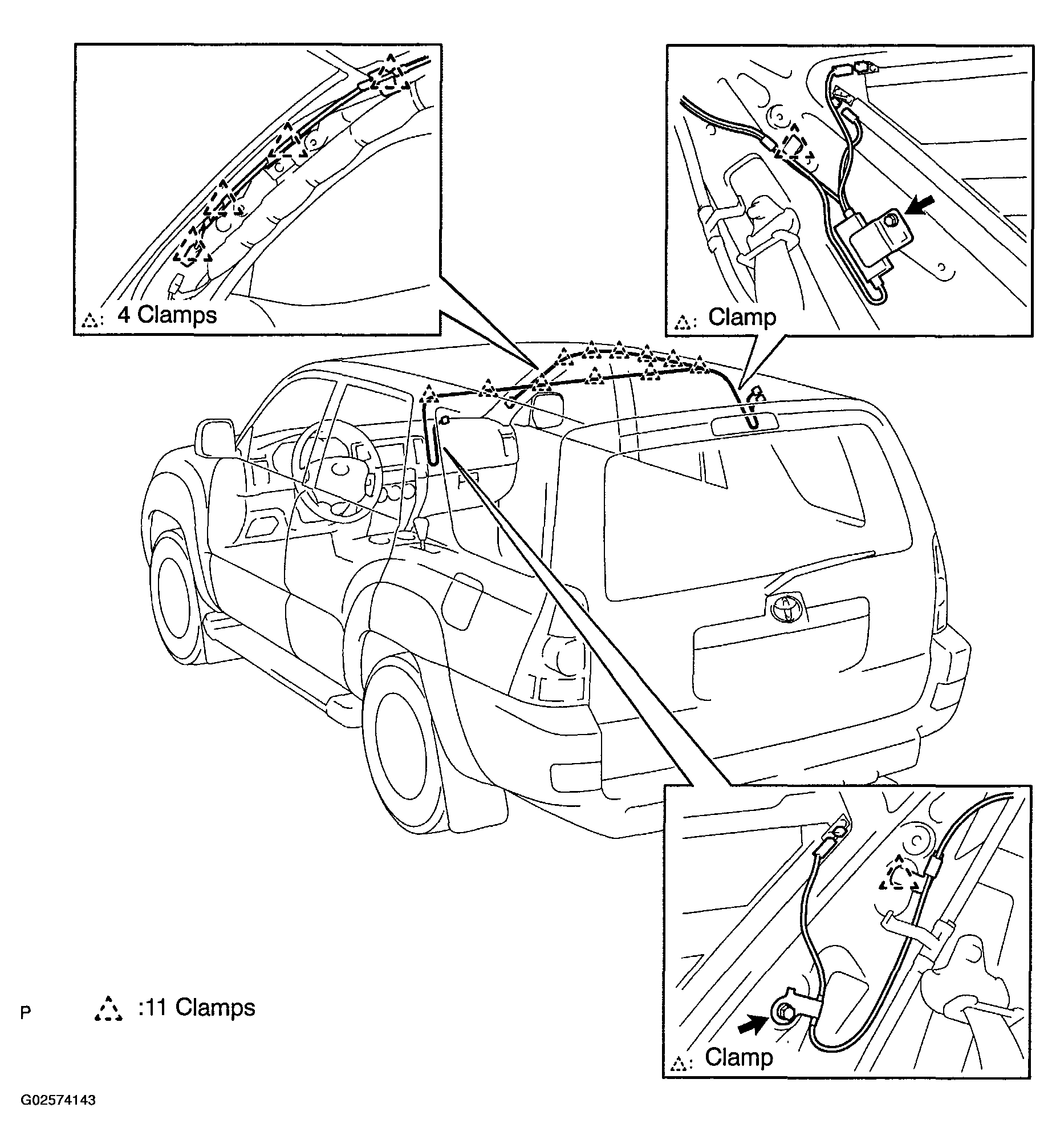

Fig 1: Removing Clamps And Amplifier Antenna Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SUN ROOF OR REMOVABLE ROOF HEADLINING ASSY(See REPLACEMENT )
