Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

Perform Active Test of hand-held tester.
PREPARATION:

Connect the hand-held tester to the DLC3.

CHECK:

Check the cruise indicator of the combination meter using Active Test.

OK:

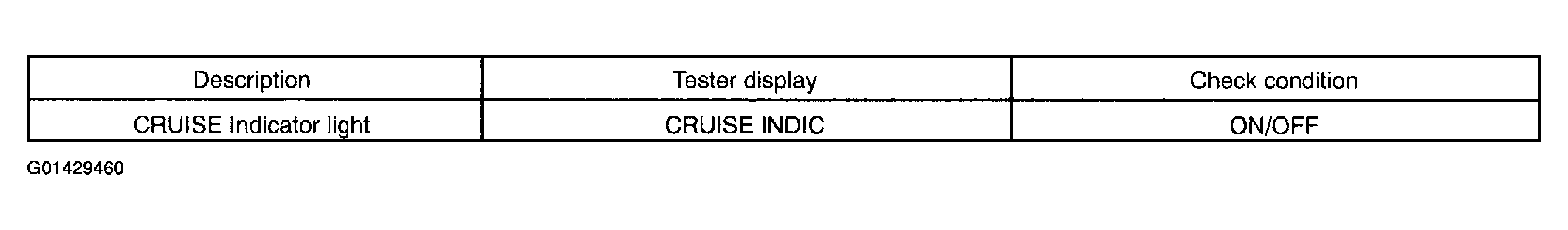

Fig 1: Description Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Proceed to next circuit Inspection shown on problem symptom table (See PROBLEM SYMPTOMS TABLE ).
2. NG: Check and replace combination meter. (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
