When using hand-held tester:
WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
- READ VALUE OF HAND-HELD TESTER (COURTESY LAMP SWITCH)
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the item "D DOR CTY SW" in the DATA LIST and read its value displayed on the hand-held tester.
Standard:
ON: Driver side door is open
OFF: Driver side door is closed
OK: Go To Step 4
NG: Go To Next Step
- INSPECT COURTESY LAMP SWITCH (DRIVER SIDE)
- Remove the courtesy lamp switch.

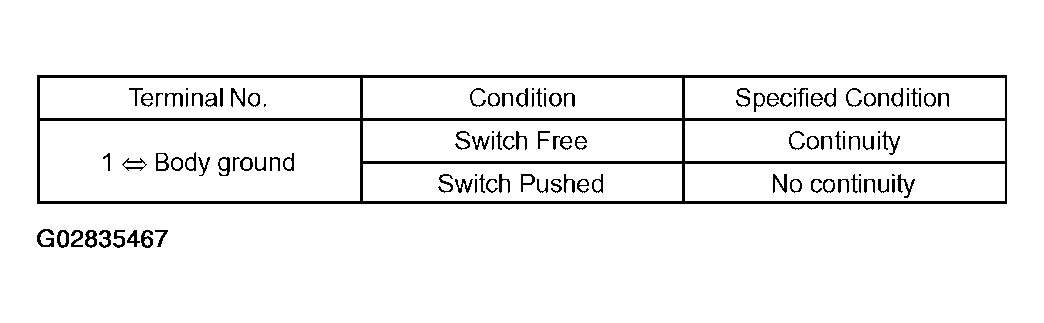

- Check the switch continuity.
NG: REPLACE COURTESY LAMP SWITCH
OK: Go To Next Step
- CHECK WIRE HARNESS (BODY ECU <=> COURTESY LAMP SWITCH)

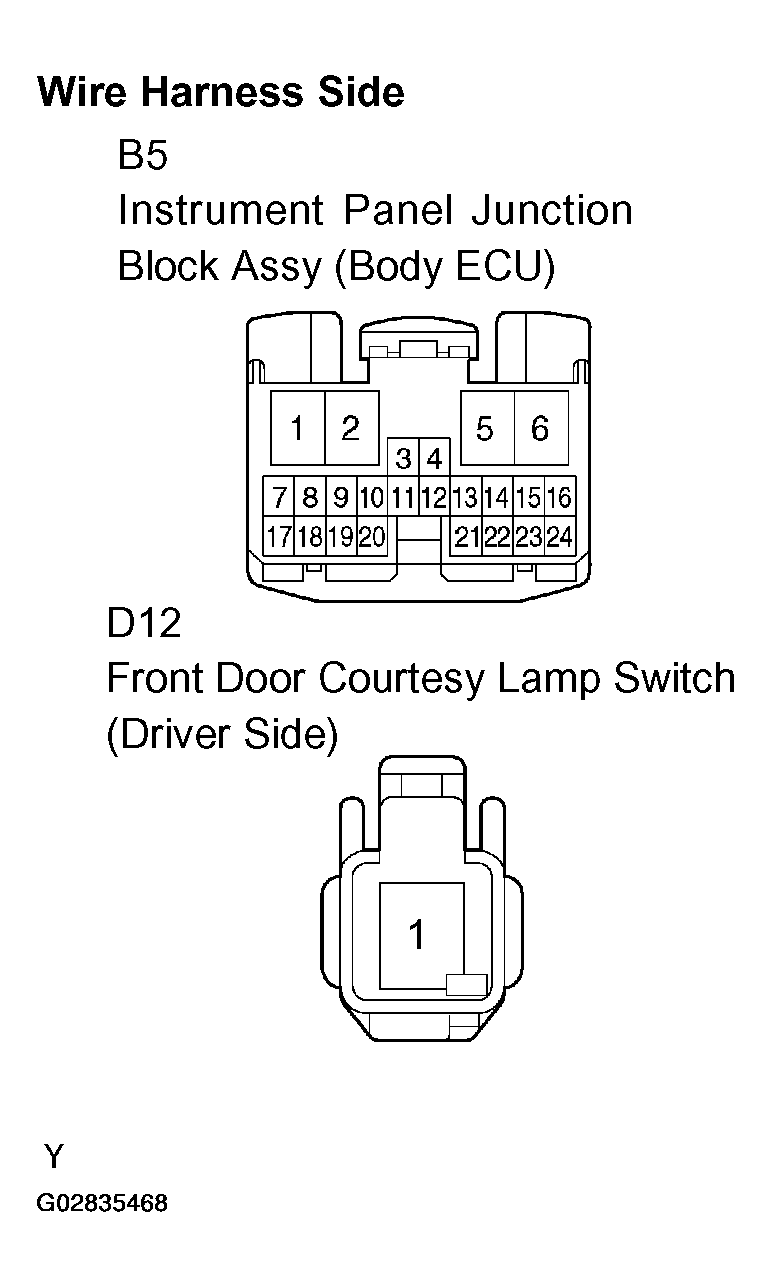

- Disconnect the D12 door courtesy lamp switch (driver side) and B5 ECU connectors.
- Check the continuity between the wire harness side connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STANDARDSymbols (Terminal No.) Specified Condition DCTY (B5-23)<=> (D12-1) Continuity NG: REPAIR OR REPLACE WIRE HARNESS
OK: Go To Next Step
- CHECK BUZZER (COMBINATION METER) See PROBLEM SYMPTOMS TABLE
NG: GO TO COMBINATION METER SYSTEM See PROBLEM SYMPTOMS TABLE
OK: Go To Next Step
- READ VALUE OF HAND-HELD TESTER (KEY UN-LOCK WARNING SW)
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the item "KEY UNLK WRN SW" in the DATA LIST and read its value displayed on the hand-held tester.
Standard:
ON: The key is in the ignition key cylinder
OFF: No key is in the ignition key cylinder
OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
NG: Go To Next Step
- INSPECT UN-LOCK WARNING SWITCH ASSY
- Remove the un-lock warning switch.

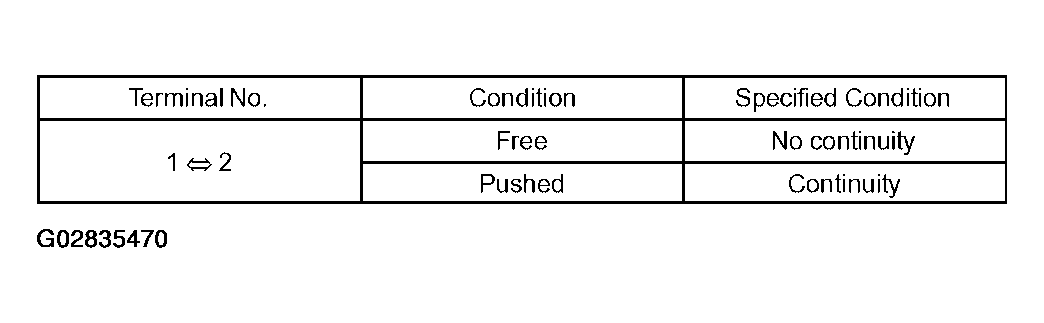

- Check the switch continuity.
NG: REPLACE UN-LOCK WARNING SWITCH ASSY
OK: Go To Next Step
- CHECK WIRE HARNESS (BODY ECU <=> UN-LOCK WARNING SWITCH ASSY) (UN-LOCK WARNING SWITCH <=> BODY GROUND)

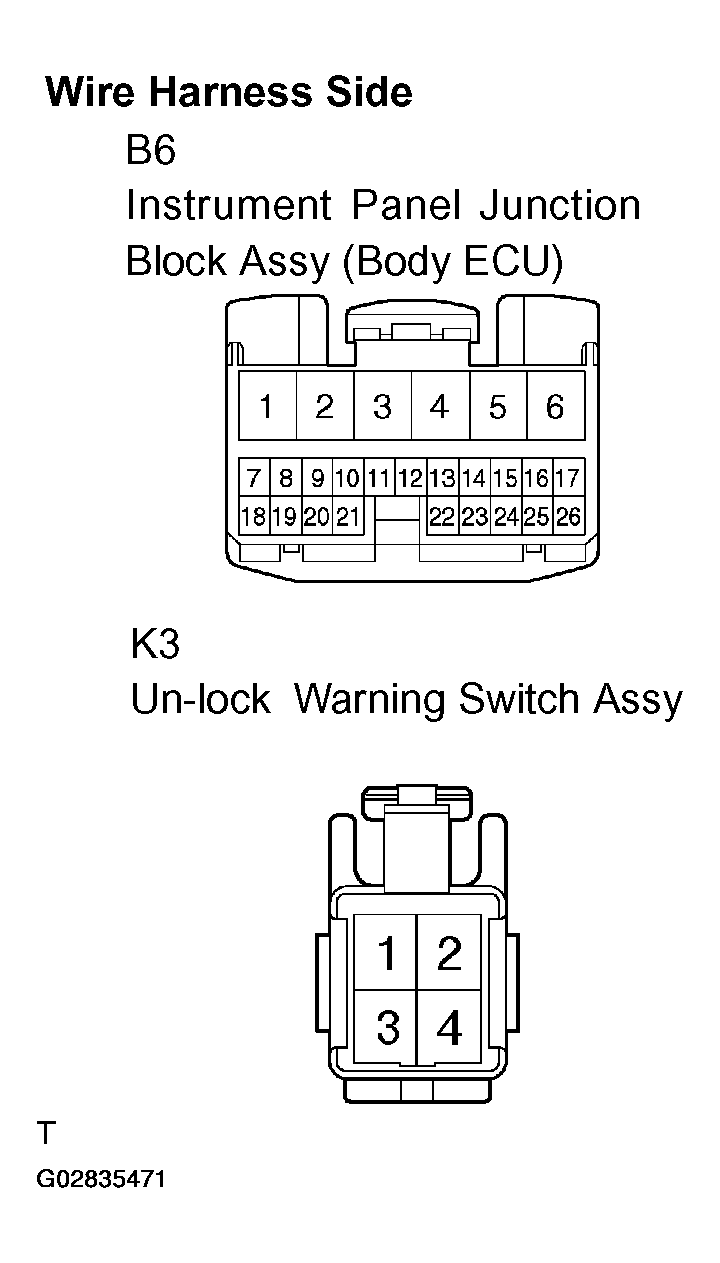

- Disconnect the B6 ECU connector.
- Disconnect the K3 warning switch connector.
- Check the continuity between the wire harness side connectors.STANDARD
Symbols (Terminal No.) Specified Condition KSW (B6-14)<=> (K3-2) continuity - Check the continuity between the K3 warning switch connector and body ground.
STANDARDSymbols (Terminal No.) Specified Condition K3-1 <=> Body ground continuity NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
