Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM ACTIVE TEST BY HAND-HELD TESTER

Select the active test, and then check that the power door lock operates.

HINT:

During the active test, the hand-held tester sends signal to the body ECU to drive all the power door lock motor. If the all power door lock operates, the power door lock motor itself and the wire harness between the power door lock motor and body ECU is considered normal.

STANDARD (BODY ECU)

Item	Test Details	Diagnostic Note
DOOR LOCK	Drive door lock motor at all doors LOCK/OFF	-
DOOR LOCK	Drive door lock motor at all doors UNLOCK/OFF	-

NG: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY

OK: Go To Next Step

MASTER SWITCH OR KEY CYLINDER OPERATION
1. When manual door lock/unlock operation via the master switch can not be performed, proceed to A.
2. When manual door lock/unlock operation via the door lock control switch (passenger side) can not be performed, proceed to B.
3. When manual door lock/unlock operation interlocked with the driver side door lock key cylinder can not be performed, proceed to C.
B: Go to step 4

C: Go to step 5

A: Go To Next Step
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
1. Remove the master switch.
2. Inspect the door lock control switch continuity.

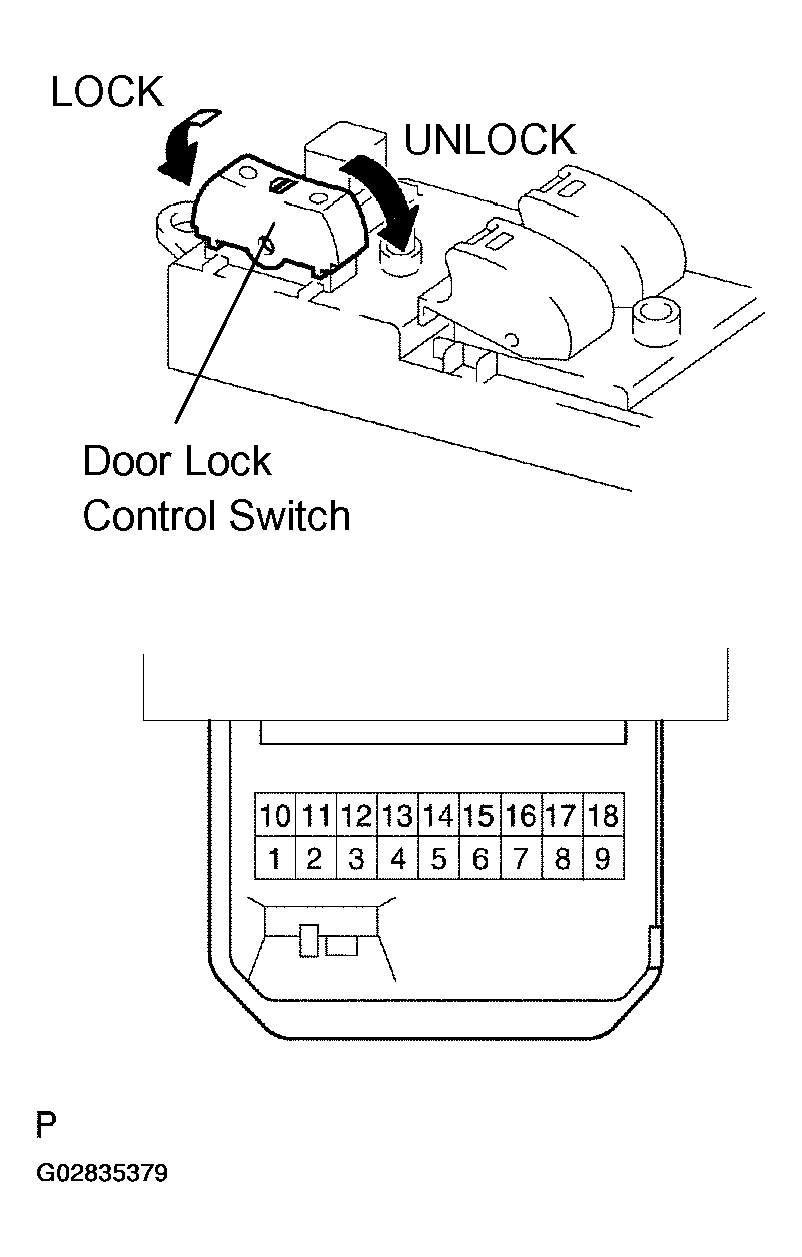

Fig 1: Inspecting Power Window Regulator Master Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: STANDARD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSY <=> DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU))
INSPECT DOOR CONTROL SWITCH ASSY
1. Passenger side switch:
Inspect the door lock control switch continuity.

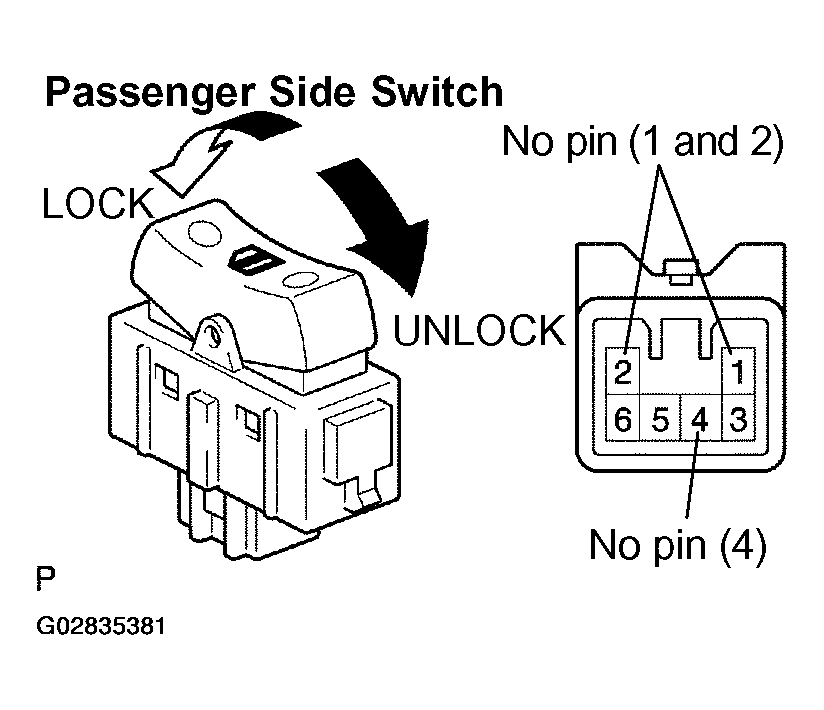

Fig 3: Inspecting Door Control Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: STANDARD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE DOOR CONTROL SWITCH ASSY

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (DOOR LOCK CONTROL SWITCH ASSY DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU))
INSPECT FRONT DOOR W/MOTOR LOCK ASSY LH
1. Apply battery voltage and inspect operation of the door lock motor.

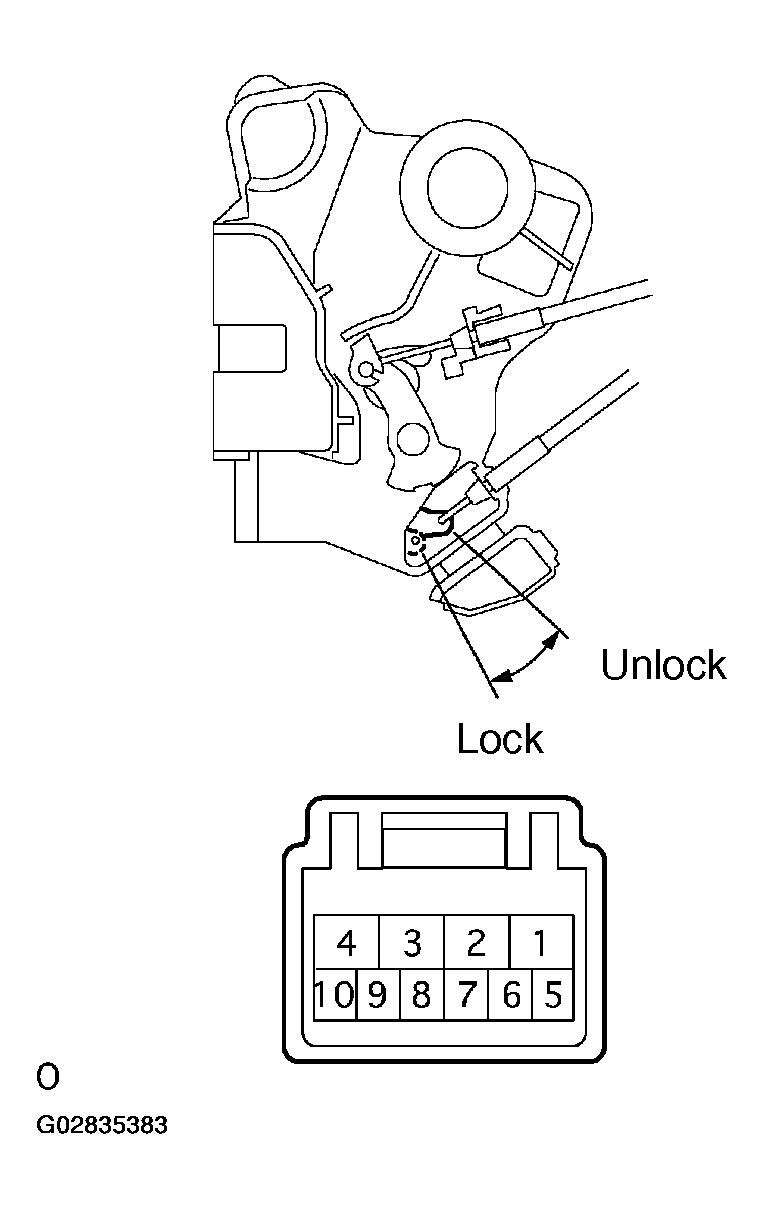

  Fig 5: Inspecting Front Door W/Motor Lock Assy LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: STANDARD
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the door lock and unlock switch continuity.

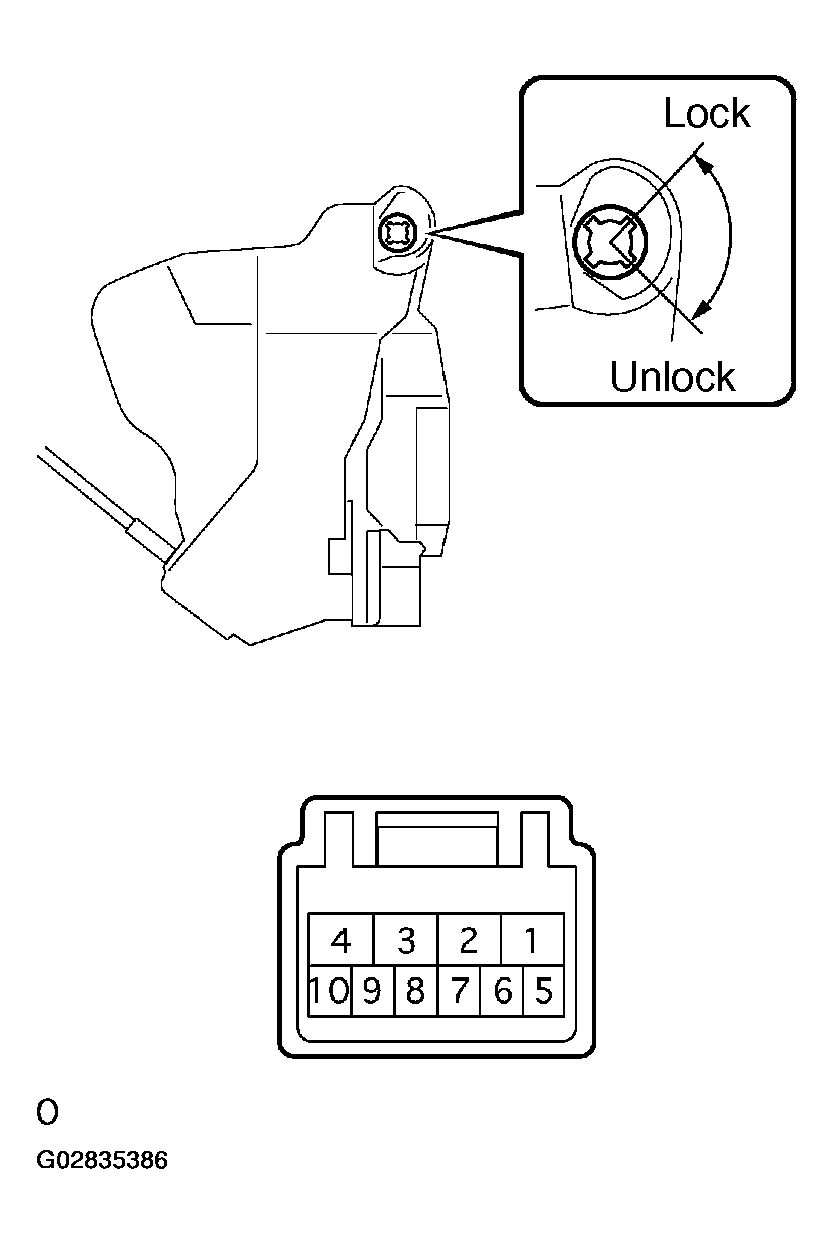

  Fig 7: Inspecting Door Lock And Unlock Switch Continuity
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 8: STANDARD
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspect the position switch continuity.

  Fig 9: STANDARD
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE FRONT DOOR W/MOTOR LOCK/ASSY LH

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (FRONT DOOR LOCK W/MOTOR LOCK ASSY LH <=> DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU))
