Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT AIR CONDITIONING AMPLIFIER (TR, SG)
    1. Remove the A/C amplifier with the connectors being connected.
    2. Turn ignition switch to ON.
    3. Measure voltage between terminal TR and SG of the A/C amplifier connector at each temperature.

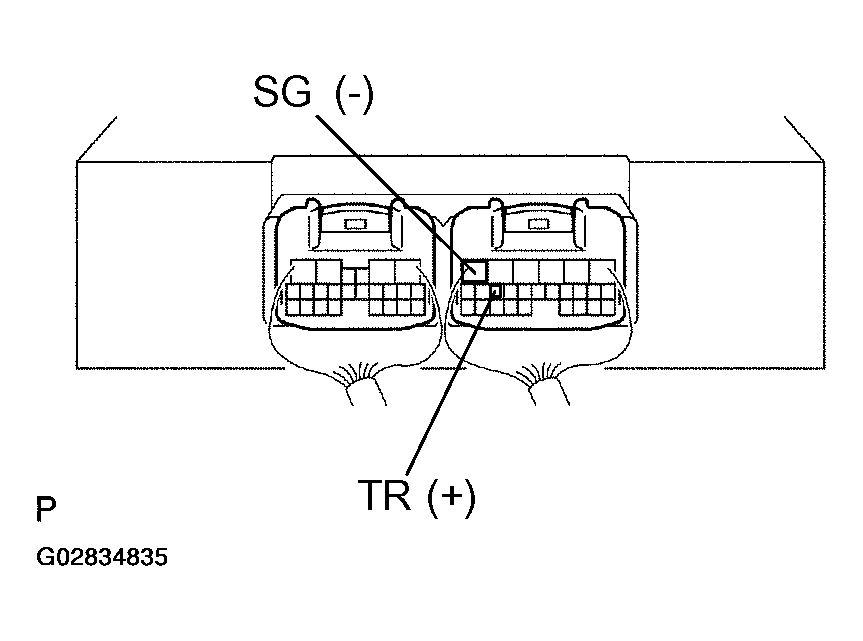

      Fig 1: Inspecting Air Conditioning Amplifier (TR, SG)
      G02834835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Voltage:

      at 25°C (77°F): 1.8-2.2 V

      at 40°C (104°F): 1.2-1.6 V

    HINT:

    As the temperature increases, the voltage decreases.

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE  , refer to PROBLEM SYMPTOMS TABLE

    NG: Go To Next Step.

  2. INSPECT COOLER THERMISTOR
    1. Remove the cooler thermistor (room temp, sensor).
    2. Measure resistance between terminals of the cooler thermistor (Room temp, sensor) connector at each temperature.

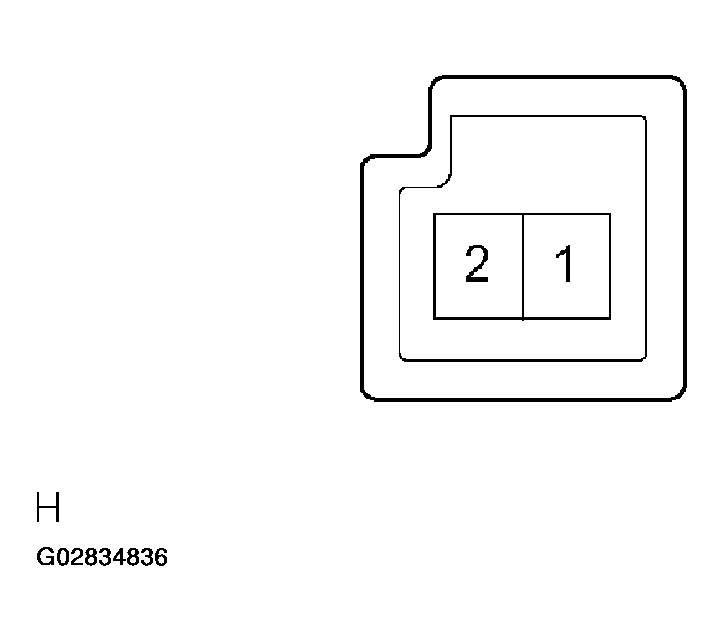

      Fig 2: Inspecting Cooler Thermistor
      G02834836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Resistance:

      at 25°C (77°F): 1.65-1.75 kΩ

      at 40°C (104°F): 0.55-0.65 kΩ

    HINT:

    As the temperature increases, the resistance decreases, as shown in the illustration.

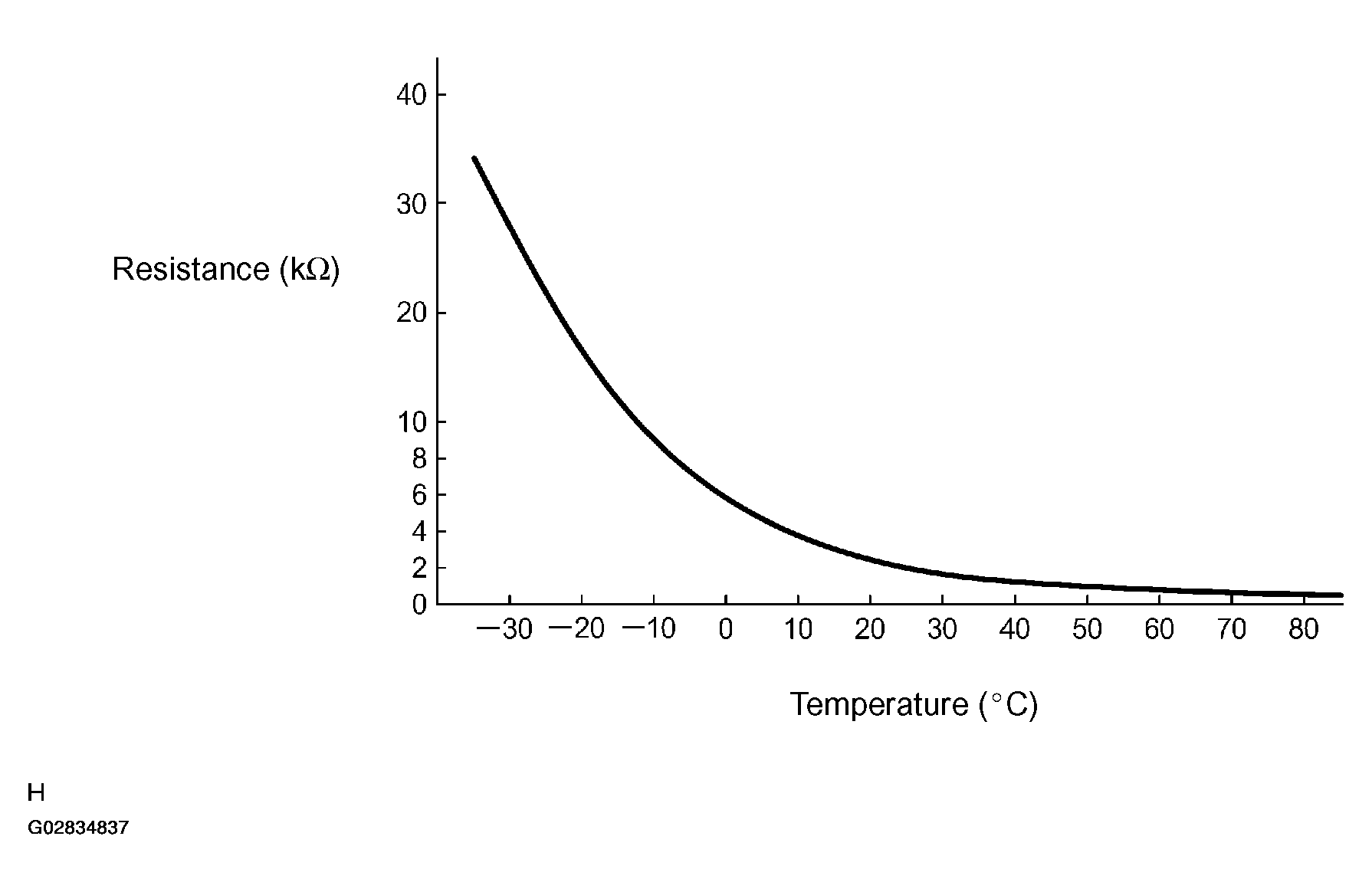

    Fig 3: Cooler Thermistor Temperature Vs Resistance Graph
    G02834837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE COOLER THERMISTOR

    OK: Go To Next Step.

  3. CHECK HARNESS AND CONNECTOR (BETWEEN COOLER THERMISTOR (ROOM TEMP. SENSOR) AND AIR CONDITIONING AMPLIFIER)
    1. Check for open and short circuit in the harness and the connector between the cooler thermistor (room temp, sensor) and the A/C amplifier (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go To Next Step.

  4. CHECK DIAGNOSTIC TROUBLE CODE
    1. Start up the DTC check mode.
    2. Check that DTC 11 is not output again

      Standard: DTC 11 is not output.

    OK: SYSTEM OK

    NG: CHECK AND REPLACE AIR CONDITIONING AMPLIFIER
