Circuit Description

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the temperature inside the cabin and sends appropriate signals to the A/C amplifier.

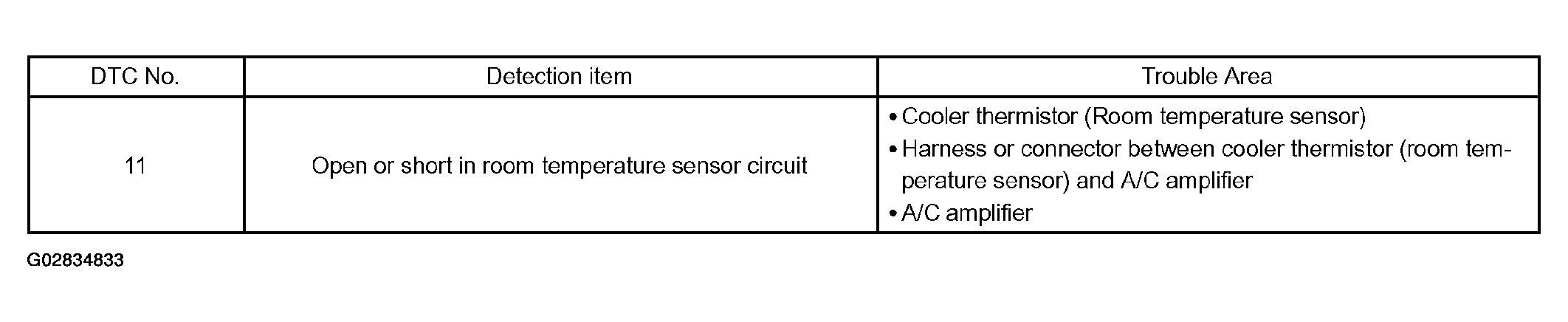

Fig 1: DTC Trouble Detection Table
G02834833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
