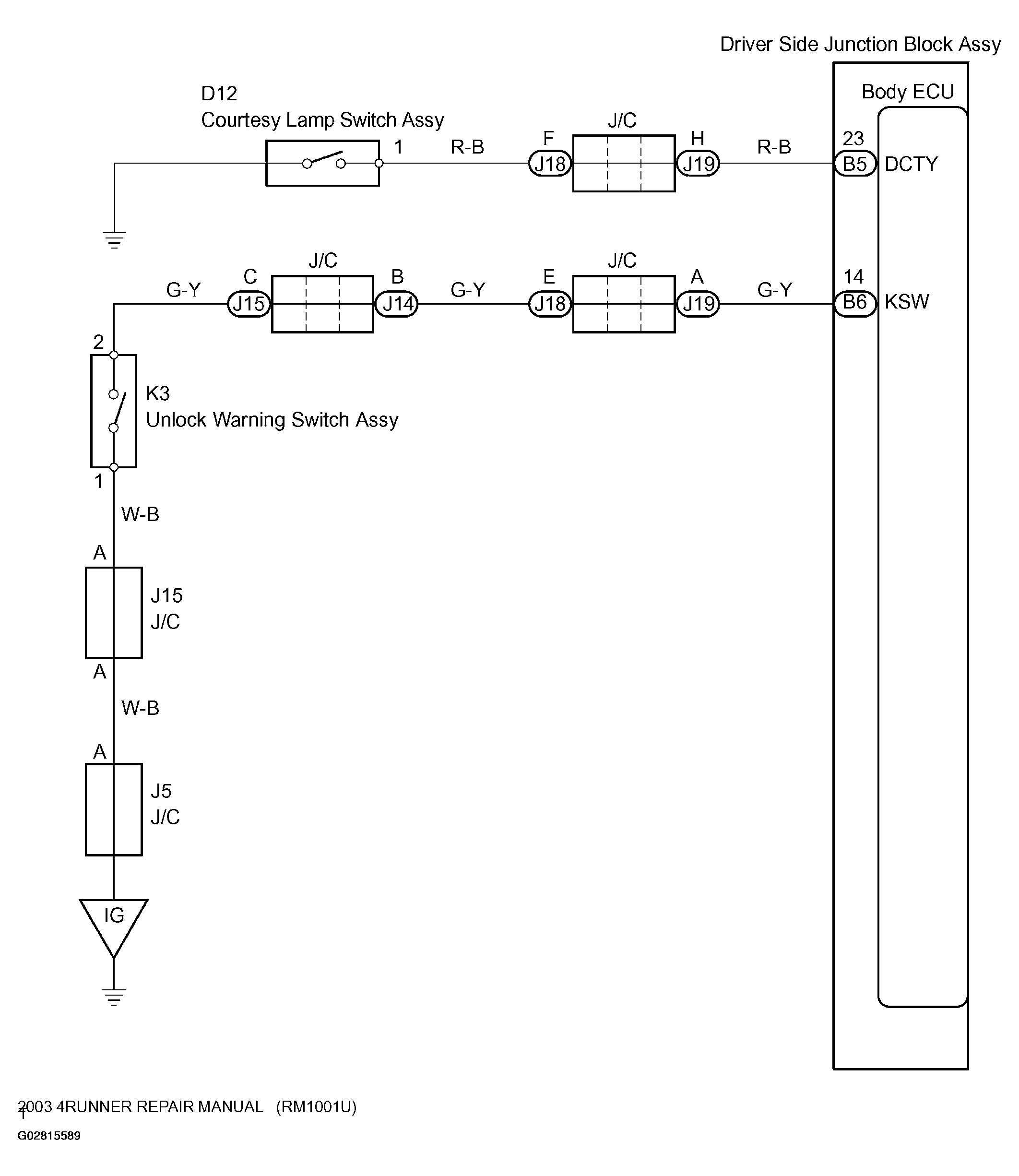

Key Lock-In Prevention Function Does Not Work Properly (Manual Operation And Operation Interlocked With Key Are Active): Wiring Diagram

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
